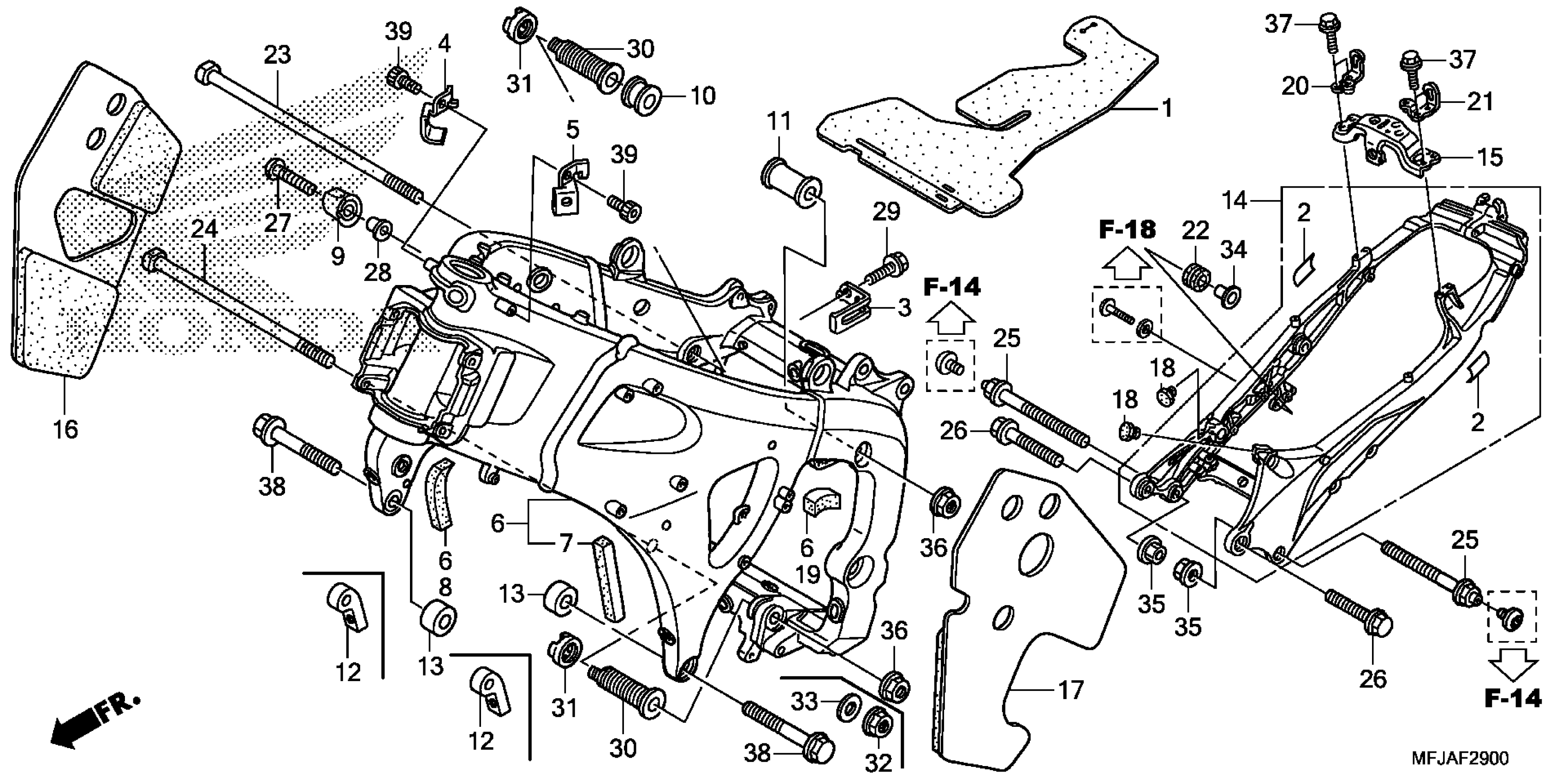

Honda CBR600RR3AC (12) MOTORCYCLE, JPN, VIN# JH2PC406-CK500001 FRAME Diagram

MAT, ENGINE GUARD RUBBER

17285-MFJ-A01

$48.90

PROTECTOR

17518-MY9-690

$3.02

CLAMP, EX. VALVE CABLE

18931-MFJ-L00

$5.41

CLAMP, R. WIRE PROTECTOR

35107-MFJ-D00

$6.90

CLAMP, L. WIRE PROTECTOR

35108-MFJ-D00

$6.90

FRAME SET *NH460M* (OMEGA SILVER METALLIC)

50010-MFJ-A40ZB

$2,097.20

MAT, L. ENGINE HANGER

50131-MFJ-D00

$1.90

MAT, R. ENGINE HANGER

50134-MFJ-J00

$1.80

GUARD, WATER PIPE

50141-MFJ-D00

$5.90

COLLAR C, R. ENGINE HANGER

50192-MFJ-D00

$7.87

COLLAR C, L. ENGINE HANGER

50193-MFJ-D00

$12.34

COLLAR A, ENGINE HANGER

50194-MFJ-D00

$4.53

RAIL ASSY., SEAT

50200-MFJ-A40

$572.31

PLATE, CENTER CROSS

50204-MFJ-D00

$31.28

MAT, R. FRAME GUARD

50315-MFJ-D00

$26.92

MAT, L. FRAME GUARD

50325-MFJ-D00

$26.92

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

GUIDE, R. HOOK

77105-MFJ-D00

$6.59

GUIDE, L. HOOK

77106-MFJ-D00

$6.59

RUBBER A, MOUNTING

80119-MEL-000

$2.51

BOLT, SPECIAL (12X288)

90101-MFJ-D00

$20.06

BOLT, SPECIAL (12X220)

90103-MFJ-A40

$14.38

BOLT, FLANGE (10X45)

90112-MFJ-D00

$5.58

BOLT, FLANGE (10X32) (DR)

90113-MFJ-D00

$2.67

SCREW, PAN (6X20)

90118-MEJ-J00

$2.13

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.40

BOLT (8X18)

90123-MEN-730

$1.97

BOLT, ADJUSTING (20X48.5)

90152-MFJ-D00

$15.59

NUT, LOCK (20MM) (P=1.0)

90303-MFJ-D00

$7.23

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

BOLT, FLANGE (12X60)

96400-12060-00

$2.92

BOLT, SOCKET (6X10)

96600-06010-07

$1.49

BOLT, SOCKET (6X10) This part replaces 96700-06010-07.

96600-06010-07

$1.49
