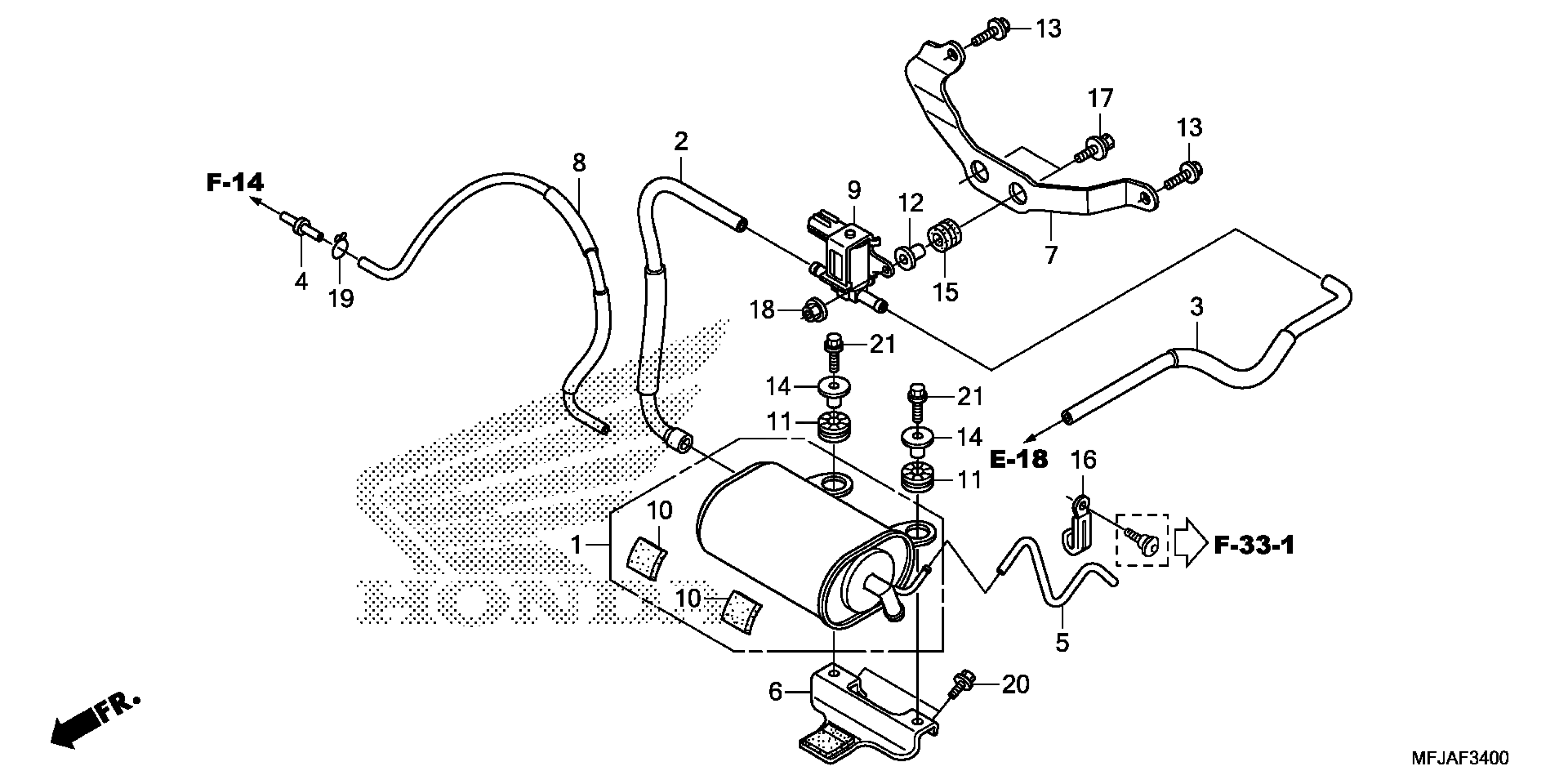

Honda CBR600RR3AC (12) MOTORCYCLE, JPN, VIN# JH2PC406-CK500001 EVAP CANISTER (CBR600RR) Diagram

EVAPORATIVE EMISSION CANISTER

17410-MFJ-L00

$268.37

TUBE, CANISTER-PURGE CONTROL VALVE

17412-MFJ-L00

$10.44

TUBE, FIVE WAY-PURGE CONTROL VALVE

17413-MFJ-L00

$10.24

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$9.28

TUBE, CANISTER DRAIN

17434-MFJ-L00

$4.74

STAY, CANISTER

17440-MFJ-L00

$16.04

STAY, PCS

17445-MFJ-L00

$16.04

TUBE (CANISTER-2WAY)

17556-MFJ-L10

$14.13

VALVE, PURGE CONTROL SOLENOID

36162-PLC-003

$74.07

RUBBER, BATTERY

50328-HP1-600

$1.50

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

BOLT (8X18)

90123-MEN-730

$1.82

COLLAR (6.2X13)

90501-MA3-720

$4.58

RUBBER, CONTROL BOX

90852-898-000

Unavailable

CLIP (2X60)

91410-679-000

$9.27

BOLT-WASHER (5X20)

93404-05020-08

$1.49

NUT, FLANGE (5MM)

94050-05080

$0.34

CLIP, TUBE (B8)

95002-02080

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.50

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
