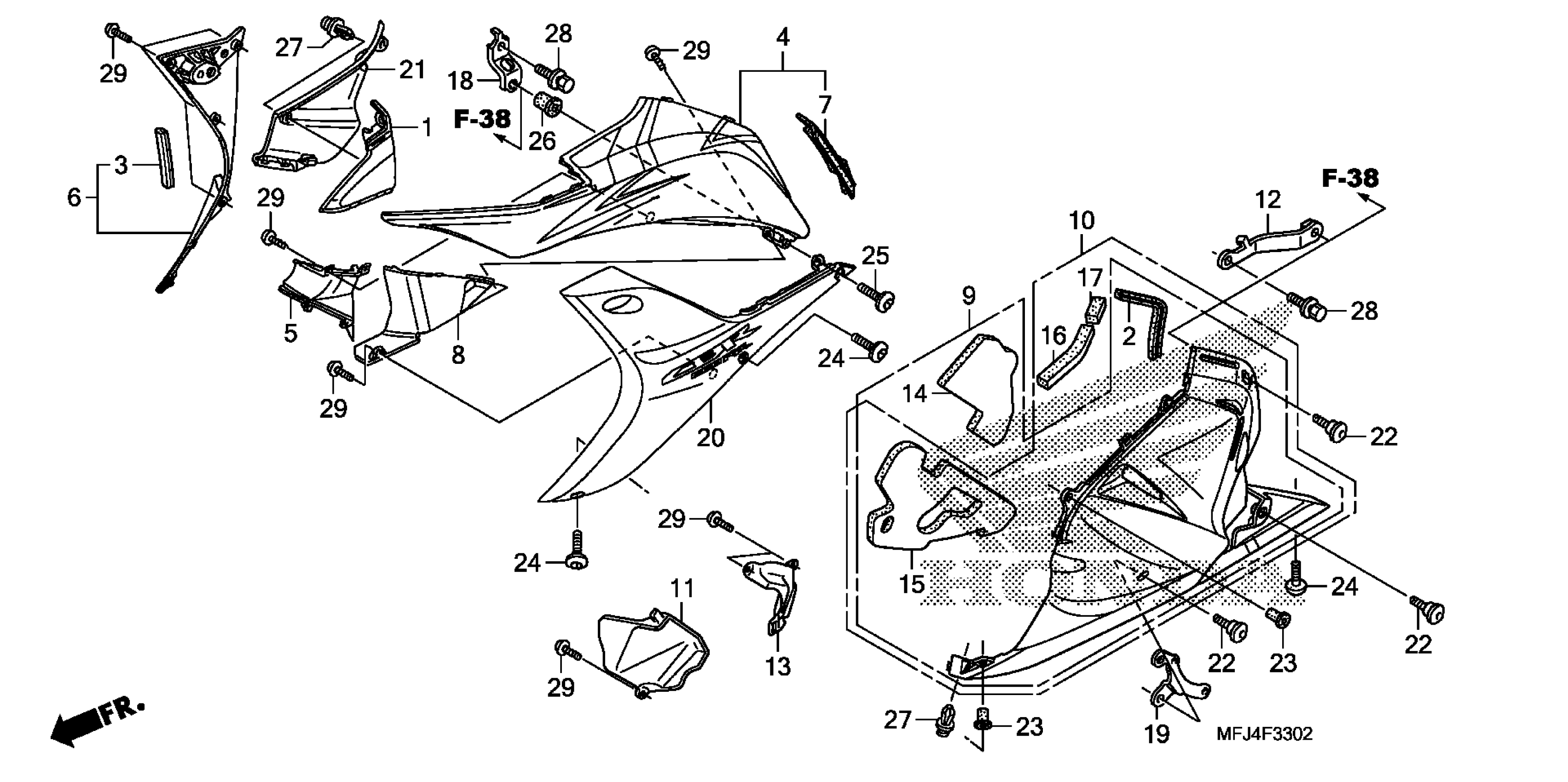

Honda CBR600RR3AC (11) MOTORCYCLE, JPN, VIN# JH2PC406-BK400001 LOWER COWL (L.) (2) Diagram

#

Description
Price

1

COVER, L. HEADLIGHT

64240-MFJ-D00

$7.26

2

RUBBER, PROTECTOR

64327-MFJ-A40

$10.48

3

RUBBER, PROTECTOR

64327-MFJ-D00

$3.16

4

COWL SET, L. MIDDLE A (TYPE2) (WL) | Victory red R334;

64350-MFJ-N70ZA

$406.74

5

COVER A, L. MIDDLE

64365-MFJ-D00

$5.91

6

COWL, L. MIDDLE (INNER)

64375-MFJ-D00

$13.71

7

RUBBER, L. MIDDLE COWL

64380-MFJ-A40

$16.58

8

COVER B, L. MIDDLE

64385-MFJ-D00

$10.18

9

COWL ASSY., L. (LOWER) *NHB01* (GRAPHITE BLACK) ('10 COLOR LABEL NHB01KB)

64450-MFJ-A40ZA

$368.10

11

DUCT, L. COWL (LOWER) (INNER) (FR)

64461-MFJ-A40

$8.43

12

STAY, L. COWL (LOWER/UPPER)

64462-MFJ-A40

$5.43

13

DUCT, L. COWL (LOWER) (INNER) (RR)

64463-MFJ-A40

$6.33

14

MAT A, L. COWL (LOWER)

64465-MFJ-A40

Unavailable

15

MAT B, L. COWL (LOWER)

64466-MFJ-A40

Unavailable

18

STAY, MIDDLE COWL

64512-MFJ-A40

$4.67

19

STAY, L. COWL (LOWER)

64515-MFJ-A40

$4.54

20

COWL SET, L. MIDDLE B (TYPE2) (WL) | Victory red R334;

64550-MFJ-N50ZB

$268.77

21

COWL, L. (UPPER) (INNER)

64590-MFJ-D01

$5.70

22

SCREW, PAN (6X11)

90106-KY2-701

$3.95

23

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

24

SCREW, PAN (5X15)

90113-MCJ-000

$2.03

25

SCREW, PAN (5X25)

90120-MFJ-A40

$2.01

26

NUT, WELL (5MM)

90156-GZ4-670

$4.54

27

CLIP, BODY COVER

90683-GR1-003

$2.71

28

BOLT-WASHER (6X14)

93401-06014-00

$1.48

29

SCREW, TAPPING (4X10)

93903-24280

$1.23
