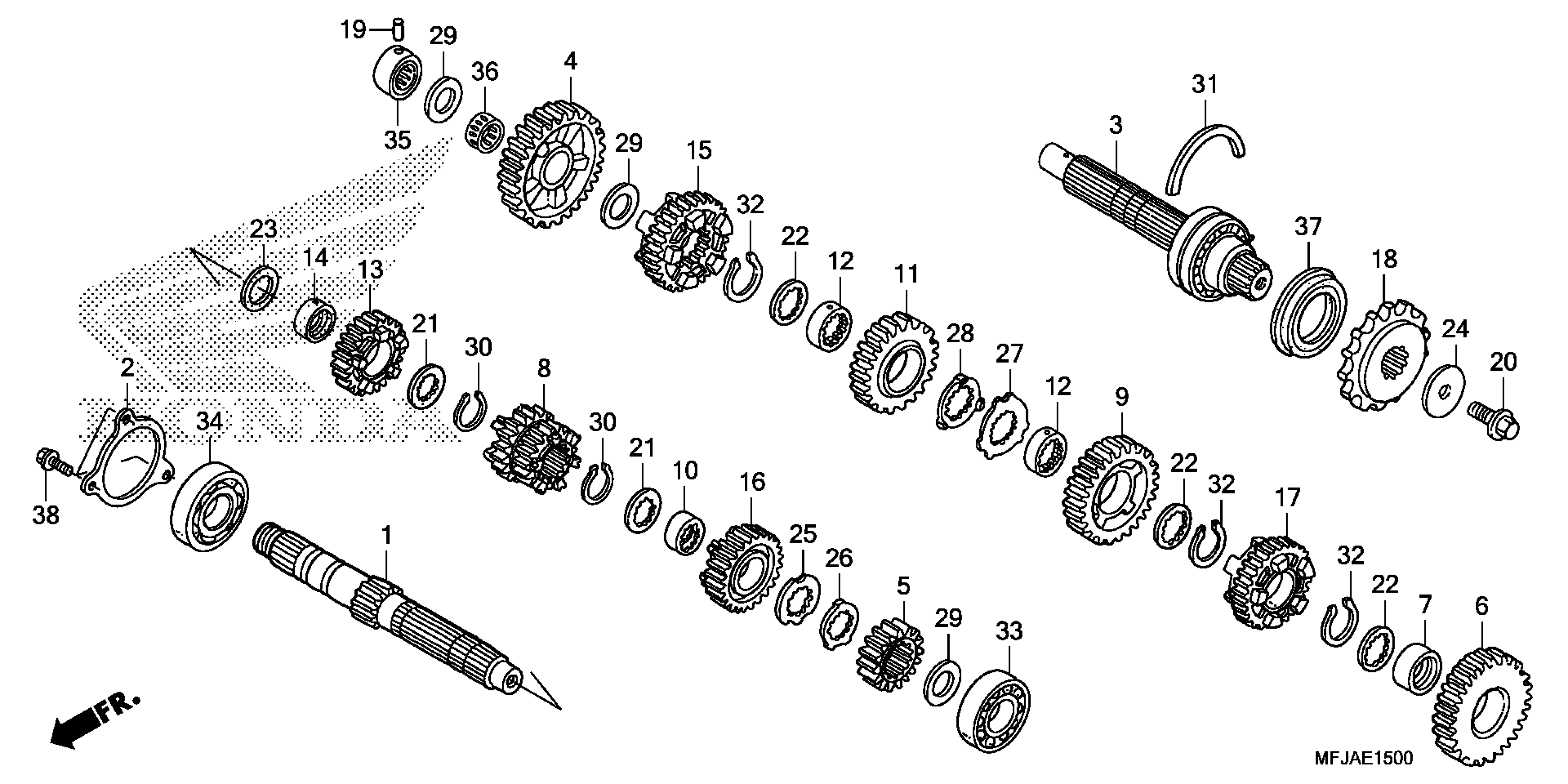

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 TRANSMISSION Diagram

MAINSHAFT (12T)

23211-MFJ-D00

$173.66

PLATE, BEARING SETTING

23212-MFJ-D00

$12.02

COUNTERSHAFT

23220-MFJ-A40

$183.31

GEAR, COUNTERSHAFT FIRST (33T)

23421-MFJ-D00

$121.69

GEAR, MAINSHAFT SECOND (16T)

23431-MFJ-D00

$59.49

GEAR, COUNTERSHAFT SECOND (32T)

23441-MFJ-D00

$121.69

COLLAR (28MM)

23442-MM4-000

$23.62

GEAR, MAINSHAFT THIRD & FOURTH (18T/18T)

23451-MFJ-D00

$145.38

GEAR, COUNTERSHAFT THIRD (30T)

23461-MFJ-D00

$121.69

COLLAR, SPLINE (25X28X15)

23472-MR1-000

$23.28

GEAR, COUNTERSHAFT FOURTH (26T)

23481-MFJ-D00

$116.03

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$19.18

GEAR, MAINSHAFT FIFTH (23T)

23491-MFJ-D00

$108.23

COLLAR (25X14)

23495-MEE-000

$11.67

GEAR, COUNTERSHAFT FIFTH (30T)

23501-MFJ-D00

$137.36

GEAR, MAINSHAFT SIXTH (24T)

23511-MFJ-D00

$108.23

GEAR, COUNTERSHAFT SIXTH (29T)

23521-MFJ-D00

$131.67

SPROCKET, DRIVE (16T)

23801-MEE-D00

$57.74

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (25MM)

90461-MW0-000

$5.56

WASHER, LOCK (25MM)

90462-MBW-000

$6.84

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.80

CIRCLIP (25MM)

90601-107-000

$3.74

SET-RING (62MM)

90602-ML7-000

$9.05

CIRCLIP (28MM)

90603-MN4-000

$4.11

BEARING, RADIAL BALL (6204U) (TOYO)

91001-464-003

$23.15

BEARING, BALL (6305)

91004-MFJ-D01

$17.26

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

BEARING, NEEDLE (20X24X11)

91026-MN0-003

$27.66

OIL SEAL (40X62X8.4)

91207-MAL-601

$13.51

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
