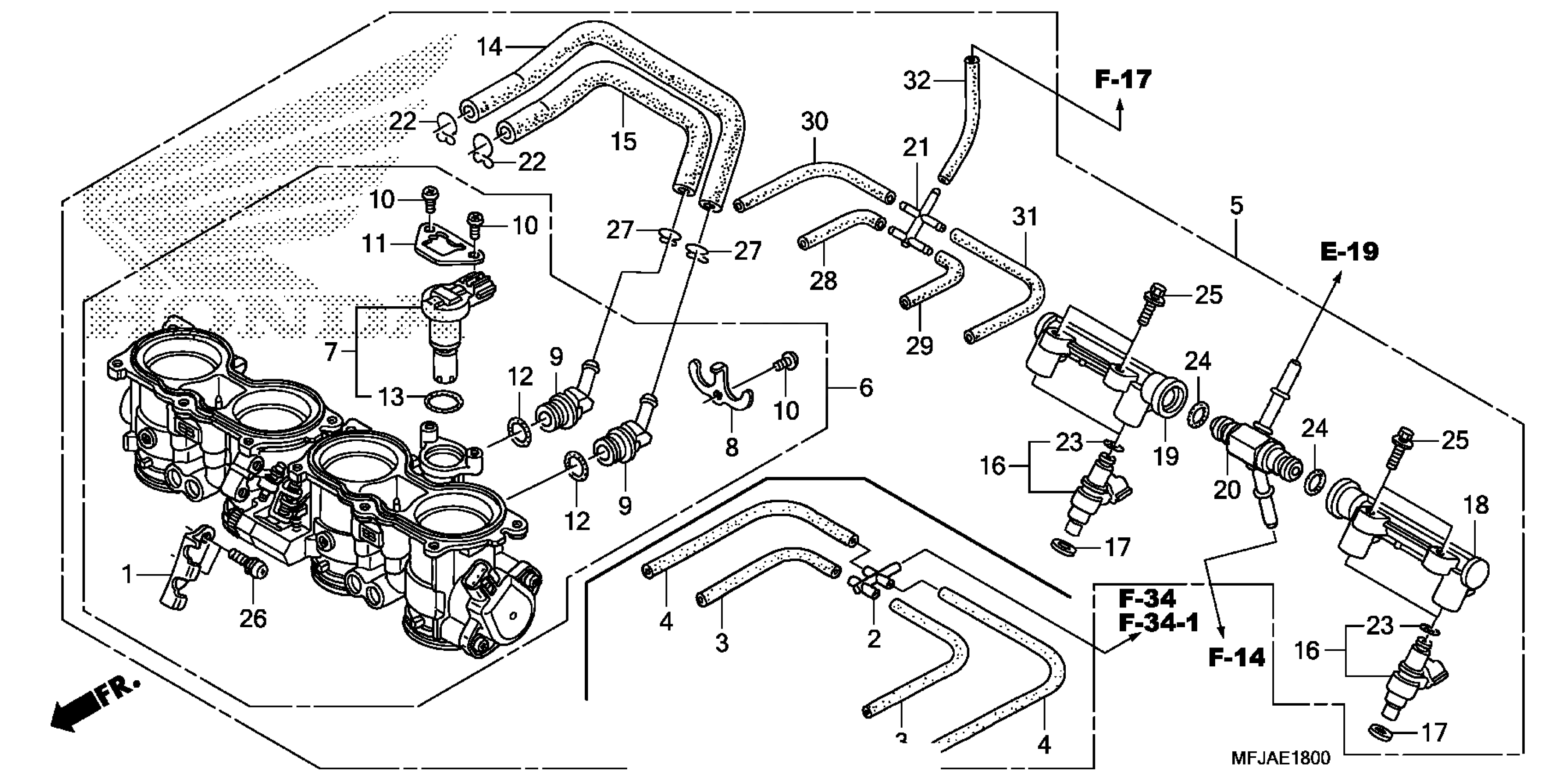

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 THROTTLE BODY Diagram

#

Description
Price

1

STAY, WIRE

16169-MEE-013

$13.36

5

BODY ASSY., THROTTLE (GQ64C A)

16400-MFJ-A01

Unavailable

6

BODY ASSY., THROTTLE

16401-MFJ-A01

$1,148.43

7

MOTOR ASSY.

16430-MFJ-D01

$139.53

8

PLATE, JOINT

16431-MFJ-D01

$7.54

9

JOINT, IDLE AIR CONTROL VALVE

16432-MFJ-D01

$8.41

10

SCREW, TORX

16433-HN8-A61

$0.33

11

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.42

12

O-RING

16434-MFJ-D01

$2.77

13

O-RING (17.8X1.9)

16435-MFJ-D01

$2.77

14

TUBE (A)

16440-MFJ-D01

$11.10

15

TUBE (B)

16441-MFJ-D01

$11.10

16

INJECTOR ASSY., FUEL

16450-MFJ-D01

$168.16

17

SEAL RING, INJECTOR

16472-MCW-000

$2.17

18

PIPE A, FUEL

16610-MFA-D01

$60.87

19

PIPE B, FUEL

16620-MFA-D01

$60.87

20

JOINT, FUEL

16650-MFJ-D01

$67.83

21

JOINT, FIVE-WAY

17201-MCJ-003

$7.73

22

CLIP, TUBE (13.3)

90661-MFL-003

$1.28

23

O-RING (7.8X1.9)

91301-P7A-004

$3.13

24

O-RING (7.47X3.6)

91301-PLC-000

$2.89

25

BOLT-WASHER (5X20)

93401-05020-00

$1.13

26

SCREW-WASHER (5X12)

93892-05012-00

$0.75

26

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$0.75

27

CLIP, TUBE (B12.5) (NOT AVAILABLE)

95002-02139

$1.29

28

BULK HOSE, VACUUM (3.5X1000) (3.5X55)

95005-35001-20M

$8.69

29

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-20M

$8.69

30

BULK HOSE, VACUUM (3.5X1000) (3.5X115)

95005-35001-20M

$8.69

31

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$8.69

32

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-20M

$8.69
