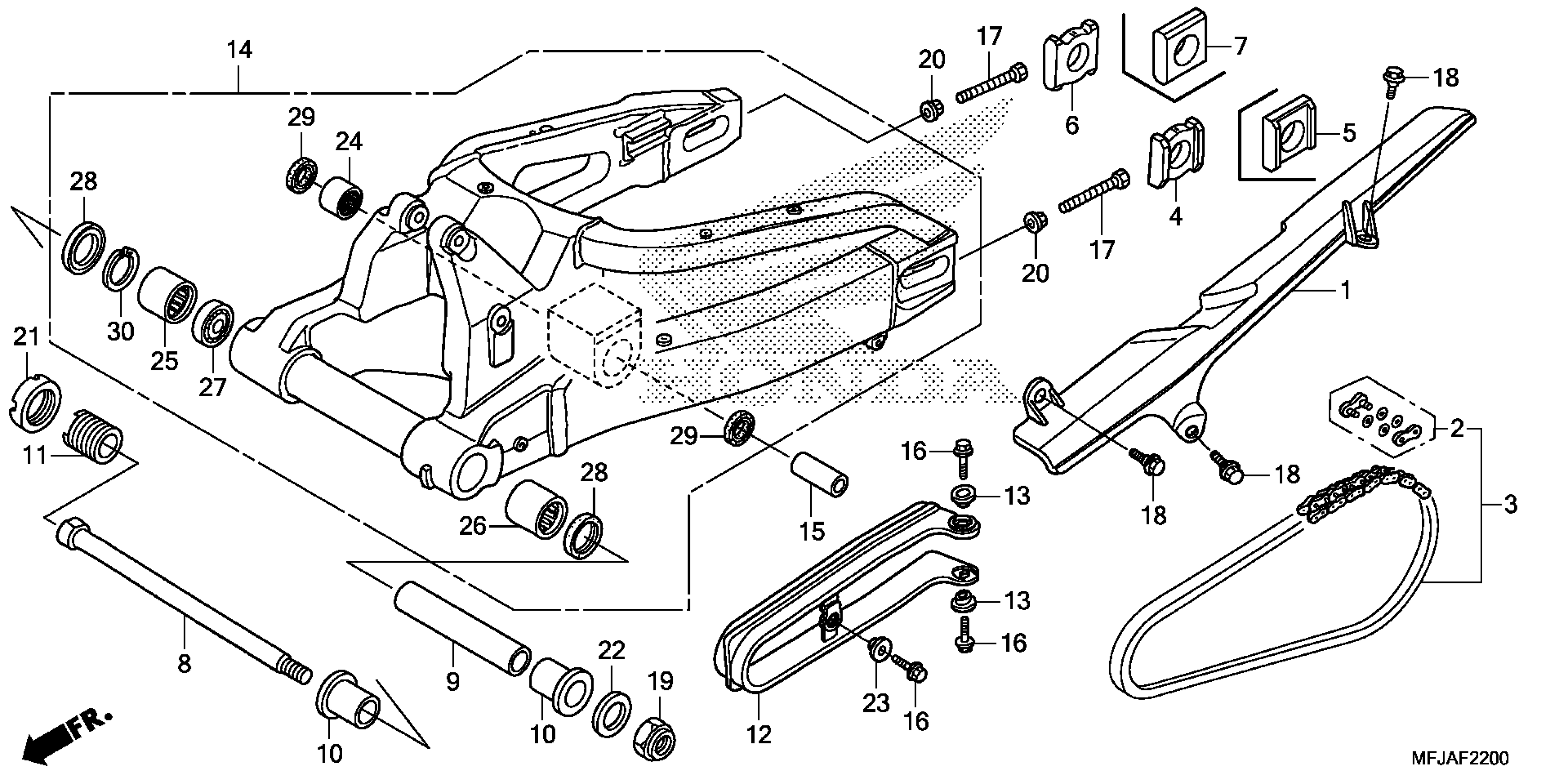

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MEE-010

$46.00

2

MASTER LINK SET (DAIDO)

40535-MAL-G01

$7.38

2

MASTER LINK SET (RK EXCEL)

40541-MFJ-D02

$12.09

3

CHAIN, DRIVE (DID525HV-120ZB) (DAIDO) (STANDARD LINK 112L)

40540-MAL-G01

$220.90

3

CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL) (STANDARD LINK 112L)

40540-MFJ-D02

$211.62

4

COLLAR, L. RR. AXLE

42305-MEE-D00

$30.93

6

COLLAR, R. RR. AXLE

42306-MEE-D00

$23.78

8

BOLT, SWINGARM PIVOT

52101-MFJ-D00

$47.07

9

COLLAR, SWINGARM PIVOT

52102-MFJ-D00

$19.83

10

COLLAR B, PIVOT

52106-MR7-000

$33.69

11

BOLT, R. PIVOT ADJUSTING

52108-MFJ-D00

$21.93

12

SLIDER, CHAIN

52170-MFJ-D00

$36.93

13

WASHER, CHAIN SLIDER

52171-MFJ-D00

$2.04

14

SWINGARM SUB-ASSY., RR.

52200-MFJ-J30

$1,074.49

15

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.72

16

BOLT, FLANGE (6X18)

90105-MY9-000

$2.71

17

BOLT, HEX. (8X50)

90106-MCF-D00

$2.24

18

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.41

19

NUT, U (18MM)

90306-MCS-G00

$6.80

20

NUT, HEX. (8MM)

90309-357-000

$3.25

21

NUT, SWINGARM PIVOT

90355-MFJ-D00

$14.57

22

WASHER (18X32X2)

90401-KZ4-890

$4.28

23

WASHER (6MM)

90485-MB2-000

$1.85

24

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

25

BEARING, NEEDLE

91071-MBW-E11

$15.79

26

BEARING, NEEDLE

91071-MR7-003

$23.57

27

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.53

28

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

29

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

30

CIRCLIP (INNER) (37MM)

94520-37000

$2.46
