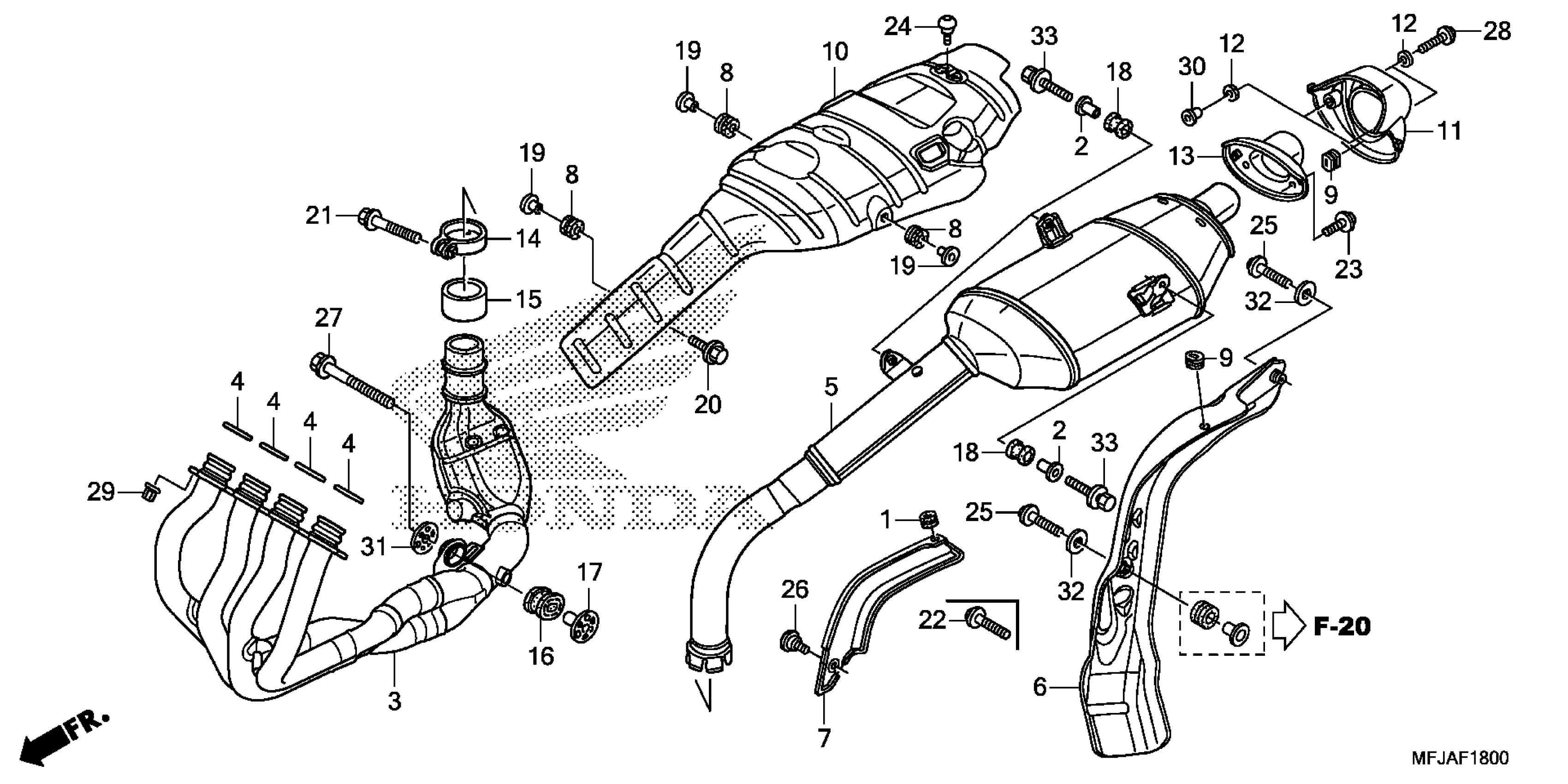

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 MUFFLER Diagram

#

Description
Price

1

GROMMET A, RR. COVER (8X16X6.6)

11344-MB0-000

$2.66

2

COLLAR, AIR CLEANER

17246-439-000

$6.30

3

PIPE, EX.

18150-MFJ-A41

$1,696.68

4

GASKET, EX. PIPE

18291-MN4-920

$5.07

5

MUFFLER, EX. (COO)

18305-MFJ-305

$1,228.24

6

PROTECTOR, EX. PIPE (INNER)

18330-MFJ-D01

$132.00

7

PROTECTOR, EX. PIPE (OUTER) *NH105* (MAT BLACK)

18340-MFJ-D00ZD

Unavailable

8

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

9

RUBBER, PROTECTOR (INNER)

18345-MFJ-D00

$4.26

10

PROTECTOR, MUFFLER (COO)

18350-MFJ-305

Unavailable

11

COVER, RR. MUFFLER This part replaces 18360-MFJ-305.

18360-MFJ-D00

$49.60

12

WASHER, RUBBER (8.5X13X2.5)

18365-MEE-D00

$1.78

13

CAP, RR. MUFFLER

18370-MFJ-D00

$26.43

14

BAND, MUFFLER

18371-MFJ-D00

$24.90

15

GASKET, MUFFLER

18391-MEL-000

$20.30

16

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$17.07

17

COLLAR, EX. PIPE MOUNTING

18423-MFJ-D00

$6.40

18

RUBBER, RR. MUFFLER MOUNTING

18424-MFJ-D00

$7.81

19

COLLAR

84706-415-000

$2.16

20

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.26

21

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

23

SCREW, PAN (6X10)

90105-MM4-000

$2.04

24

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

25

BOLT, SPECIAL (6X25)

90115-MAS-E00

$3.48

26

SCREW, SPECIAL (5X11)

90115-MFJ-D00

$2.29

27

BOLT, FLANGE (8X50) (GUIDE)

90120-MFJ-D00

$2.22

28

BOLT, SPECIAL (6X18) (SUS)

90132-MFJ-D00

$2.13

29

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

30

COLLAR (8.5X7)

90501-GN5-830

$1.97

31

WASHER (8.5X38)

90501-MFJ-D00

$1.99

32

WASHER, PLAIN (6MM)

90525-428-900

$1.87

33

BOLT-WASHER (6X28)

93401-06028-00

$0.96
