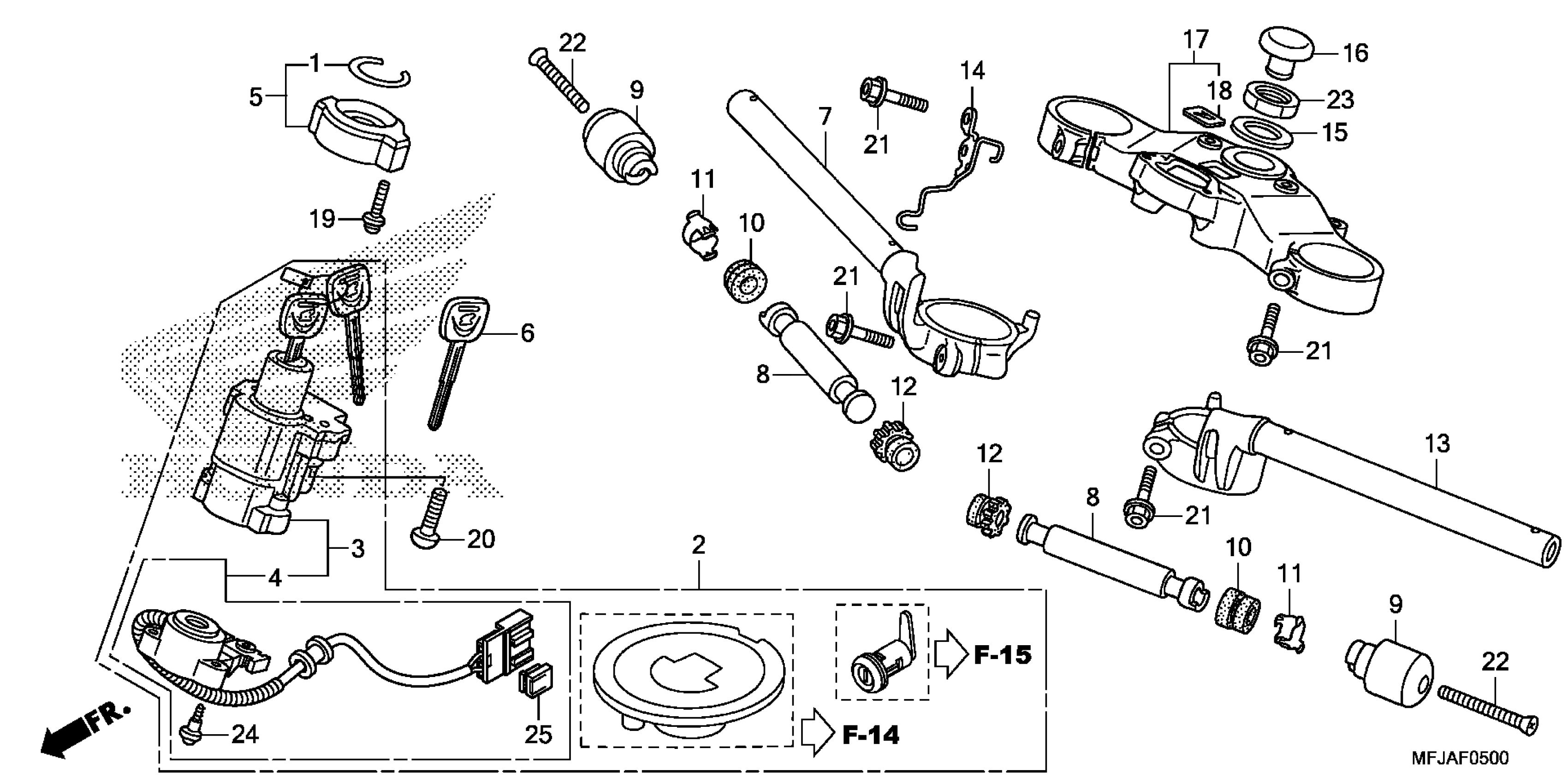

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 HANDLEBAR + TOP BRIDGE Diagram

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

KEY SET This part replaces 35010-MFJ-A40.

35010-MFJ-A41

$456.33

SWITCH ASSY., COMBINATION & LOCK

35100-MFJ-A41

$183.51

BASE, CONTACT

35101-MFJ-A41

$72.20

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

KEY, BLANK | (Optional).

35121-MAS-G01

$12.74

HANDLEBAR, R. This part replaces 53100-MFJ-305.

53100-MFJ-D00

$139.39

WEIGHT B, HANDLE

53104-MCA-A60

$19.13

WEIGHT, HANDLEBAR

53105-MFJ-D00

$20.04

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.77

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

HANDLEBAR, L. This part replaces 53150-MFJ-305.

53150-MFJ-D00

$139.39

GUIDE, CLUTCH CABLE

53191-MFJ-D00

$23.57

WASHER, STEERING STEM NUT

53215-MEE-D00

$1.49

CAP, STEERING STEM NUT

53232-MFJ-D00

$2.84

BRIDGE, FORK TOP

53300-MFJ-D00

$261.31

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

BOLT, FLANGE (8X40)

90140-MEE-D00

$1.85

SCREW, OVAL (6X50)

90191-MJ0-000

$3.42

NUT, STEERING STEM

90304-MEE-D00

$10.56

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

HOLDER, BRACKET (RED)

91554-SM4-003

$7.82
