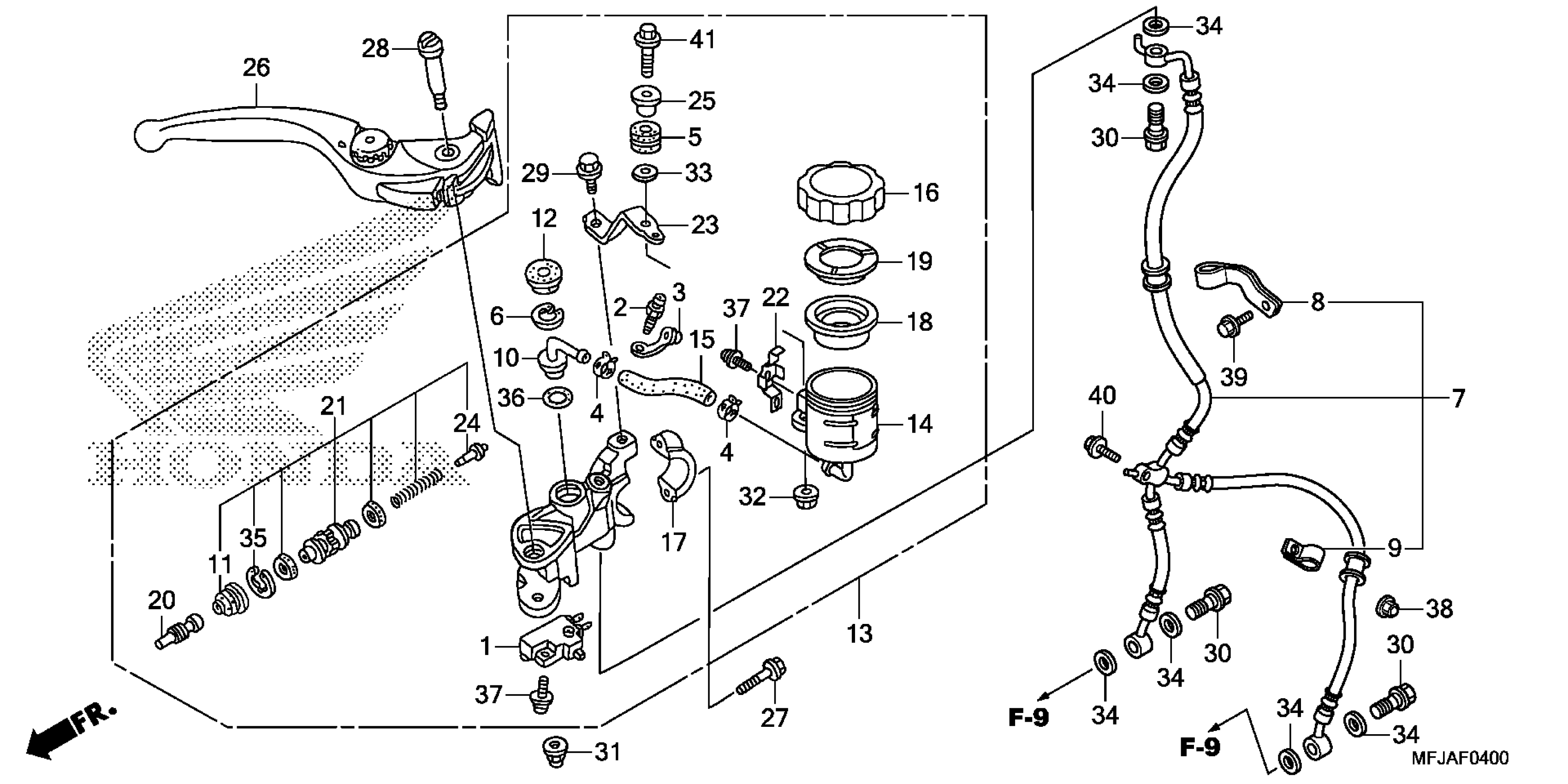

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 FRONT BRAKE MASTER CYLINDER (CBR600RR) Diagram

SWITCH ASSY., FR. STOP

35340-MEL-003

$15.20

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

RUBBER, OIL CUP

43516-MCJ-006

$4.64

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

HOSE, FR. BRAKE

45125-MFJ-A41

$150.33

CLAMP, FR. BRAKE HOSE

45159-MFJ-A40

$6.84

CLAMP, FR. BRAKE HOSE

45161-MFJ-A50

$3.97

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$9.39

BOOT

45504-MCF-006

$11.87

COVER, DUST

45505-KV3-006

$4.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE This part replaces 45510-MFJ-305.

45510-MFJ-A41

$255.57

CUP, OIL

45511-MEL-D21

$9.83

HOSE, MASTER CYLINDER OIL

45512-KV3-951

$5.21

CAP, OIL CUP

45513-MEL-D21

$18.42

HOLDER, MASTER CYLINDER

45517-MFL-006

$11.87

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

ROD, PUSH

45525-MEL-016

$14.68

MASTER CYLINDER SET

45530-MFJ-D01

$48.26

PLATE, STOP

45535-MR8-901

$5.44

STAY, FR. MASTER CYLINDER

45550-MFJ-D01

$4.94

GUIDE, SPRING

46140-MFJ-D01

$8.00

COLLAR (6.3X13)

50324-425-010

$5.05

LEVER ASSY., R. HANDLE This part replaces 53170-MEL-305.

53170-MEL-006

$52.55

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

BOLT, HANDLE LEVER

90114-MCF-006

$5.81

BOLT, FLANGE (6X12)

90117-MR7-000

$2.98

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, U (6MM)

90301-MG3-000

$6.91

WASHER (6X16)

90473-147-000

$1.49

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MCF-006

$2.26

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, CAP (6MM)

94021-06070-0S

$1.62

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

BOLT, FLANGE (6X28)

96300-06028-07

$1.80
