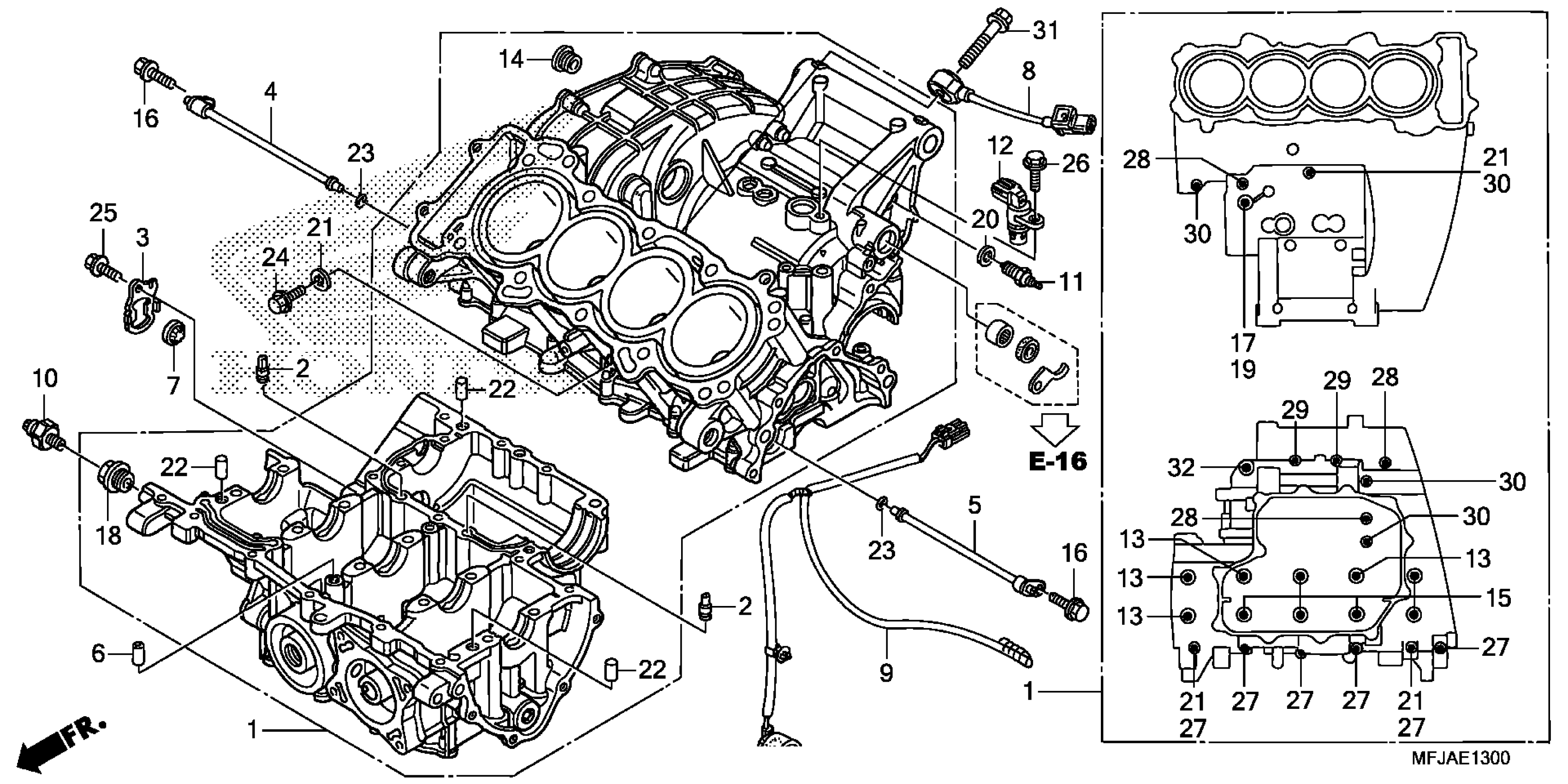

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 CRANKCASE Diagram

CRANKCASE SET

11000-MFJ-660

$2,259.10

ORIFICE (1.4MM)

11104-MFJ-D00

$8.51

PLATE, OIL LEVEL FINDER

11215-MFJ-D00

$6.33

PIPE, R. OIL JET

15330-MFJ-A40

$76.08

PIPE, L. OIL JET

15340-MFJ-A40

$76.08

ORIFICE (1MM)

15351-MFJ-D00

$7.51

FINDER, OIL LEVEL

15661-MEB-671

$9.95

SENSOR, KNOCK

30530-MFJ-D01

$63.62

SUB-WIRE HARNESS, ENGINE

32104-MFJ-D00

$20.10

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL

35600-MFJ-D01

$21.16

SENSOR ASSY., SPEED

37700-MFJ-D01

$79.95

BOLT, UBS (8X98)

90004-MFJ-D01

$9.62

BOLT, SOCKET (10MM)

90005-MAZ-000

$2.26

BOLT, UBS (8X73)

90005-MFJ-D01

$4.30

BOLT, KNOCK (6MM)

90011-MFJ-D00

$2.92

BOLT, FLANGE (8X107)

90015-MFJ-D00

$3.26

BOLT, SEALING (20MM)

90048-MAL-600

$11.87

WASHER, SEALING (8MM)

90442-028-000

$1.77

WASHER, NEUTRAL

90443-MJ6-000

$1.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.61

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (8X30)

95701-08030-00

$1.49

BOLT, FLANGE (10X75)

95701-10075-00

$2.44
