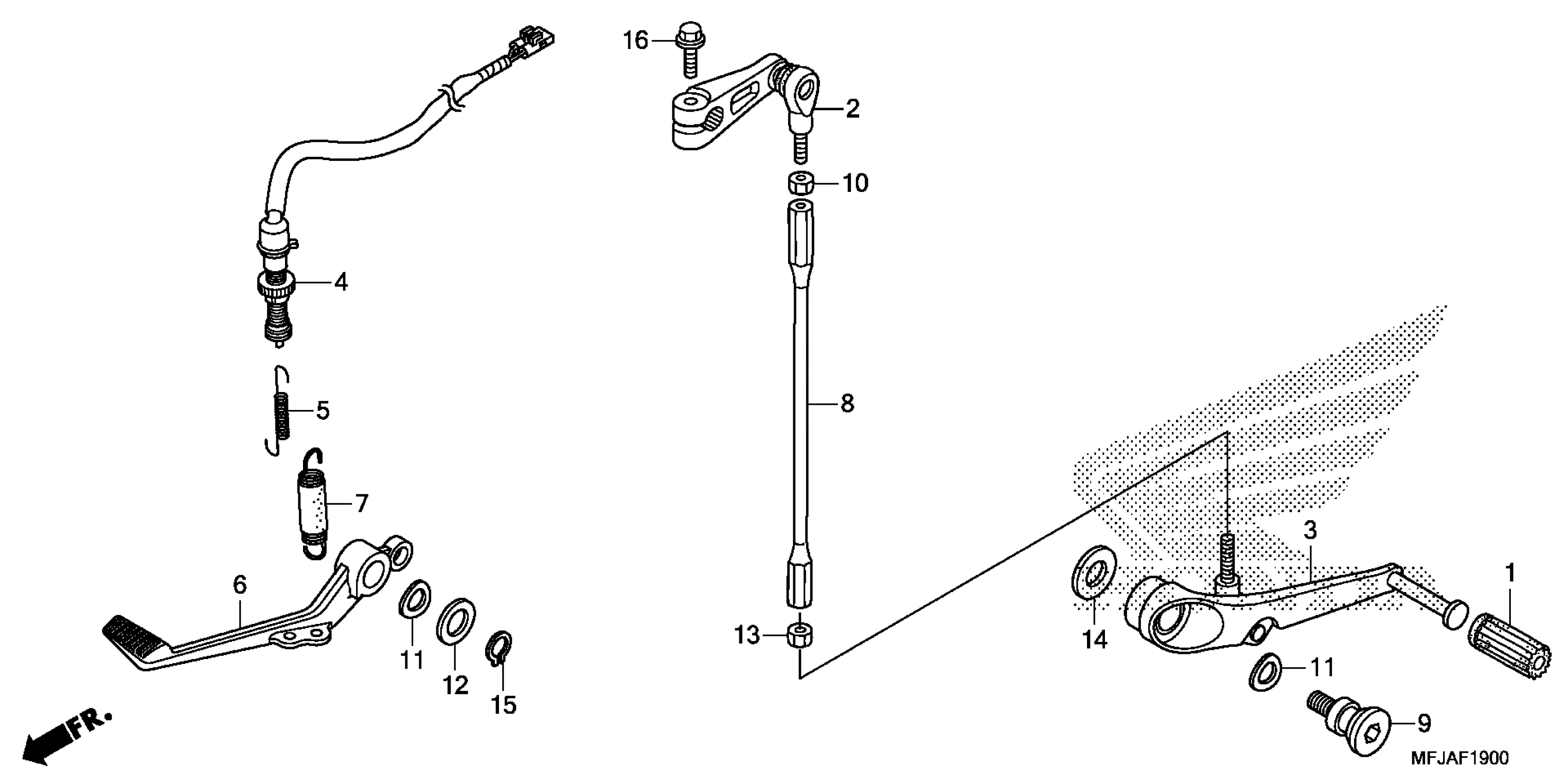

Honda CBR600RR2A (12) MOTORCYCLE, JPN, VIN# JH2PC404-CK500001 BRAKE PEDAL + CHANGE PEDAL Diagram

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

ARM, GEARSHIFT

24710-MEE-000

$66.12

PEDAL, GEARSHIFT This part replaces 24720-MFJ-305.

24720-MFJ-D01

$84.31

SWITCH ASSY., RR. STOP This part replaces 35350-MFJ-D01.

35350-MFJ-D02

$28.46

SWITCH ASSY., RR. STOP

35350-MFJ-D02

$28.46

SPRING, STOP SWITCH

35357-KE1-000

$6.16

PEDAL, RR. BRAKE This part replaces 46500-MFJ-305.

46500-MFJ-D00

$116.19

SPRING SET, BRAKE PEDAL

46513-MEE-000

$5.66

BAR, CHANGE

90065-MFJ-D00

$13.16

BOLT, CHANGE PIVOT

90113-MCF-000

$7.96

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$4.03

WASHER (15.2X25)

90557-230-000

$2.39

NUT, HEX. (6MM)

94001-06020-0S

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
