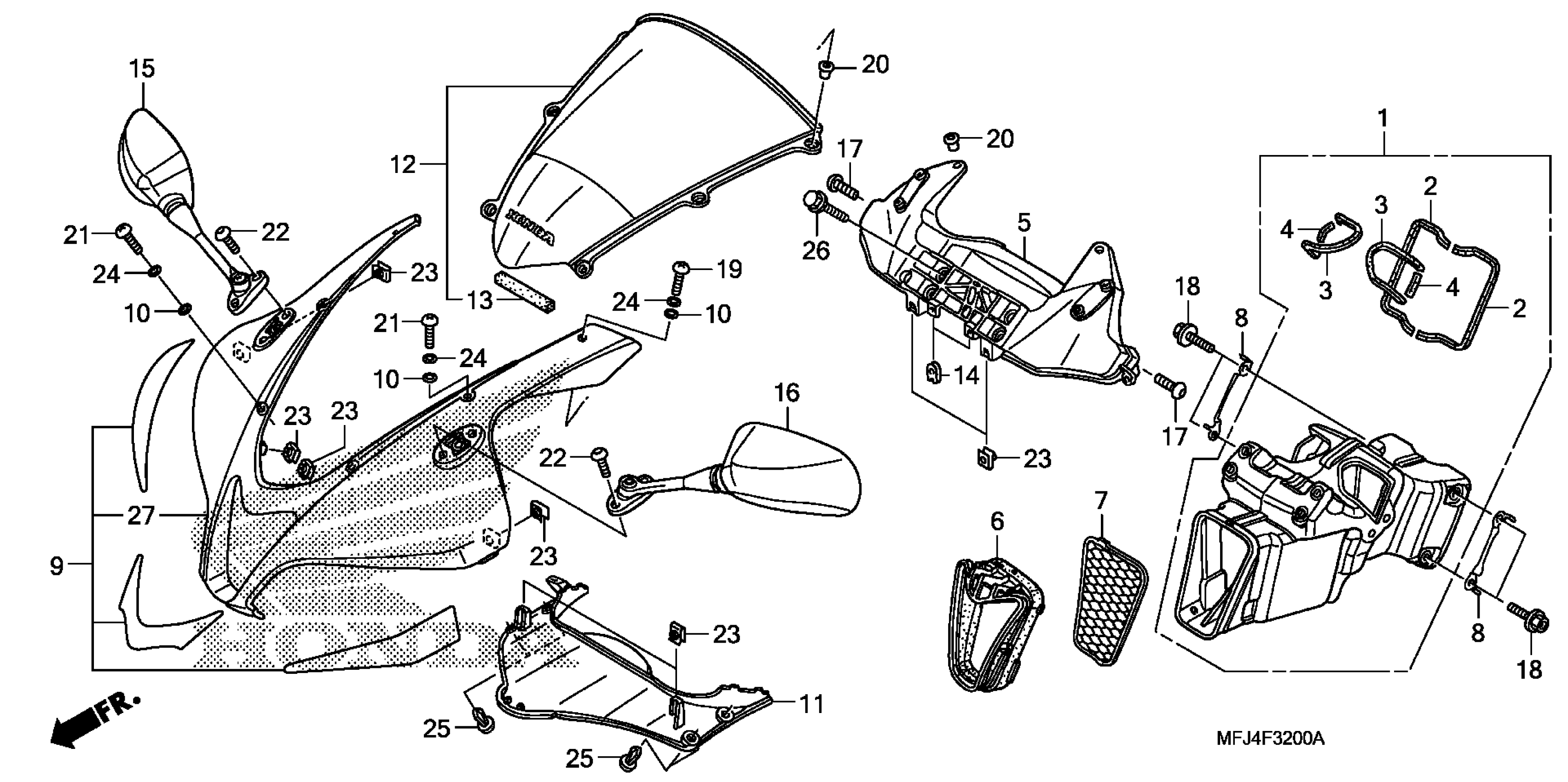

Honda CBR600RR2A (11) MOTORCYCLE, JPN, VIN# JH2PC404-BK400001 UPPER COWL Diagram

DUCT, AIR IN.

17300-MFJ-A00

$194.11

SEAL A, AIR IN. DUCT

17311-MFJ-D00

$2.72

SEAL C, AIR IN. DUCT

17313-MFJ-D00

$1.98

SEAL D, AIR IN. DUCT

17314-MFJ-D00

$1.49

STAY, MIRROR & METER

17340-MFJ-A40

$102.83

ATTACHMENT, DUCT

17370-MFJ-D01

$17.11

GRILL, AIR IN. DUCT

17380-MFJ-D00

$20.30

WASHER, TONGUED

17390-MFJ-D00

$3.58

WASHER, SCREEN SETTING

64205-166-610

$2.21

SPOILER, FR.

64220-MFJ-D00

$8.70

WINDSCREEN SET (TYPE1) (WL)

64250-MFJ-D00ZA

$213.11

WINDSCREEN SET (TYPE1) (WL) This part replaces 64250-MFJ-305ZA.

64250-MFJ-D00ZA

$213.11

SEAL, SPONGE

64251-MFJ-D00

$1.97

NUT, CLIP (4MM)

64521-MN5-000

$2.92

MIRROR ASSY., R. BACK (COO)

88110-MEL-305

$88.98

MIRROR ASSY., L. BACK (COO)

88120-MEL-305

$76.21

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.67

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

SCREW, TRUSS (5X15)

90109-MCJ-750

$2.05

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, TRUSS (5X18)

90111-MEL-000

$2.16

BOLT, SOCKET (6X13)

90130-MEE-000

$1.90

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER, THRUST (5MM)

90504-964-000

$1.90

CLIP, BODY COVER

90683-GR1-003

$2.92

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

COWL (UPPER) *R334* (VICTORY RED) | Victory red R334;

64211-MFJ-D00ZM

$385.43
