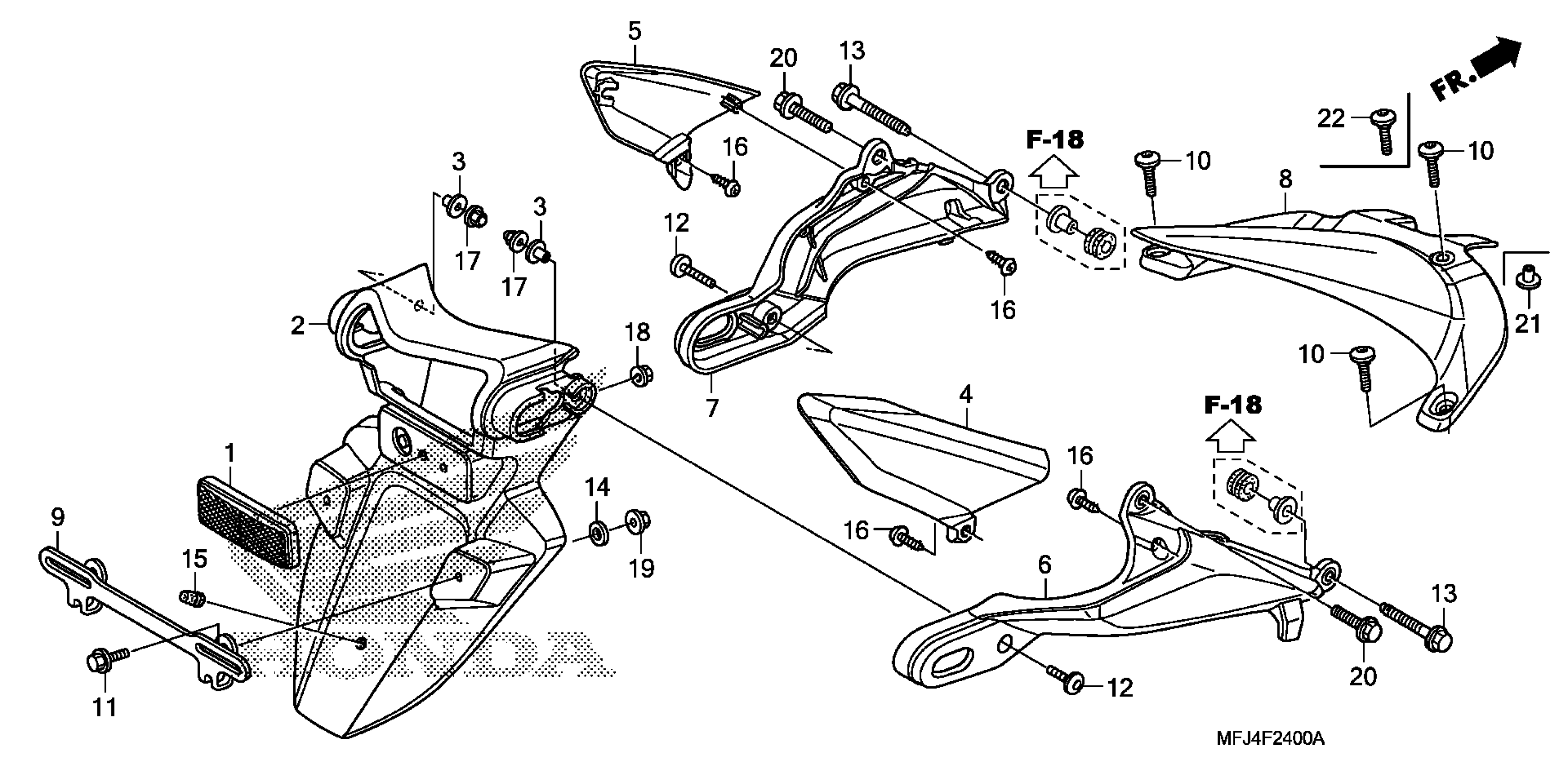

Honda CBR600RR2A (11) MOTORCYCLE, JPN, VIN# JH2PC404-BK400001 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

2

FENDER A, RR.

80100-MFJ-A00

Unavailable

3

COLLAR, RR. FENDER

80101-MFJ-D00

$3.85

4

GUARD, R. RR. HEAT *NH35M* (CLOUD SILVER METALLIC)

80103-MFJ-D00ZA

$26.03

5

GUARD, L. RR. HEAT *NH35M* (CLOUD SILVER METALLIC)

80104-MFJ-D00ZA

$27.22

6

STAY, R. FENDER A

80115-MFJ-D00

$67.60

7

STAY, L. FENDER A

80116-MFJ-D00

Unavailable

8

FENDER C, RR.

80120-MFJ-A40

$11.67

9

BRACKET, NUMBER PLATE

84700-MFJ-A00

Unavailable

10

SCREW, PAN (5X19)

90106-KCR-000

$2.83

11

BOLT, FLANGE (6MM)

90111-187-000

$6.94

12

SCREW, PAN (5X15)

90115-MEL-000

$1.75

13

BOLT, FLANGE (6X29) (GUIDE)

90166-MEE-D00

$1.75

14

WASHER (6MM)

90485-MB2-000

$1.85

15

PLUG, CONE

90899-MFJ-A00

$3.29

16

SCREW, TAPPING (4X10) (PO)

93913-14180

$0.84

17

NUT, CAP (5MM)

94021-05000-0S

$0.81

18

NUT, FLANGE (5MM)

94050-05070

$1.19

19

NUT, FLANGE (6MM)

94050-06070

$1.34

20

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable

21

COLLAR, RR. FENDER C

80121-MFJ-A40

$2.50

22

SCREW, PAN (5X20)

90103-MBG-000

$1.87
