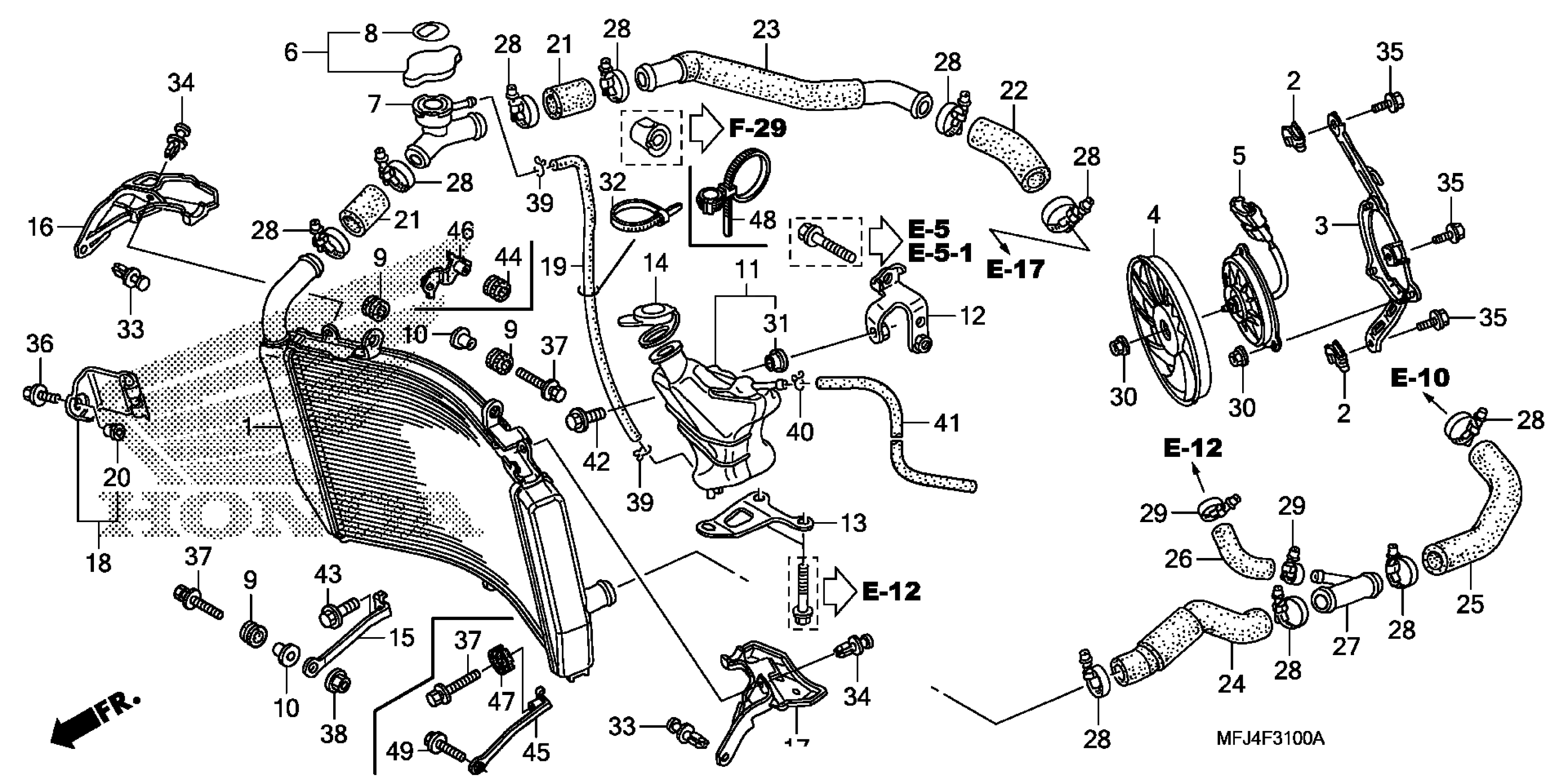

Honda CBR600RR2A (11) MOTORCYCLE, JPN, VIN# JH2PC404-BK400001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO)

19010-MFJ-305

$652.16

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD (COO)

19015-MFJ-305

$68.72

4

FAN, COOLING

19020-MFJ-D01

$38.20

5

MOTOR ASSY., FAN

19030-MFJ-D01

$306.00

6

CAP, RADIATOR

19037-GEE-710

$30.28

7

FILLER, NECK

19039-MFJ-D01

$31.03

8

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

11

TANK, RAD RESERVE This part replaces 19101-MFJ-A40.

19101-MFJ-A42

$40.54

11

TANK, RAD RESERVE This part replaces 19101-MFJ-305.

19101-MFJ-A42

$40.54

12

STAY, RES.TANK This part replaces 19102-MFJ-A40.

19102-MFJ-A41

$15.18

13

STAY, RESERVE TANK (LOWER)

19103-MFJ-A40

$5.28

14

CAP, RESERVE TANK

19104-MB0-700

$12.16

15

STAY, RADIATOR (LOWER)

19105-MFJ-D00

$6.14

16

PLATE, R. RADIATOR HEAT GUARD

19106-MFJ-D00

$6.36

17

PLATE, L. RADIATOR HEAT GUARD

19107-MFJ-D01

$6.98

18

GUARD, RADIATOR

19108-MFJ-D00

$6.97

19

TUBE, FILLER-RESERVE TANK

19109-MFJ-D00

$13.52

20

COLLAR, RADIATOR COVER

19121-KE7-000

$2.39

21

HOSE, R. RADIATOR (UPPER)

19502-MFJ-D00

$3.92

22

HOSE, R. RADIATOR (LOWER)

19503-MFJ-D00

$19.16

23

PIPE, WATER

19504-MFJ-D00

$56.24

24

HOSE, L. RADIATOR (UPPER)

19511-MFJ-D00

$32.89

25

HOSE, L. RADIATOR (LOWER)

19512-MFJ-D00

$17.57

26

HOSE, OIL COOLER

19513-MFJ-D00

$6.07

27

JOINT, HOSE (THREE-WAY)

19514-MFJ-D00

$12.45

28

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

29

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

30

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

31

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

33

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

34

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

35

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

36

BOLT-WASHER (4X12)

93404-04012-08

$1.49

37

BOLT-WASHER (6X25)

93404-06025-00

$1.49

38

NUT, FLANGE (6MM)

94050-06000

$1.49

39

CLIP, TUBE (B10)

95002-02100

$1.90

40

CLIP, TUBE (C9)

95002-50000

$1.49

41

BULK HOSE, VACUUM (5X3000) (5X520)

95005-50003-30M

$20.85

42

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

43

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

48

CLIP, TUBE (135MM) (BLACK)

91558-SM4-003

$6.90
