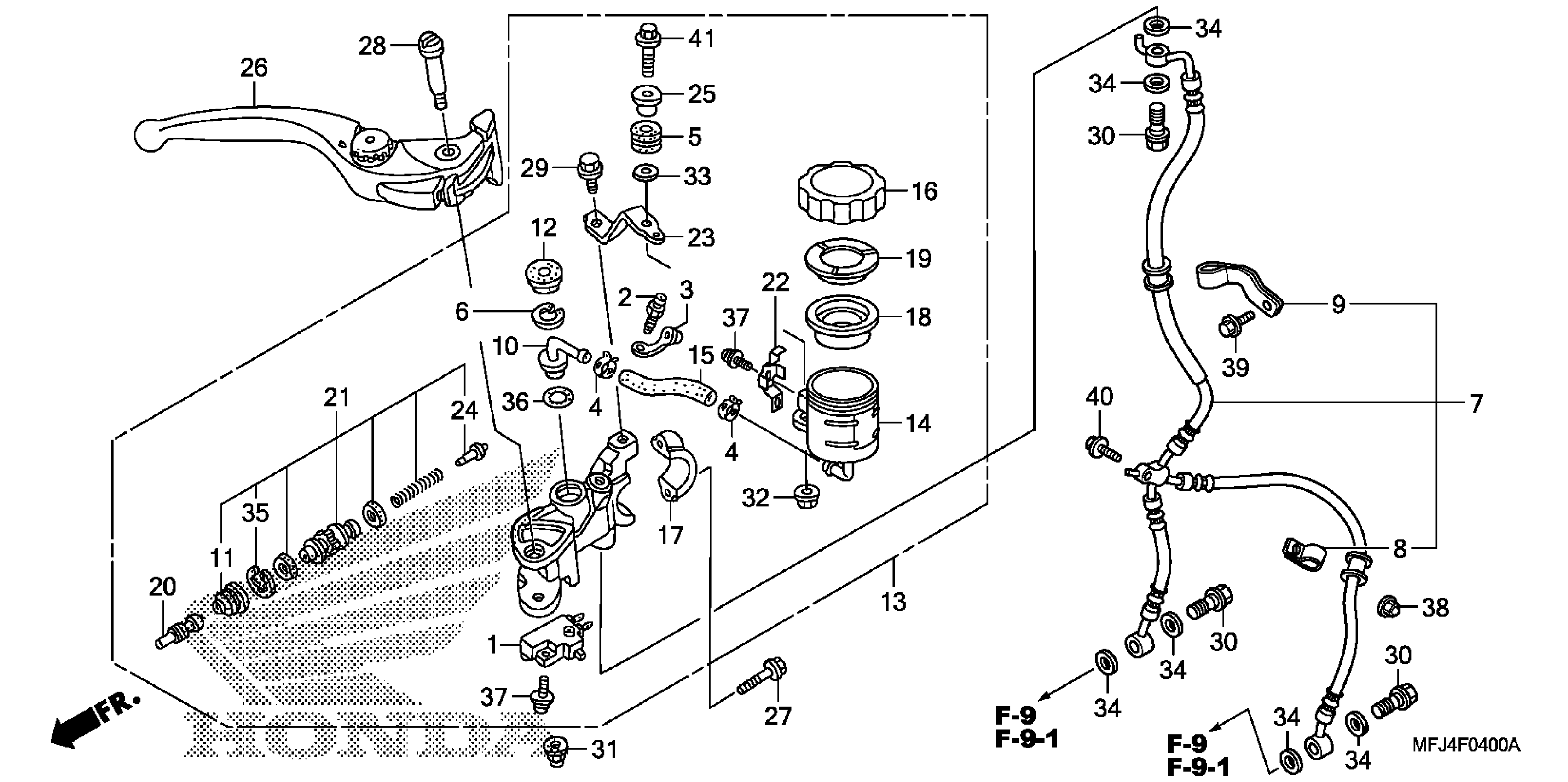

Honda CBR600RR2A (08) MOTORCYCLE, JPN, VIN# JH2PC404-8M100001 TO JH2PC404-8M109999 FRONT BRAKE MASTER CYLINDER (CBR600RR) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MEL-003

$13.66

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

3

CAP, BLEEDER

43353-461-771

$4.70

4

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

5

RUBBER, OIL CUP

43516-MCJ-006

$4.23

6

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

7

HOSE, FR. BRAKE

45125-MFJ-D01

Unavailable

8

CLAMP A, FR. BRAKE HOSE

45158-MEE-D00

$3.14

9

CLAMP, FR. BRAKE HOSE

45159-MFJ-D00

Unavailable

10

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.44

11

BOOT

45504-MCF-006

$10.81

12

COVER, DUST

45505-KV3-006

$3.87

13

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MFJ-D01

$302.72

14

CUP, OIL

45511-MEL-D21

$8.83

15

HOSE, MASTER CYLINDER OIL

45512-KV3-951

$4.85

16

CAP, OIL CUP

45513-MEL-D21

$16.55

17

HOLDER, MASTER CYLINDER

45517-MEL-006

Unavailable

18

DIAPHRAGM

45520-300-000

$8.13

19

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

20

ROD, PUSH This part replaces 45525-MEL-006.

45525-MEL-016

$13.09

20

ROD, PUSH

45525-MEL-016

$13.09

21

MASTER CYLINDER SET

45530-MFJ-D01

$43.34

22

PLATE, STOP

45535-MR8-901

$5.07

23

STAY, FR. MASTER CYLINDER

45550-MFJ-D01

$4.60

24

GUIDE, SPRING

46140-MFJ-D01

$7.29

25

COLLAR (6.3X13)

50324-425-010

$4.51

26

LEVER ASSY., R. HANDLE

53170-MEL-006

$46.84

26

LEVER ASSY., R. HANDLE This part replaces 53170-MEL-305.

53170-MEL-006

$46.84

27

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.30

28

BOLT, HANDLE LEVER

90114-MCF-006

$5.42

29

BOLT, FLANGE (6X12)

90117-MR7-000

$2.71

30

BOLT, OIL (10X22)

90145-MS9-612

$6.82

31

NUT, CAP (6MM)

90201-415-000

$1.96

32

NUT, U (6MM)

90301-MG3-000

$6.44

33

WASHER (6X16)

90473-147-000

$1.26

34

WASHER, OIL BOLT

90545-300-000

$3.72

35

CIRCLIP

90651-MCF-006

$2.06

36

O-RING (14.8X2.4)

91212-422-006

Unavailable

37

SCREW-WASHER (4X12)

93893-04012-07

$1.22

37

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

38

NUT, CAP (6MM)

94021-06070-0S

$1.48

39

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

40

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

41

BOLT, FLANGE (6X28)

96300-06028-07

$1.64
