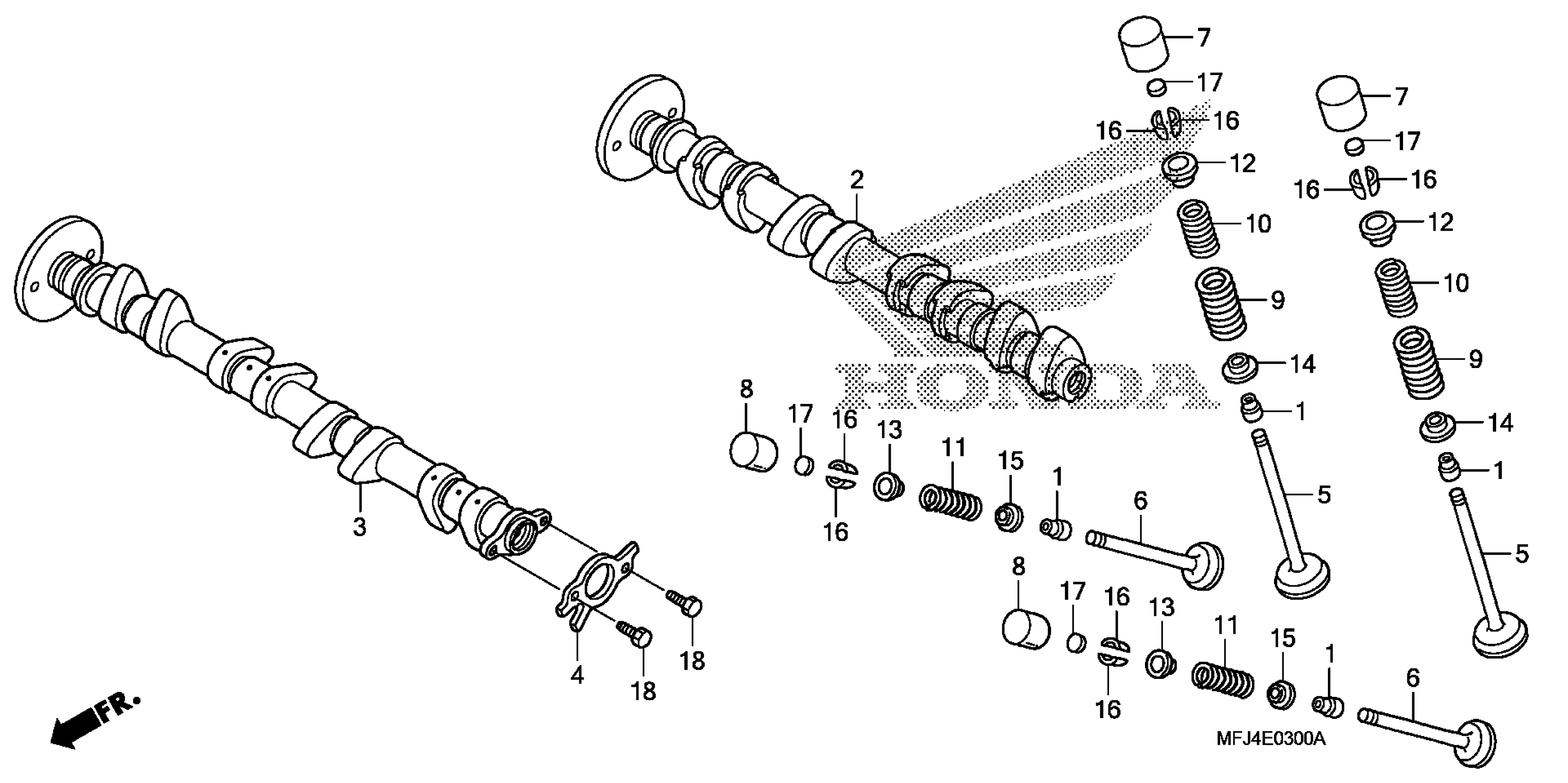

Honda CBR600RR2A (08) MOTORCYCLE, JPN, VIN# JH2PC404-8M100001 TO JH2PC404-8M109999 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM

12209-MEE-D01

$9.18

CAMSHAFT, IN.

14110-MFJ-D00

$377.07

CAMSHAFT, EX.

14210-MFJ-D00

$360.77

ROTOR, CAM PULSE

14405-MEE-000

$25.77

VALVE, IN.

14711-MFJ-D00

$32.11

VALVE, EX.

14721-MFJ-D00

$51.72

LIFTER, VALVE

14731-MCJ-000

$51.92

LIFTER, VALVE

14731-MY9-751

$49.00

SPRING, IN. VALVE (OUTER)

14751-MFJ-D01

$8.72

SPRING, IN. VALVE (INNER)

14752-MEE-003

$6.75

SPRING, EX. VALVE This part replaces 14761-MFJ-D01.

14761-MFJ-D02

$8.28

SPRING, EX. VALVE

14761-MFJ-D02

$8.28

RETAINER, VALVE SPRING

14771-MEE-000

$6.80

RETAINER, EX. VALVE SPRING

14772-MFJ-D00

$10.00

SEAT, IN. VALVE SPRING

14775-MFJ-D00

$8.93

SEAT, EX. VALVE SPRING

14776-MFJ-D00

$4.97

COTTER, VALVE

14781-MV9-671

$5.81

SHIM, TAPPET (1.200)

14901-KT7-013

$9.48

SHIM, TAPPET (1.225)

14902-KT7-013

$9.48

SHIM, TAPPET (1.250)

14903-KT7-013

$9.48

SHIM, TAPPET (1.275)

14904-KT7-013

$9.48

SHIM, TAPPET (1.300)

14905-KT7-013

$9.48

SHIM, TAPPET (1.325)

14906-KT7-013

$9.05

SHIM, TAPPET (1.350)

14907-KT7-013

$9.48

SHIM, TAPPET (1.375)

14908-KT7-013

$9.48

SHIM, TAPPET (1.400)

14909-KT7-013

$9.48

SHIM, TAPPET (1.425)

14910-KT7-013

$9.48

SHIM, TAPPET (1.450)

14911-KT7-013

$9.48

SHIM, TAPPET (1.475)

14912-KT7-013

$9.48

SHIM, TAPPET (1.500)

14913-KT7-013

$9.48

SHIM, TAPPET (1.525)

14914-KT7-013

$9.48

SHIM, TAPPET (1.550)

14915-KT7-013

$9.48

SHIM, TAPPET (1.575)

14916-KT7-013

$9.48

SHIM, TAPPET (1.600)

14917-KT7-013

$8.92

SHIM, TAPPET (1.625)

14918-KT7-013

$8.92

SHIM, TAPPET (1.650)

14919-KT7-013

$8.92

SHIM, TAPPET (1.675)

14920-KT7-013

$8.92

SHIM, TAPPET (1.700)

14921-KT7-013

$8.92

SHIM, TAPPET (1.725)

14922-KT7-013

$8.92

SHIM, TAPPET (1.750)

14923-KT7-013

$8.92

SHIM, TAPPET (1.775)

14924-KT7-013

$8.92

SHIM, TAPPET (1.800)

14925-KT7-013

$8.92

SHIM, TAPPET (1.825)

14926-KT7-013

$8.92

SHIM, TAPPET (1.850)

14927-KT7-013

$9.48

SHIM, TAPPET (1.875)

14928-KT7-013

$8.92

SHIM, TAPPET (1.900)

14929-KT7-013

$8.92

SHIM, TAPPET (1.925)

14930-KT7-013

$8.92

SHIM, TAPPET (1.950)

14931-KT7-013

$8.92

SHIM, TAPPET (1.975)

14932-KT7-013

$9.48

SHIM, TAPPET (2.000)

14933-KT7-013

$8.92

SHIM, TAPPET (2.025)

14934-KT7-013

$8.92

SHIM, TAPPET (2.050)

14935-KT7-013

$8.92

SHIM, TAPPET (2.075)

14936-KT7-013

$9.48

SHIM, TAPPET (2.100)

14937-KT7-013

$8.92

SHIM, TAPPET (2.125)

14938-KT7-013

$8.92

SHIM, TAPPET (2.150)

14939-KT7-013

$8.92

SHIM, TAPPET (2.175)

14940-KT7-013

$8.92

SHIM, TAPPET (2.200)

14941-KT7-013

$8.92

SHIM, TAPPET (2.225)

14942-KT7-013

$8.92

SHIM, TAPPET (2.250)

14943-KT7-013

$8.92

SHIM, TAPPET (2.275)

14944-KT7-013

$9.48

SHIM, TAPPET (2.300)

14945-KT7-013

$9.48

SHIM, TAPPET (2.325)

14946-KT7-013

$9.48

SHIM, TAPPET (2.350)

14947-KT7-013

$9.48

SHIM, TAPPET (2.375)

14948-KT7-013

$9.48

SHIM, TAPPET (2.400)

14949-KT7-013

$9.48

SHIM, TAPPET (2.425)

14950-KT7-013

$8.92

SHIM, TAPPET (2.450)

14951-KT7-013

$9.48

SHIM, TAPPET (2.475)

14952-KT7-013

$9.48

SHIM, TAPPET (2.500)

14953-KT7-013

$8.92

SHIM, TAPPET (2.525)

14954-KT7-013

$9.48

SHIM, TAPPET (2.550)

14955-KT7-013

$9.48

SHIM, TAPPET (2.575)

14956-KT7-013

$9.48

SHIM, TAPPET (2.600)

14957-KT7-013

$9.48

SHIM, TAPPET (2.625)

14958-KT7-013

$9.48

SHIM, TAPPET (2.650)

14959-KT7-013

$8.92

SHIM, TAPPET (2.675)

14960-KT7-013

$9.48

SHIM, TAPPET (2.700)

14961-KT7-013

$8.92

SHIM, TAPPET (2.725)

14962-KT7-013

$9.05

SHIM, TAPPET (2.750)

14963-KT7-013

$9.48

SHIM, TAPPET (2.775)

14964-KT7-013

$9.48

SHIM, TAPPET (2.800)

14965-KT7-013

$8.92

SHIM, TAPPET (2.825)

14966-KT7-013

$9.48

SHIM, TAPPET (2.850)

14967-KT7-013

$9.48

SHIM, TAPPET (2.875)

14968-KT7-013

$9.48

SHIM, TAPPET (2.900)

14969-KT7-013

$8.92

BOLT, KNOCK (6X9)

90081-MFJ-D00

$2.95
