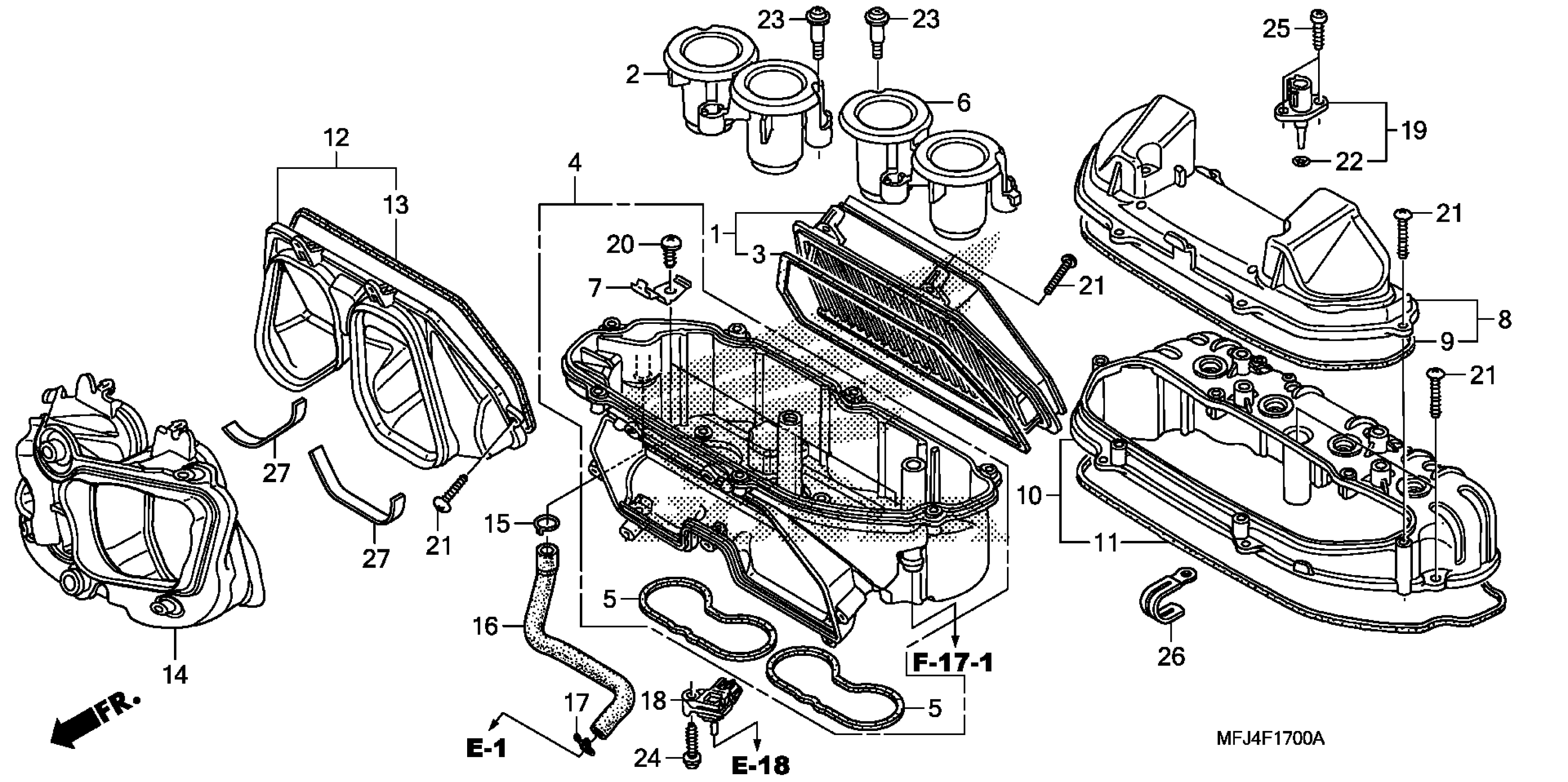

Honda CBR600RR2A (08) MOTORCYCLE, JPN, VIN# JH2PC404-8M100001 TO JH2PC404-8M109999 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MFJ-D00

$38.11

2

FUNNEL, R. AIR This part replaces 17215-MFJ-D00.

17215-MFJ-D01

$9.01

2

FUNNEL, R. AIR

17215-MFJ-D01

$9.01

3

SEAL, ELEMENT

17218-MFJ-305

$9.41

4

HOUSING, AIR CLEANER (LOWER)

17220-MFJ-D00

$107.17

5

SEAL, THROTTLE BODY

17222-MFJ-D00

$2.01

6

FUNNEL, L. AIR This part replaces 17225-MFJ-D00.

17225-MFJ-D01

$9.01

6

FUNNEL, L. AIR

17225-MFJ-D01

$9.01

7

RETAINER, AIR CLEANER ELEMENT

17227-MFJ-D00

$6.00

8

COVER, AIR CLEANER

17230-MFJ-A00

Unavailable

9

SEAL, AIR CLEANER COVER

17232-MFJ-D00

$7.28

10

HOUSING, AIR CLEANER MIDDLE

17240-MFJ-D00

$46.09

11

SEAL A, AIR CLEANER MIDDLE CASE

17242-MFJ-D00

$9.45

12

JOINT A, AIR IN.

17250-MFJ-D00

$15.45

13

SEAL, DUCT JOINT

17252-MFJ-D00

$7.28

14

JOINT B, AIR IN. This part replaces 17271-MFJ-D00.

17271-MFJ-D01

$42.39

14

JOINT B, AIR IN.

17271-MFJ-D01

$42.39

15

CLIP B, TUBE

17366-MJ0-000

$2.04

16

TUBE, ENGINE HEAD COVER BREATHER

17451-MFJ-D00

$7.32

17

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

18

SENSOR ASSY., MAP

37830-MEL-003

$116.08

19

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$29.21

20

SCREW, TAPPING (5X12) (DELTA PT)

90101-HW4-680

$1.58

21

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$1.87

22

O-RING (7.5X1.5)

91303-PK2-005

$2.77

23

SCREW, PAN (5MM)

91508-MM5-000

$3.80

24

SCREW, TAPPING (5X20)

93901-25420

$0.75

25

SCREW, TAPPING (5X16)

93911-25420

$0.88
