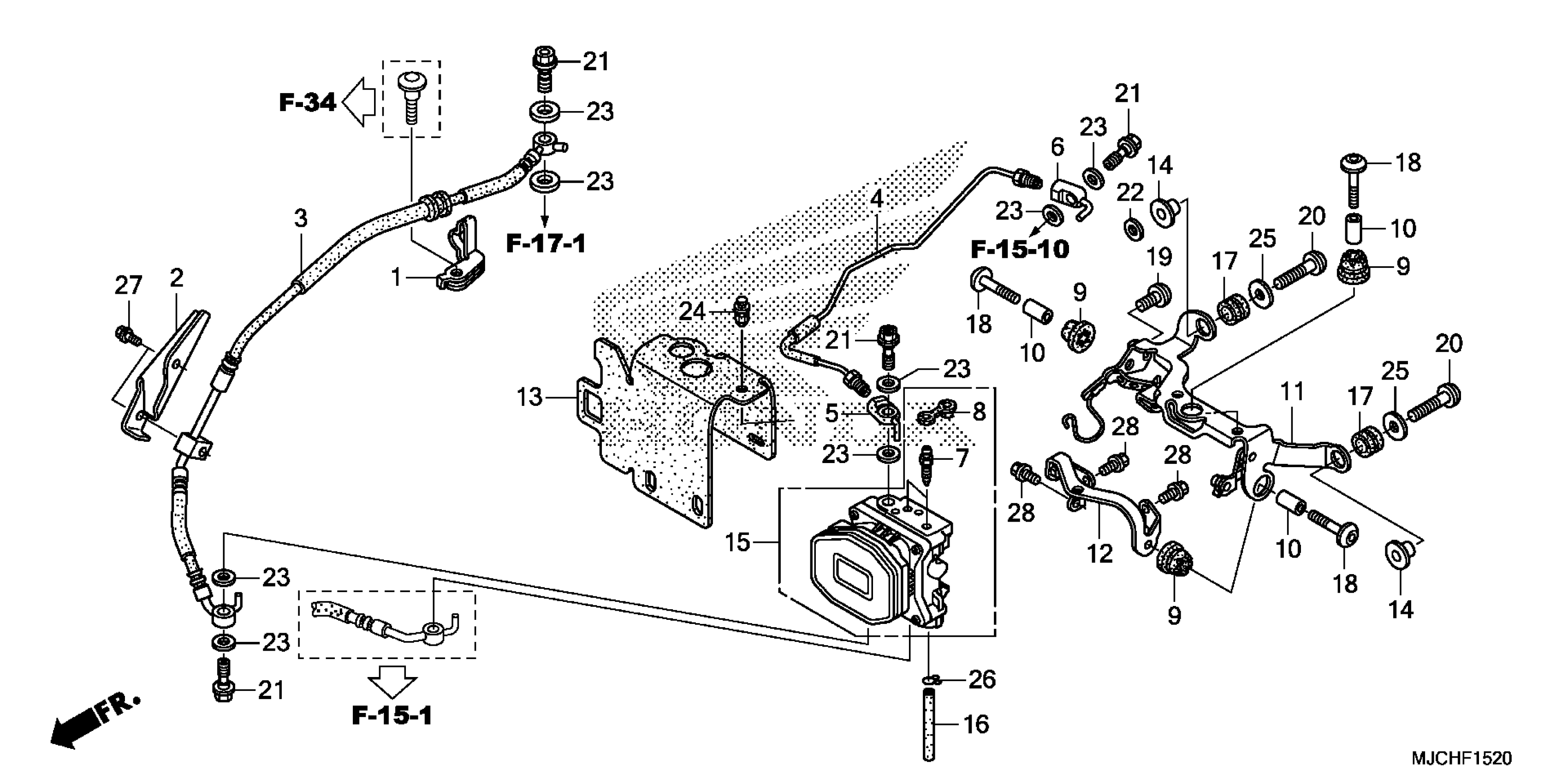

Honda CBR600RAAC (20) MOTORCYCLE, JPN, VIN# JH2PC408-LK400001 TO JH2PC408-LK499999 REAR VALVE UNIT Diagram

CLAMP, BRAKE HOSE BUSH

43156-MFJ-A50

$8.69

STAY, RR. BRAKE HOSE

43159-MFJ-A50

$13.34

HOSE B, RR. BRAKE

43311-MJC-M61

$76.46

PIPE, RR. BRAKE

43312-MFJ-A50

$22.25

JOINT A, RR. BRAKE PIPE

43321-MFJ-A51

$21.39

JOINT B, RR. BRAKE PIPE

43322-MFJ-A51

$21.39

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RUBBER, MOUNT

57101-SJA-003

$8.72

COLLAR

57103-MER-D20

$3.51

STAY A, RR. VALVE UNIT

57451-MFJ-L40

$46.72

STAY B, RR. VALVE UNIT

57452-MFJ-A50

$15.38

MAT, RR. VALVE UNIT

57456-MFJ-A50

$10.28

COLLAR, ABS UNIT MOUNT

57491-MFJ-A50

$3.21

MODULATOR ASSY., RR. VALVE UNIT

57600-MFJ-A51

$1,264.95

TUBE, DRAIN (3.5X30)

57687-MJC-D10

$2.61

RUBBER, HEADLIGHT MOUNTING

61328-MJ6-000

$2.83

BOLT, SOCKET (6X28)

90104-MFJ-A50

$3.56

BOLT, SOCKET (8X16)

90128-MEJ-J00

$2.84

BOLT, SOCKET (8X29)

90136-MFB-000

$2.90

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER (8MM)

90405-463-000

$3.45

WASHER, OIL BOLT

90545-300-000

$3.99

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

WASHER, PLAIN (8MM)

94103-08700

$1.49

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

BOLT, FLANGE (6X12)

96300-06012-07

$1.49
