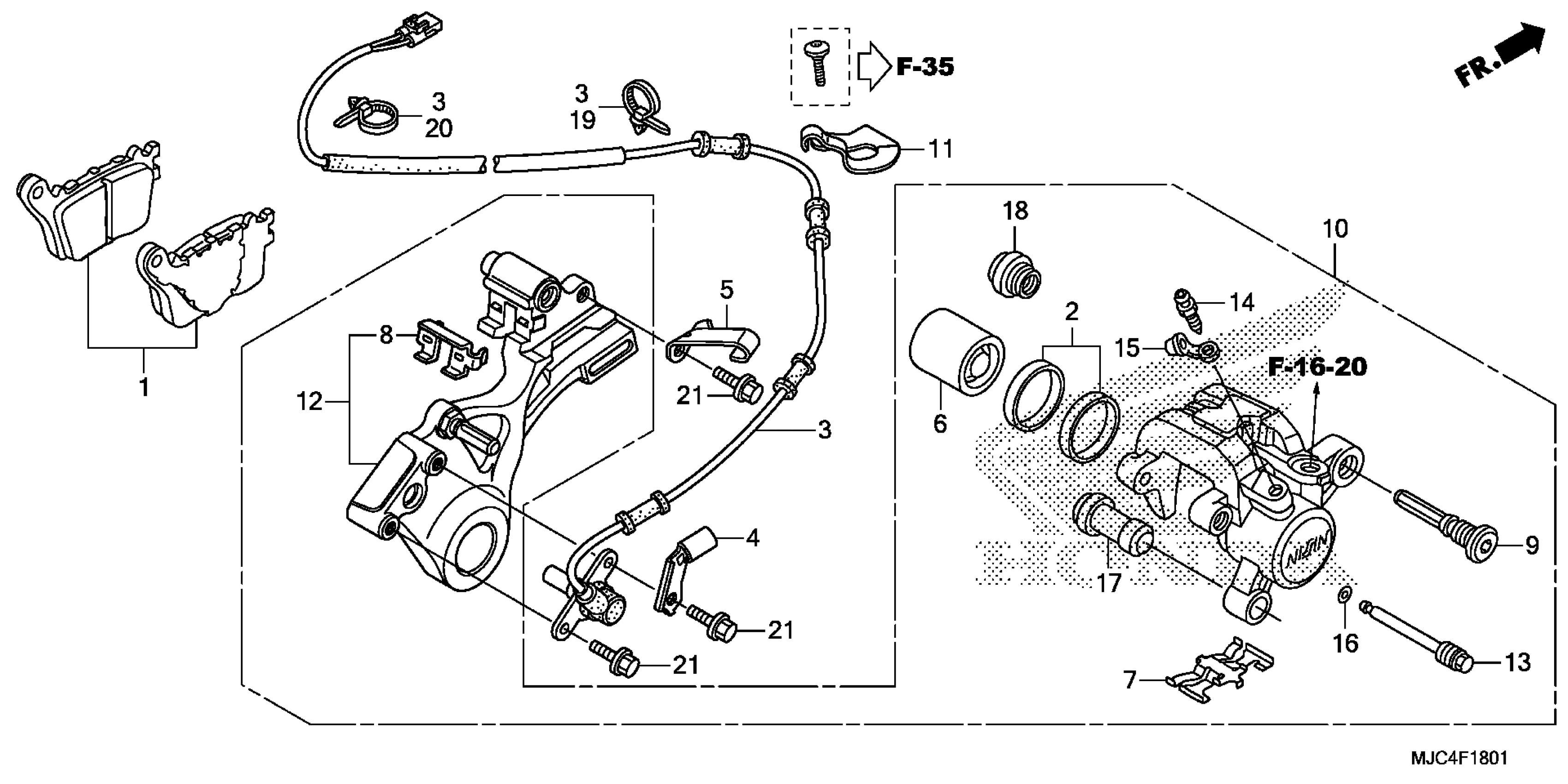

Honda CBR600RAAC (15) MOTORCYCLE, JPN, VIN# JH2PC408-FK800001 TO JH2PC408-FK899999 REAR BRAKE CALIPER (CBR600RA) Diagram

PAD SET, RR. This part replaces 06435-MEL-D22.

06435-MEL-D23

$57.78

PAD SET, RR.

06435-MEL-D23

$57.78

SEAL SET, PISTON

06451-166-405

$13.04

SENSOR, RR. WHEEL SPEED

38510-MFJ-A51

$188.25

GUIDE A, RR. SENSOR WIRE

38515-MFJ-A50

$12.84

GUIDE B, RR. SENSOR WIRE

38516-MFJ-A50

$12.84

PISTON

43107-MEL-D21

$23.01

SPRING, PAD

43108-MEL-D21

$3.15

RETAINER

43112-MEL-D21

$5.44

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. BRAKE

43150-MFJ-A51

$257.41

CLAMP, RR. BRAKE HOSE

43155-MFJ-A50

$8.69

BRACKET SUB-ASSY., RR.

43190-MFJ-A51

$129.59

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30

CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

91542-SNA-003

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
