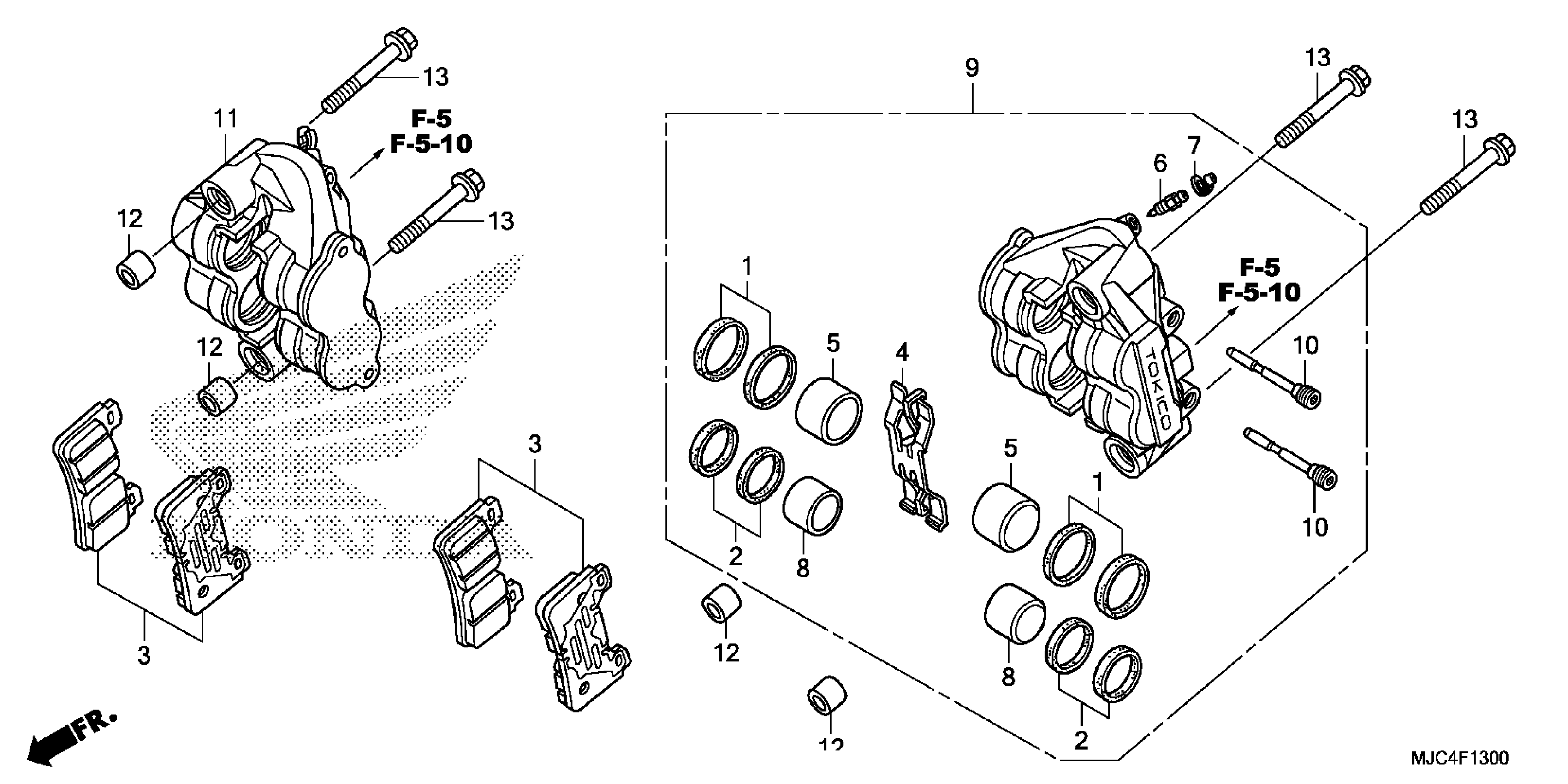

Honda CBR600RAAC (15) MOTORCYCLE, JPN, VIN# JH2PC408-FK800001 TO JH2PC408-FK899999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (32)

06451-MEL-003

$4.80

SEAL SET, PISTON (30)

06452-MEL-003

$4.80

PAD SET, FR. This part replaces 06455-MEL-D22.

06455-MEL-D23

$51.89

PAD SET, FR.

06455-MEL-D23

$51.89

SPRING, PAD

45106-MEL-003

$6.75

PISTON (32)

45107-MFL-013

$40.91

SCREW, BLEEDER

45111-MEL-013

$2.11

CAP, BLEEDER

45112-MEL-003

$1.49

PISTON (30)

45117-MFL-013

$39.45

CALIPER SUB-ASSY., L. FR. (TOKIKO)

45150-MFJ-A51

$403.95

PIN, HANGER

45215-MFL-881

$5.83

CALIPER SUB-ASSY., R. FR. (TOKIKO)

45250-MFJ-A51

$403.95

SPACER, FR. FORK

51497-MEL-000

$5.12

BOLT, FLANGE (10X57)

90131-MEL-000

$17.49
