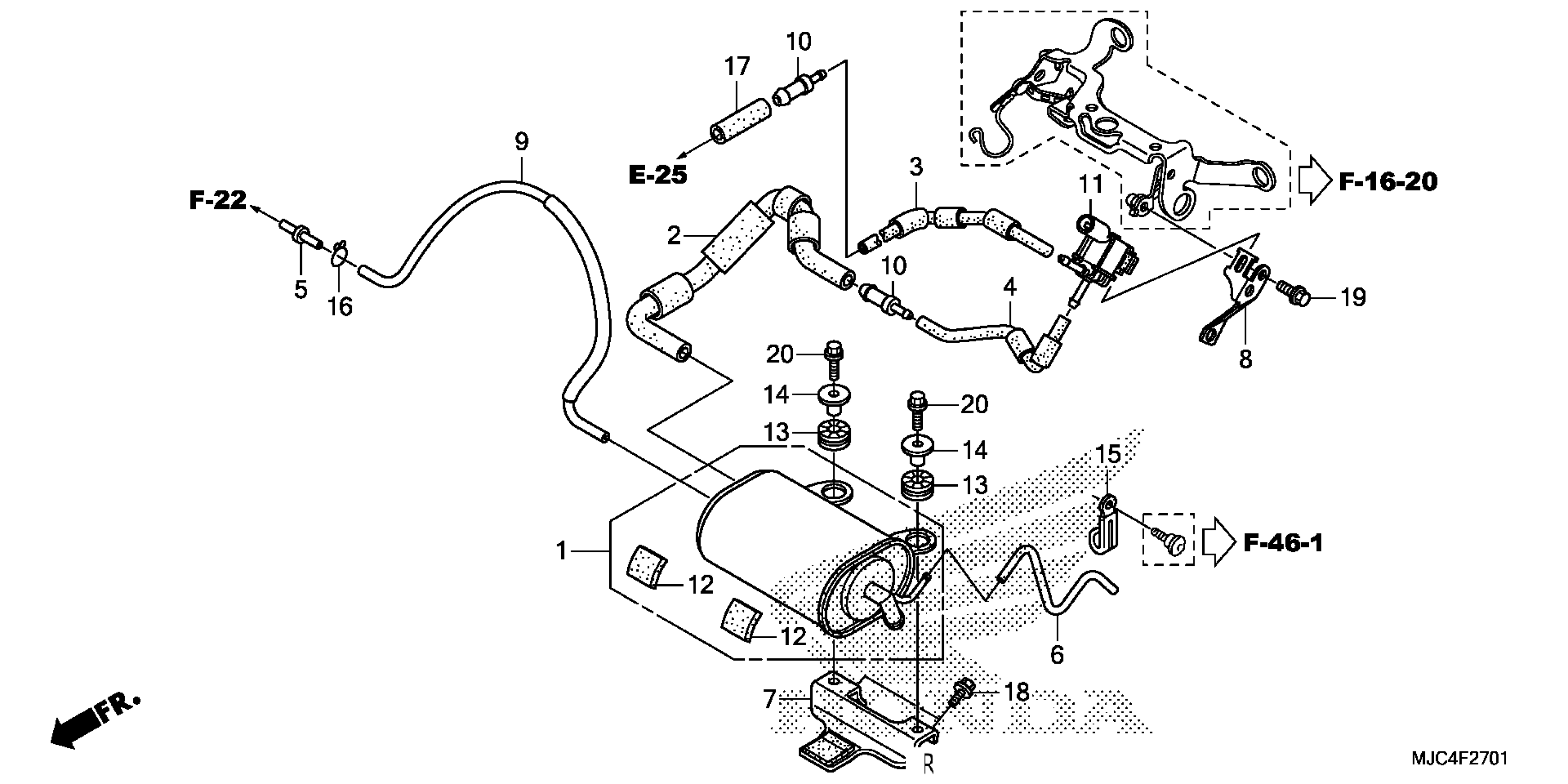

Honda CBR600RAAC (14) MOTORCYCLE, JPN, VIN# JH2PC408-EK700001 TO JH2PC408-EK799999 EVAP CANISTER (CBR600RA) Diagram

EVAPORATIVE EMISSION CANISTER

17410-MFJ-L00

$264.48

TUBE A, CANISTER PURGE CONTROL VALVE

17412-MFJ-L40

$18.38

TUBE, FIVE WAY-PURGE CONTROL VALVE

17413-MFJ-L40

$9.94

TUBE B, CANISTER PURGE CONTROL VALVE

17414-MFJ-L40

$7.33

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$7.04

TUBE, CANISTER DRAIN

17434-MFJ-L00

$4.67

STAY, CANISTER

17440-MFJ-L00

$15.81

STAY, PCS

17445-MFJ-L40

$14.81

TUBE (CANISTER-2WAY)

17556-MFJ-L40

$21.26

JOINT, BREATHER TUBE

17561-MEE-000

$4.20

VALVE ASSY., PURGE CONTROL SOLENOID

36160-P0A-A01

$364.52

RUBBER, BATTERY

50328-HP1-600

$1.48

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.05

COLLAR (6.2X13)

90501-MA3-720

$4.47

CLIP (2X60)

91410-679-000

$9.04

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.59

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$21.47

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
