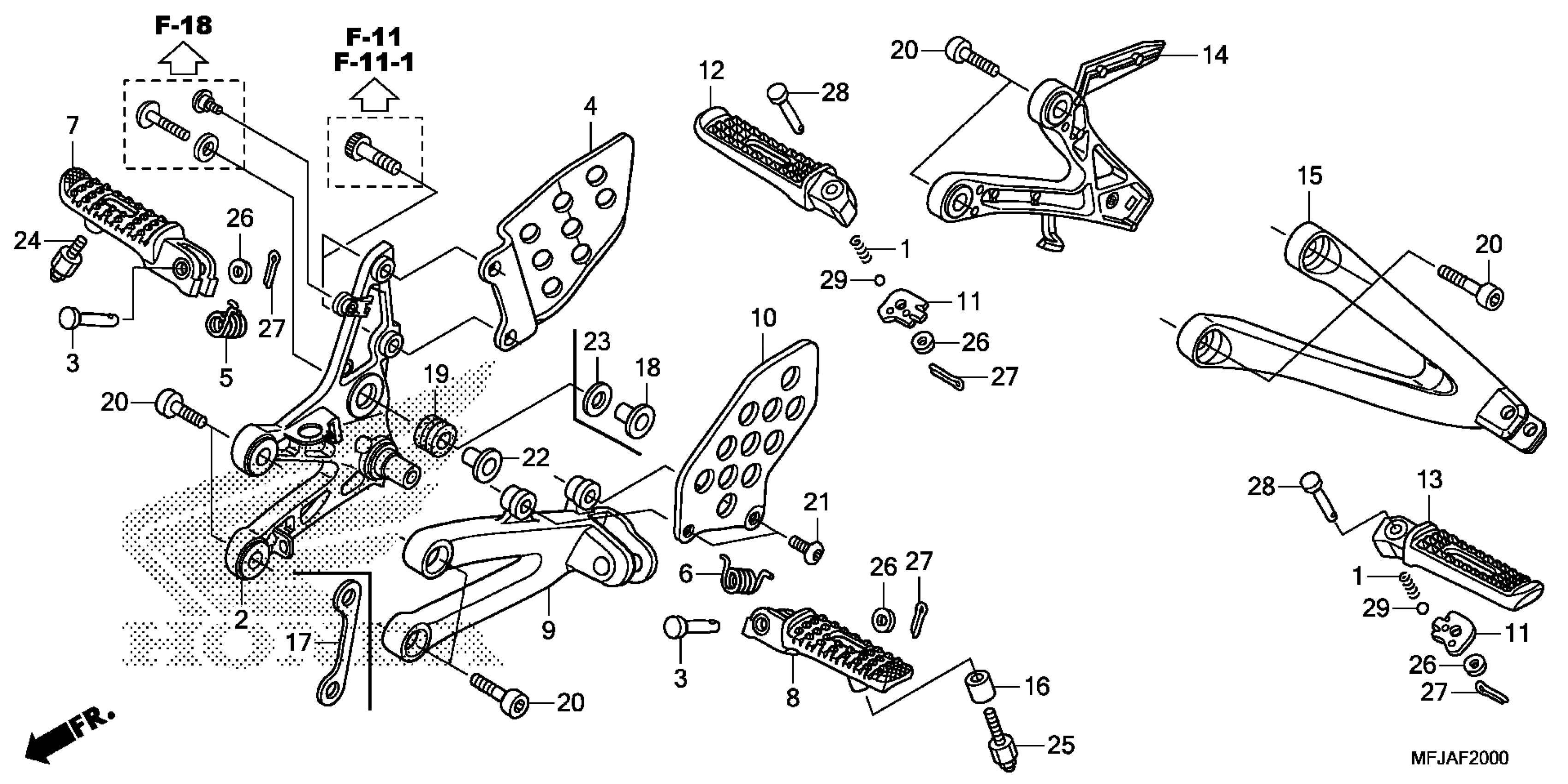

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MFJ-D00

$101.72

3

PIN, STEP JOINT

50603-MFJ-D00

$2.35

4

GUARD, R. STEP This part replaces 50607-MEE-000.

50607-MEE-010

$13.74

4

GUARD, R. STEP

50607-MEE-010

$13.74

5

SPRING, R. STEP RETURN

50617-MCJ-750

$3.95

6

SPRING, L. STEP RETURN

50644-MCJ-750

$3.95

7

ARM, R. MAIN STEP (COO)

50660-MFJ-305

$53.98

8

ARM, L. MAIN STEP (COO)

50665-MFJ-305

$53.98

9

HOLDER, L M STEP This part replaces 50700-MFJ-D00.

50700-MFJ-D01

$71.25

10

GUARD, L. STEP

50707-MEE-000

$12.15

11

PLATE, PILLION STEP CLICK

50718-MEE-D00

$2.41

12

ARM, R. PILLION STEP (COO)

50720-MEL-305

$46.24

13

ARM, L. PILLION STEP (COO)

50730-MEL-305

$52.18

14

HOLDER, R. PILLION STEP

50750-MFJ-D00

$78.84

15

HOLDER, L. PILLION STEP

50760-MFJ-D00

$78.84

16

COLLAR, STEP (LOWER)

51486-MFJ-D00

$3.41

17

PLATE, STIFFENER

57462-MFJ-A50

$3.58

18

COLLAR C6.3, MOUNTING

80109-367-690

$4.61

19

RUBBER A, MOUNTING

80119-MEL-000

$2.29

20

BOLT, SOCKET (8X25)

90102-MN8-700

$3.90

21

SCREW, PAN (6X14)

90118-MR1-000

$2.88

23

WASHER, HEADLIGHT

90540-SK7-000

$1.74

24

BOLT, HEX. CAP (6X10)

92501-06010-0A

$1.88

25

BOLT, HEX. CAP (6X22)

92501-06022-0A

$2.58

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

PIN, SPLIT (1.6X12)

94201-16120

$0.94

28

PIN C, PILLION STEP

95015-83000

$2.19

29

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
