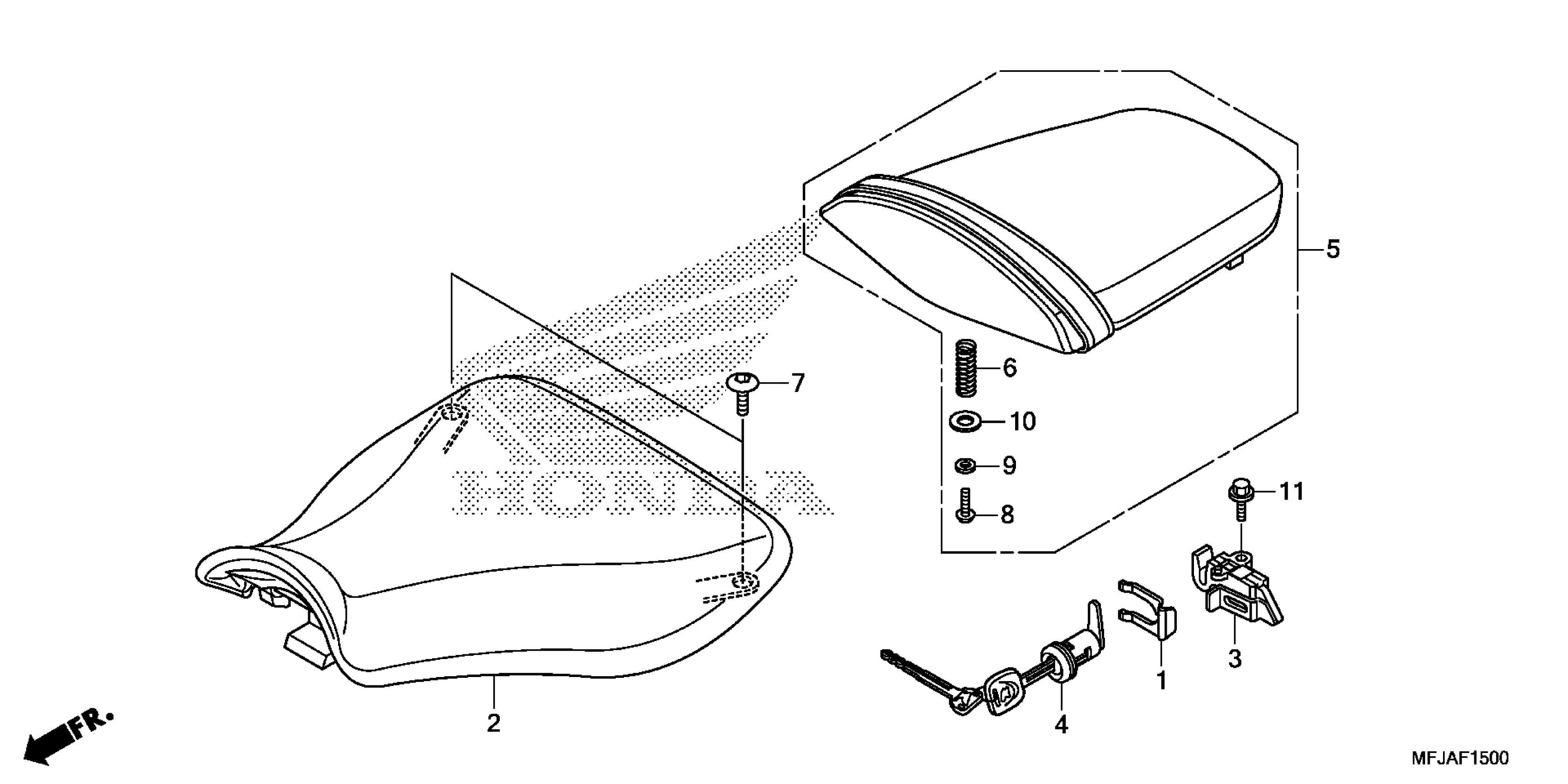

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 SEAT Diagram

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.47

SEAT ASSY., SINGLE

77100-MFJ-D01

$169.74

HOOK, SEAT CATCH

77220-MEE-D01

$30.22

LOCK ASSY., SEAT

77225-MFJ-D01

$34.64

SEAT ASSY., PILLION This part replaces 77300-MFJ-D01.

77300-MFJ-D02

$196.22

SEAT ASSY., PILLION

77300-MFJ-D02

$196.22

SPRING, SEAT LOCK

77302-MEE-000

$1.96

SCREW, PAN (6X14)

90118-MR1-000

$2.88

SCREW, TAPPING (4X12)

93903-24320

$0.83

WASHER, PLAIN (4MM)

94101-04800

$0.90

WASHER, PLAIN (8MM)

94102-08800

$0.86

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
