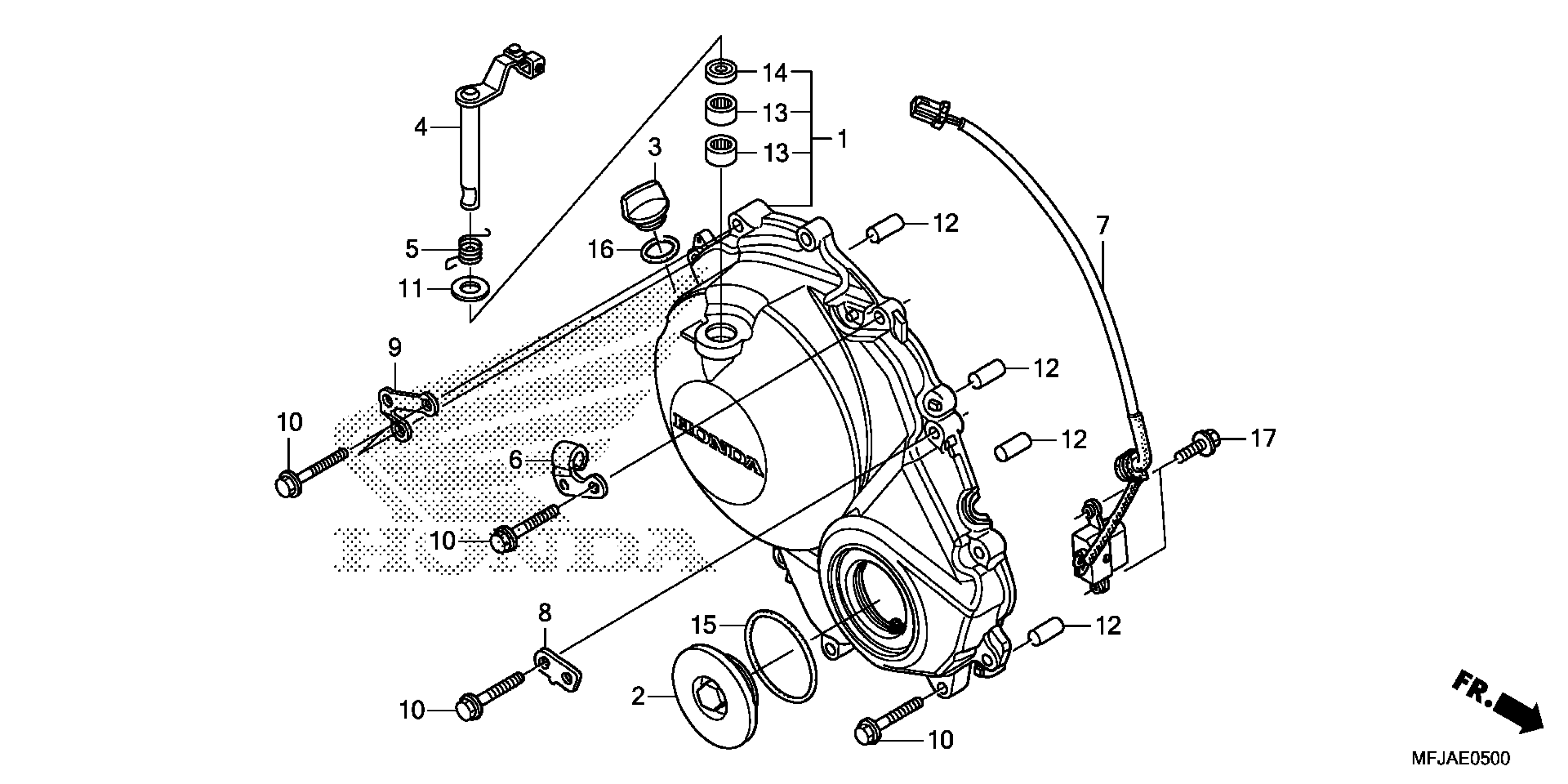

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 RIGHT CRANKCASE COVER Diagram

COVER, R. This part replaces 11330-MFJ-A40.

11330-MFJ-A41

$242.31

COVER, R.

11330-MFJ-A41

$242.31

CAP (45MM)

11332-MER-D00

$17.38

CAP, OIL FILLER

15611-KA4-710

$14.40

LEVER, CLUTCH

22810-MFG-D00

$44.17

SPRING, CLUTCH LEVER

22815-MFJ-D00

$4.24

RECEIVER, CLUTCH CABLE

22821-MFJ-D00

$10.08

GENERATOR, PULSE

30300-MFJ-D01

$56.81

STAY, HARNESS CLIP

32157-MFJ-D00

$3.31

STAY, R. COWL (LOWER/UPPER)

64452-MFJ-A40

Unavailable

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

WASHER

90525-MBZ-610

$2.39

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.26

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
