Description

Price

1

DAMPER SET, WHEEL

06410-MFJ-D00

$57.81

2

SPROCKET, FINAL DRIVEN (42T)

41201-MFJ-A00

$84.36

3

AXLE, RR. WHEEL

42301-MEE-D00

$63.64

4

COLLAR, RR. WHEEL SIDE

42311-MCJ-750

$16.99

5

RING, RR. PULSER

42515-MFJ-A50

$53.61

6

FLANGE SUB-ASSY., RR. DRIVEN

42615-MEL-000

$230.02

7

COLLAR, RR. AXLE DISTANCE

42620-MFJ-D00

$41.07

8

COLLAR B, RR. WHEEL DISTANCE

42625-MEL-000

$31.18

9

WHEEL SUB-ASSY., RR.

42650-MFJ-307

$1,256.87

10

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

10

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

10

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

11

TIRE, RR. (180/55ZR17) (M/C 73W) (BS)

42711-MFJ-D01

$256.67

11

TIRE (180/55ZR17) This part replaces 42711-MFJ-D02.

42711-MFJ-D03

$389.15

12

VALVE, RIM (BS)

42753-ML7-003

$12.74

12

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

13

DISK, RR. BRAKE

43251-MFJ-A51

$254.16

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

BOLT (10X30)

90121-MCF-D30

$2.92

16

BOLT, TORX (5X7)

90131-MFJ-A50

$3.03

17

NUT, U (10MM)

90304-KAE-871

$4.33

18

U-NUT (22MM)

90305-MFJ-A50

$9.80

19

WASHER (23X37X2.5)

90401-MCJ-000

$5.05

20

WASHER (10MM)

90502-MCF-000

$2.80

21

BEARING, RADIAL BALL (28X52X12)

91051-HA7-671

$33.99

22

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

23

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

24

DUST SEAL (35X52X7.5)

91254-MEE-003

$6.91

25

O-RING (51X2)

91352-MCF-003

$3.77

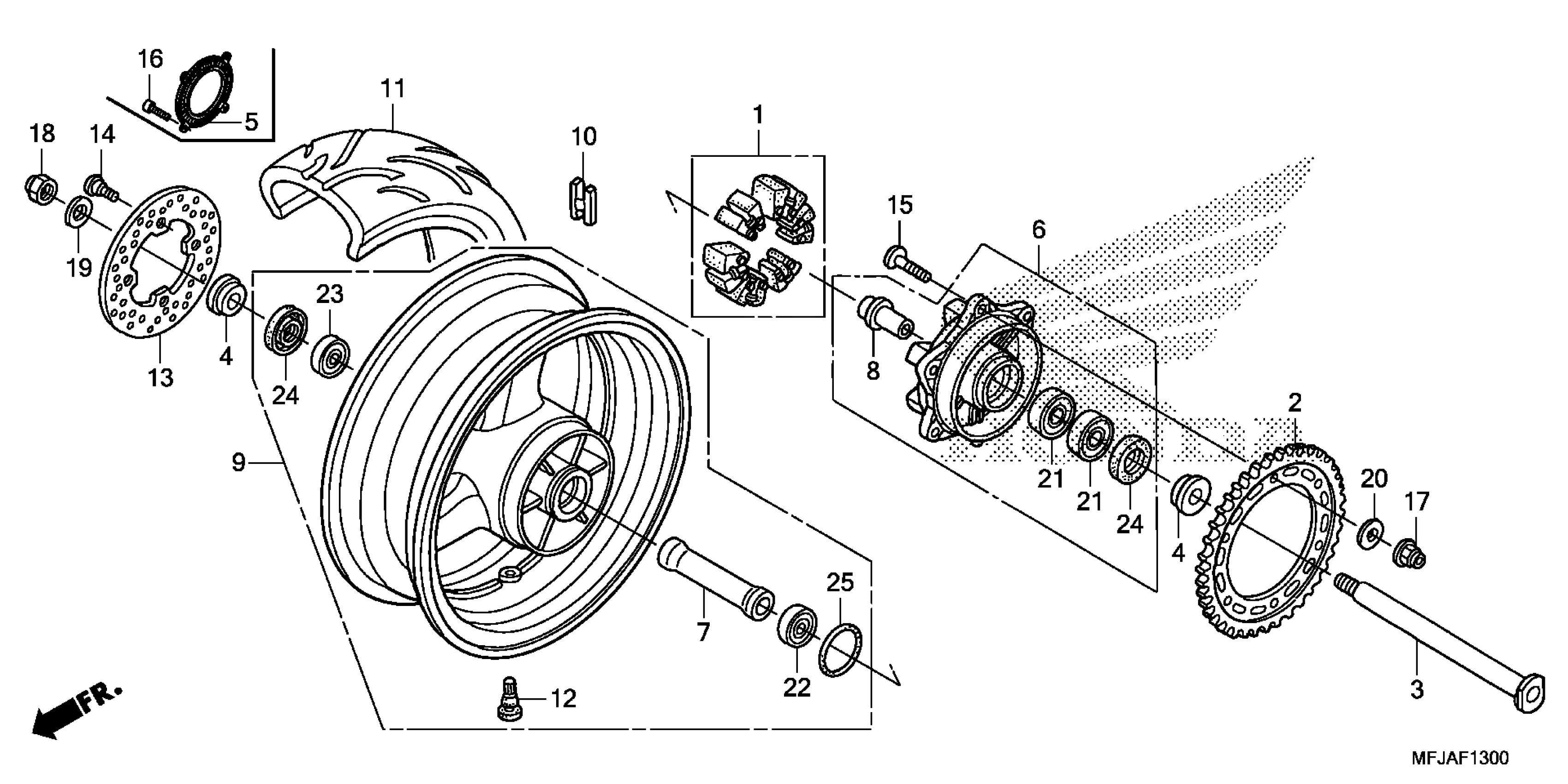

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 REAR WHEEL Diagram
