Description

Price

1

PAN, OIL This part replaces 11210-MFJ-D00.

11210-MFJ-D01

$207.16

1

PAN, OIL

11210-MFJ-D01

$207.16

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70

3

PUMP ASSY., OIL

15100-MFJ-D00

$216.10

4

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MAL-600

$22.90

5

CHAIN, OIL PUMP DRIVE (DID25H-72L)

15141-MFJ-D01

$19.22

6

GUIDE A, OIL PUMP CHAIN

15145-MFJ-D00

$9.20

7

GUIDE B, OIL PUMP CHAIN

15146-MFJ-D00

$7.80

8

STRAINER, OIL

15150-MFJ-D01

$30.96

9

GASKET, OIL STRAINER

15154-MAT-000

$5.73

10

VALVE ASSY., RELIEF

15220-MBW-000

$35.23

11

PIPE A, OIL

15310-MFJ-D01

$71.70

12

PIPE B, OIL

15320-MFJ-D00

$33.29

13

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

14

RING, SEAL

15433-MFJ-D01

$1.88

15

COOLER, OIL

15700-MFJ-D01

$273.14

16

COLLAR, FR. FENDER

61107-MCR-D00

$2.04

17

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

18

BOSS, OIL FILTER

90019-MB0-000

$7.73

19

BOLT, OIL COOLER

90019-MFJ-D00

$58.39

20

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

21

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

21

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.00

22

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$6.72

23

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.12

24

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

24

O-RING (14.8X2.2)

91313-MG7-004

$3.42

25

O-RING, OIL COOLER

91354-MCT-003

$7.08

26

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

27

PIN, DOWEL (8X14)

94301-08140

$2.04

28

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

30

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

31

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

32

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

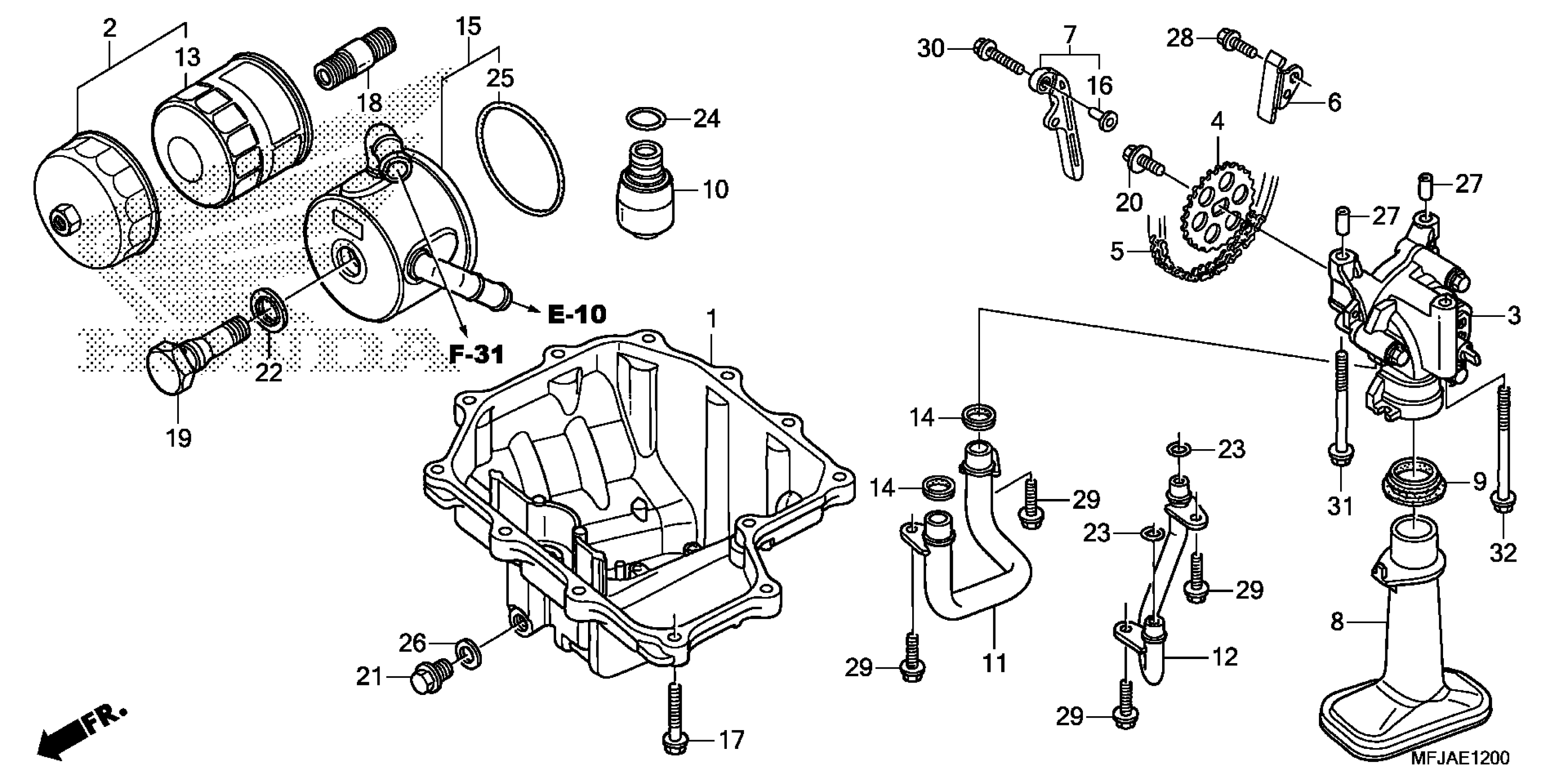

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 OIL PAN + OIL PUMP Diagram
