Description

Price

1

FORK ASSY., R. FR. (COO)

51400-MFJ-308

$1,174.28

2

SPRING, FR. FORK

51401-MFJ-A51

$56.66

3

COLLAR, SPRING

51403-MFJ-D01

$10.51

4

STOPPER, SPRING SEAT

51406-MW4-003

$7.54

5

TUBE (OUTER)

51410-MFJ-661

$440.85

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MFJ-A51

$6.93

10

PIPE, R. SLIDE

51425-MFJ-A51

$326.51

11

DAMPER, FR.

51430-MFJ-A51

$436.34

12

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

13

BOLT, FR. FORK

51450-MFJ-D01

$50.58

14

RING, STOPPER

51455-MEE-D01

$2.44

15

SEAL SET, FR. FORK This part replaces 51490-MEE-D01.

51490-MFF-D01

$25.71

16

FORK ASSY., L. FR. (COO)

51500-MFJ-308

$1,227.44

17

RUBBER, STOPPER

51517-MFJ-D01

$6.79

19

PIPE, L. SLIDE

51525-MFJ-A51

$312.43

20

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.22

21

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

22

BOLT, SOCKET (10X35)

90126-MR7-003

$15.04

23

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

24

O-RING (39.7X2.4)

91258-MEE-D01

$1.96

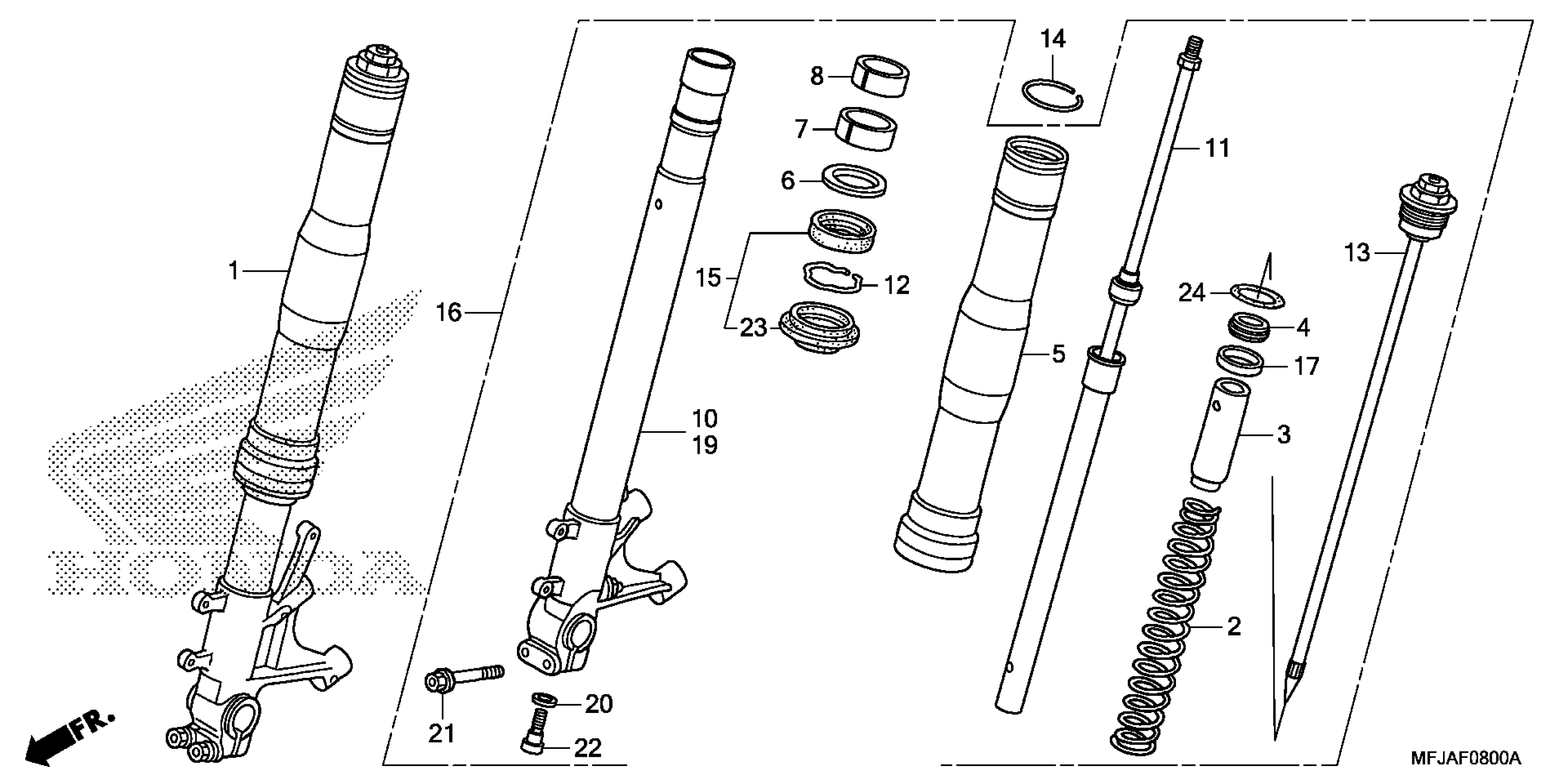

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 FRONT FORK Diagram
