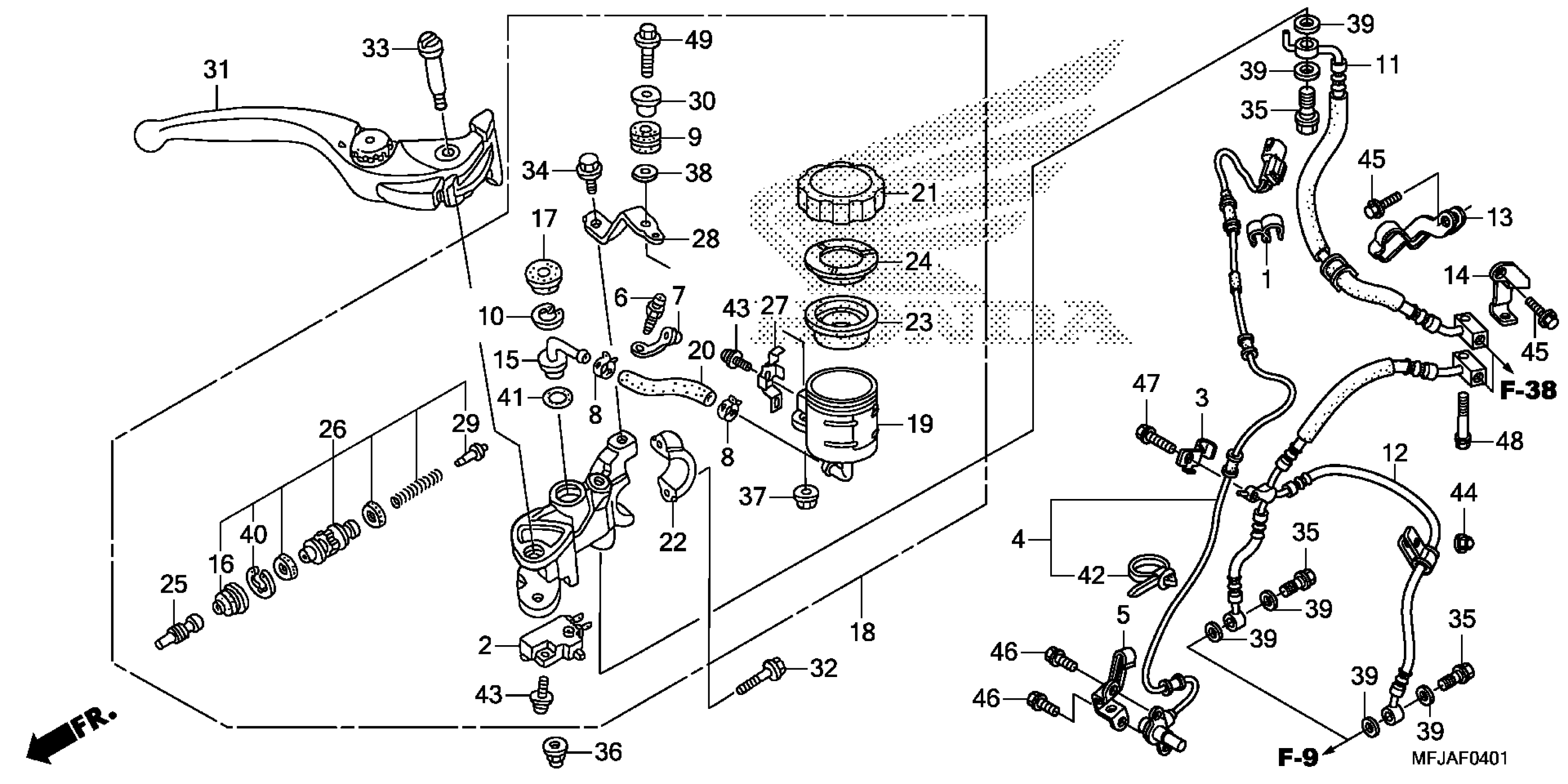

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 FRONT BRAKE MASTER CYLINDER (CBR600RA) Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$6.80

2

SWITCH ASSY., FR. STOP

35340-MEL-003

$13.97

3

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.09

4

SENSOR, FR. WHEEL SPEED

38520-MFJ-A51

$173.93

5

GUIDE, FR. SENSOR WIRE

38525-MFJ-A50

$11.87

6

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

7

CAP, BLEEDER

43353-461-771

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

9

RUBBER, OIL CUP

43516-MCJ-006

$4.29

10

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.65

11

HOSE A, FR. BRAKE

45124-MFJ-A51

$49.01

12

HOSE B, FR. BRAKE

45127-MFJ-A51

$128.69

13

CLAMP, FR. BRAKE HOSE

45159-MFJ-A50

$10.44

14

STAY, FR. BRAKE HOSE

45163-MFJ-A50

$6.78

15

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.65

16

BOOT

45504-MCF-006

$10.31

17

COVER, DUST

45505-KV3-006

$3.97

18

MASTER CYLINDER SUB-ASSY., FR. BRAKE This part replaces 45510-MFJ-305.

45510-MFJ-A41

$236.16

19

CUP, OIL

45511-MEL-D21

$9.05

20

HOSE, MASTER CYLINDER OIL

45512-KV3-951

$4.98

21

CAP, OIL CUP

45513-MEL-D21

$16.92

22

HOLDER, MASTER CYLINDER

45517-MFL-006

$11.63

23

DIAPHRAGM

45520-300-000

$8.34

24

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

25

ROD, PUSH

45525-MEL-016

$13.09

26

MASTER CYLINDER SET

45530-MFJ-D01

$44.32

27

PLATE, STOP

45535-MR8-901

$5.20

28

STAY, FR. MASTER CYLINDER

45550-MFJ-D01

$4.71

29

GUIDE, SPRING

46140-MFJ-D01

$7.40

30

COLLAR (6.3X13)

50324-425-010

$4.51

31

LEVER ASSY., R. HANDLE This part replaces 53170-MEL-305.

53170-MEL-006

$46.84

32

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

33

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

34

BOLT, FLANGE (6X12)

90117-MR7-000

$2.75

35

BOLT, OIL (10X22)

90145-MS9-612

$6.99

36

NUT, CAP (6MM)

90201-415-000

Unavailable

37

NUT, U (6MM)

90301-MG3-000

$6.60

38

WASHER (6X16)

90473-147-000

$1.28

39

WASHER, OIL BOLT

90545-300-000

$5.79

40

CIRCLIP

90651-MCF-006

$2.09

41

O-RING (14.8X2.4)

91212-422-006

$2.37

42

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

Unavailable

43

SCREW-WASHER (4X12)

93893-04012-07

$1.32

43

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

44

NUT, CAP (6MM)

94021-06070-0S

$1.60

45

BOLT, FLANGE (6X12)

96001-06012-07

$1.79

46

BOLT, FLANGE (6X14)

96001-06014-07

$1.10

47

BOLT, FLANGE (6X18)

96001-06018-07

$1.16

48

BOLT, FLANGE (6X35)

96001-06035-07

$2.75

49

BOLT, FLANGE (6X28)

96300-06028-07

$1.66
