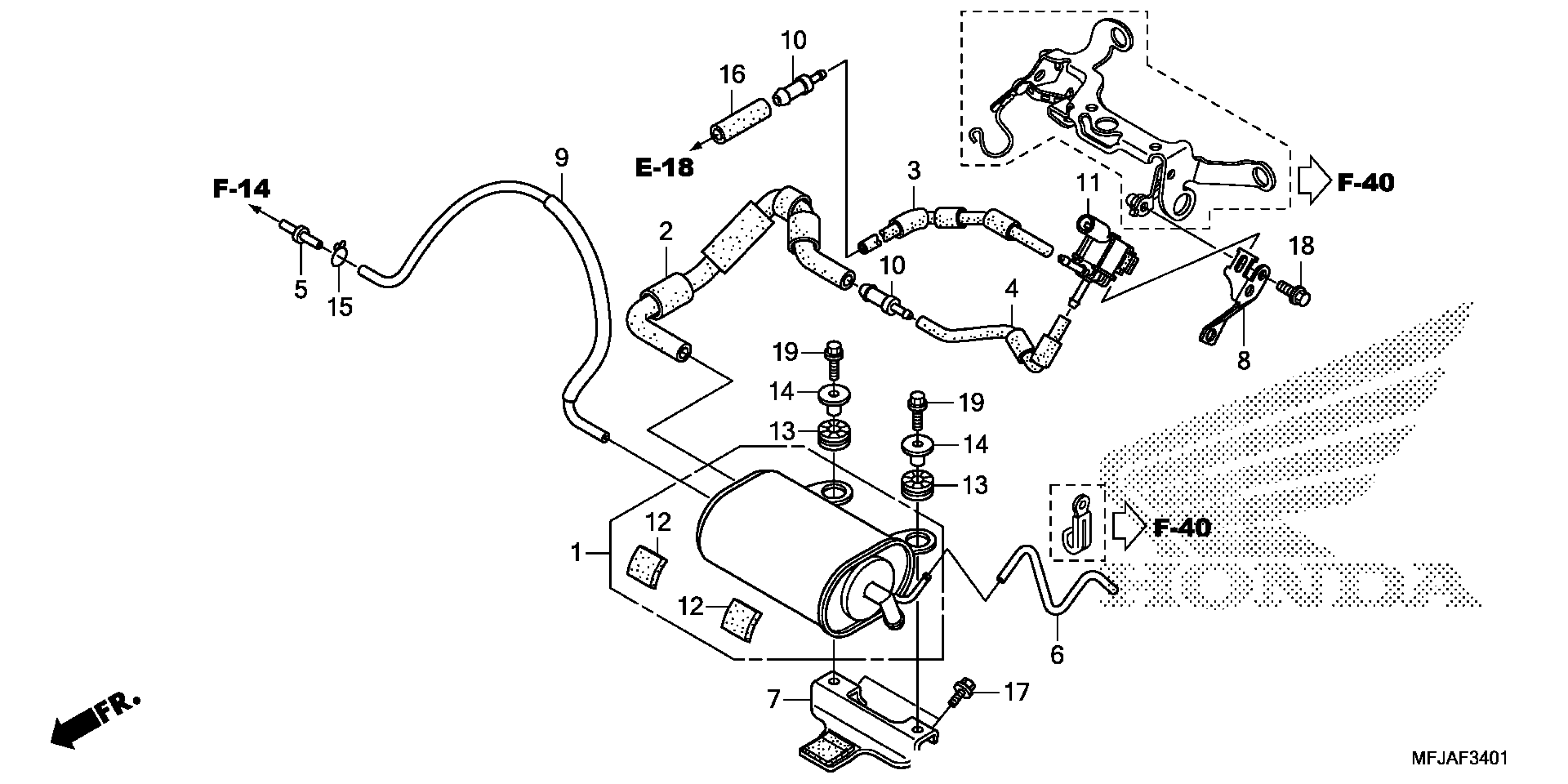

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 EVAP CANISTER (CBR600RA) Diagram

EVAPORATIVE EMISSION CANISTER

17410-MFJ-L00

$268.37

TUBE A, CANISTER PURGE CONTROL VALVE

17412-MFJ-L40

$18.65

TUBE, FIVE WAY-PURGE CONTROL VALVE

17413-MFJ-L40

$10.09

TUBE B, CANISTER PURGE CONTROL VALVE

17414-MFJ-L40

$7.44

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$9.87

TUBE, CANISTER DRAIN

17434-MFJ-L00

$4.74

STAY, CANISTER

17440-MFJ-L00

$16.04

STAY, PCS

17445-MFJ-L40

$15.03

TUBE (CANISTER-2WAY)

17556-MFJ-L40

$21.57

JOINT, BREATHER TUBE

17561-MEE-000

$4.26

VALVE ASSY., PURGE CONTROL SOLENOID

36160-P0A-A01

$522.28

RUBBER, BATTERY

50328-HP1-600

$1.50

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

COLLAR (6.2X13)

90501-MA3-720

$4.58

CLIP, TUBE (B8)

95002-02080

$1.62

BULK HOSE, VACUUM (8X1000) (8X50)

95005-80001-20M

$29.17

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

BOLT, FLANGE (6X10)

96001-06010-00

$1.60

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
