Description

Price

1

CYLINDER HEAD ASSY.

12010-MFJ-A40

$1,330.26

2

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-MBW-305

$15.97

3

GUIDE, VALVE (OVER SIZE)

12204-MFJ-305

$18.83

4

GASKET, CYLINDER HEAD

12251-MFJ-D01

$73.03

5

GASKET, PLUG HOLE

12395-MBW-003

$4.66

6

INSULATOR, THROTTLE BODY

16210-MFJ-D00

$63.95

7

BAND, INSULATOR

16217-MFJ-D00

$4.98

8

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

9

SPARK PLUG (IMR9E-9HES) (NGK)

31912-MFL-003

$16.38

9

SPARK PLUG (VUH27D) (DENSO)

31922-MBW-E12

$32.60

10

PULSER ASSY., CAM

36140-MFJ-D01

$66.05

11

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

12

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.51

13

BOLT-WASHER (9X90)

90007-MBW-000

$8.57

14

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

15

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

16

BOLT, STUD (8X24)

90035-MM5-000

$5.12

17

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

18

O-RING (40X2.5)

91301-MFJ-D00

$4.75

19

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.93

20

CLIP (2X60)

91410-679-000

$10.06

21

PIN, DOWEL (8X20)

94301-08200

$2.25

22

PIN, DOWEL (10X16)

94301-10160

$2.28

23

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

24

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

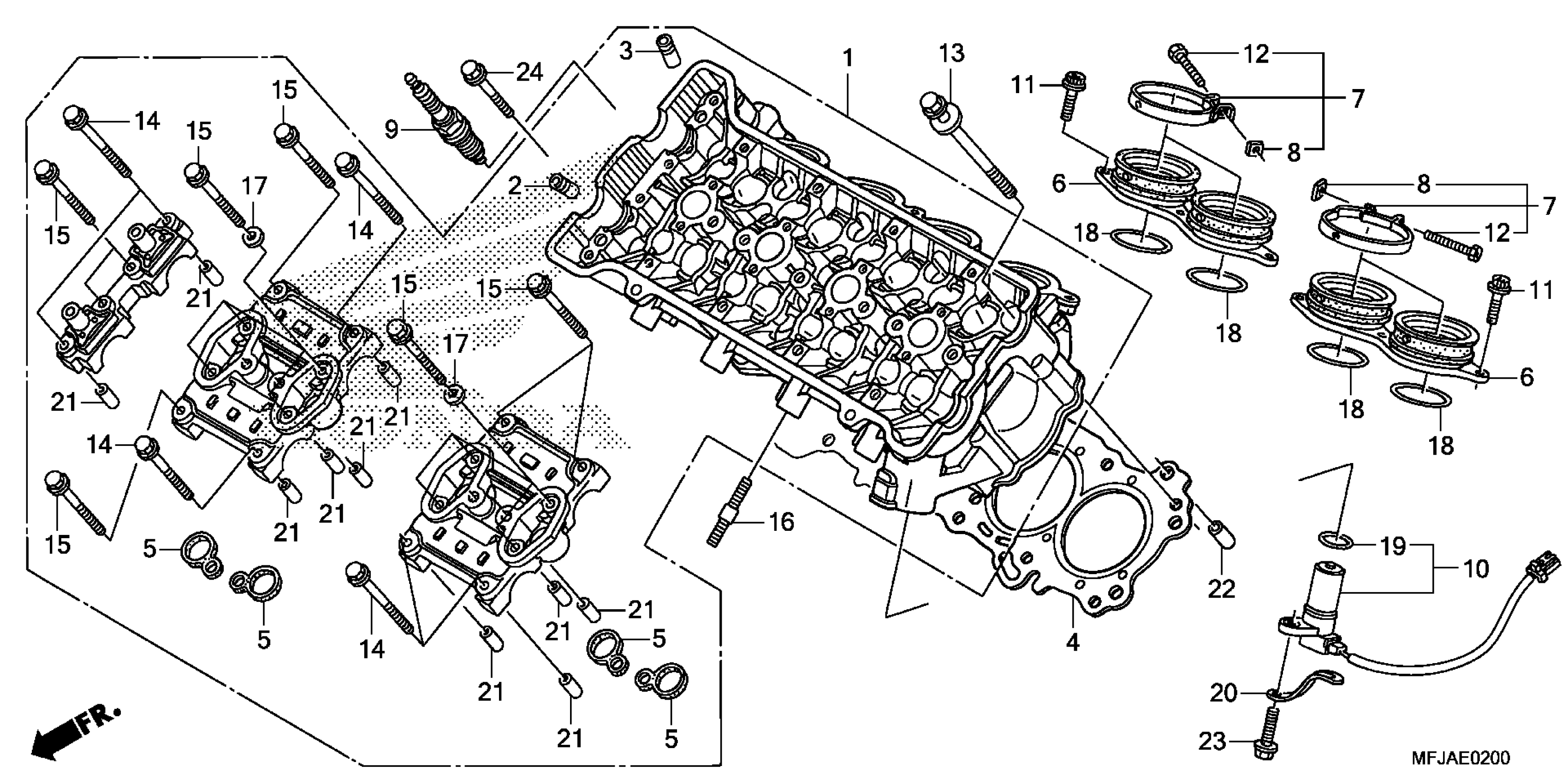

Honda CBR600RAAC (12) MOTORCYCLE, JPN, VIN# JH2PC408-CK500001 CYLINDER HEAD Diagram
