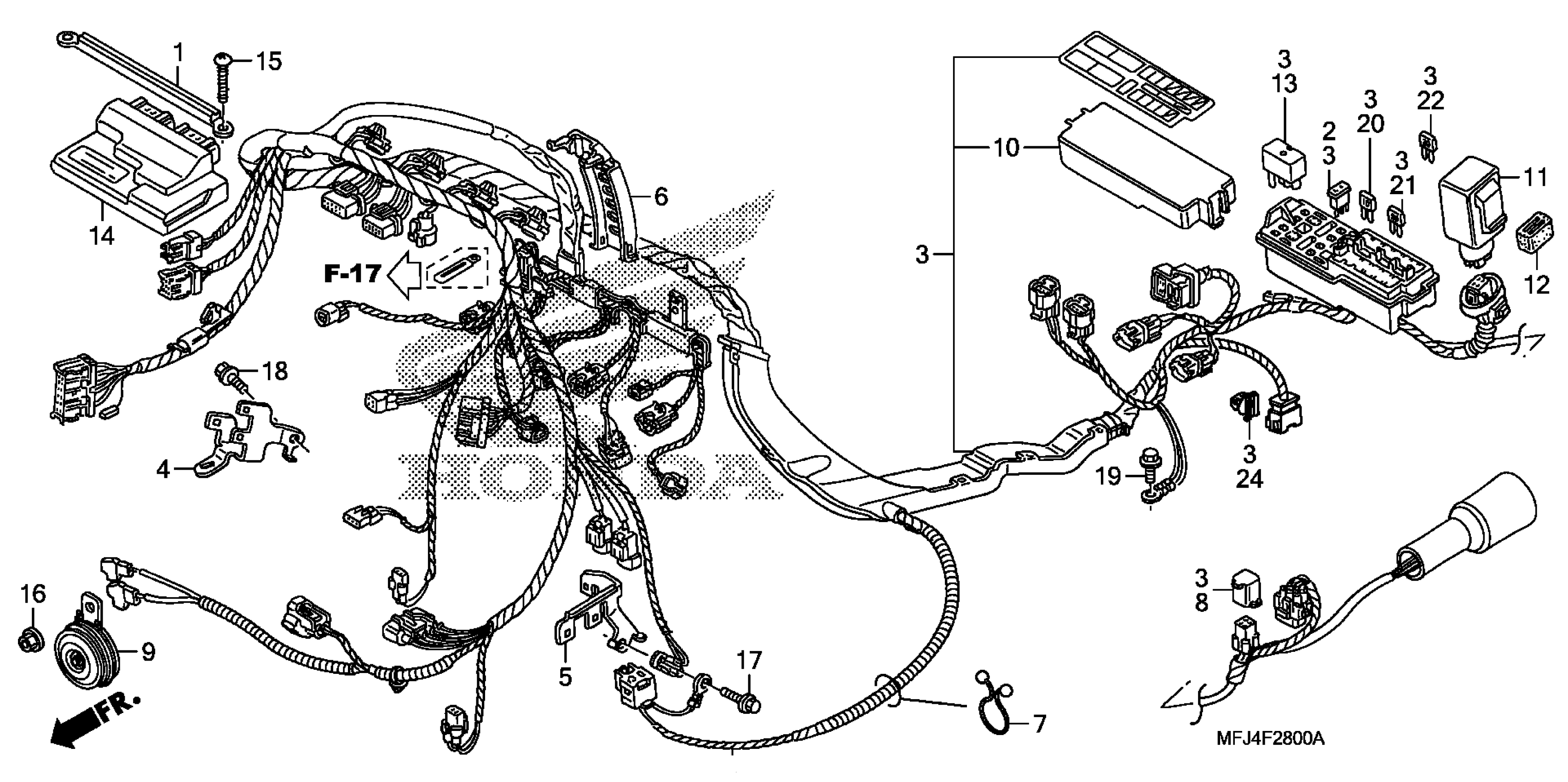

Honda CBR600RAAC (11) MOTORCYCLE, JPN, VIN# JH2PC408-BK400001 WIRE HARNESS Diagram

#

Description
Price

1

PLATE, PGM-FI UNIT

17239-MFJ-D00

$2.38

2

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

3

WIRE HARNESS

32100-MFJ-L40

$1,045.97

4

BRACKET, R. FR. CONNECTOR

32121-MFJ-A50

$3.65

5

BRACKET, L. CONNECTOR

32125-MFJ-D00

Unavailable

6

COVER, PROTECTOR B

32155-MFJ-D00

$4.56

7

LOCK, PURSE

32171-GF9-621

$1.97

8

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.18

9

HORN (HIGH)

38110-MFJ-A50

$63.07

10

COVER (UPPER)

38252-MFJ-D01

$10.32

11

RELAY, TURN SIGNAL (DENSO)

38301-MBW-D21

$42.64

12

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

Unavailable

13

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

Unavailable

14

PGM-FI UNIT

38770-MFJ-L33

$1,093.74

15

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$1.90

16

NUT, FLANGE (8MM)

94050-08070

$1.38

17

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

18

BOLT, FLANGE (6X12)

96001-06012-07

$1.66

19

BOLT, FLANGE (6X12)

96300-06012-00

$0.87

20

FUSE, MINI (10A)

98200-41000

$1.22

21

FUSE, MINI (20A)

98200-42000

$1.12

22

FUSE, MINI (30A)

98200-43000

$1.62

24

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.35
