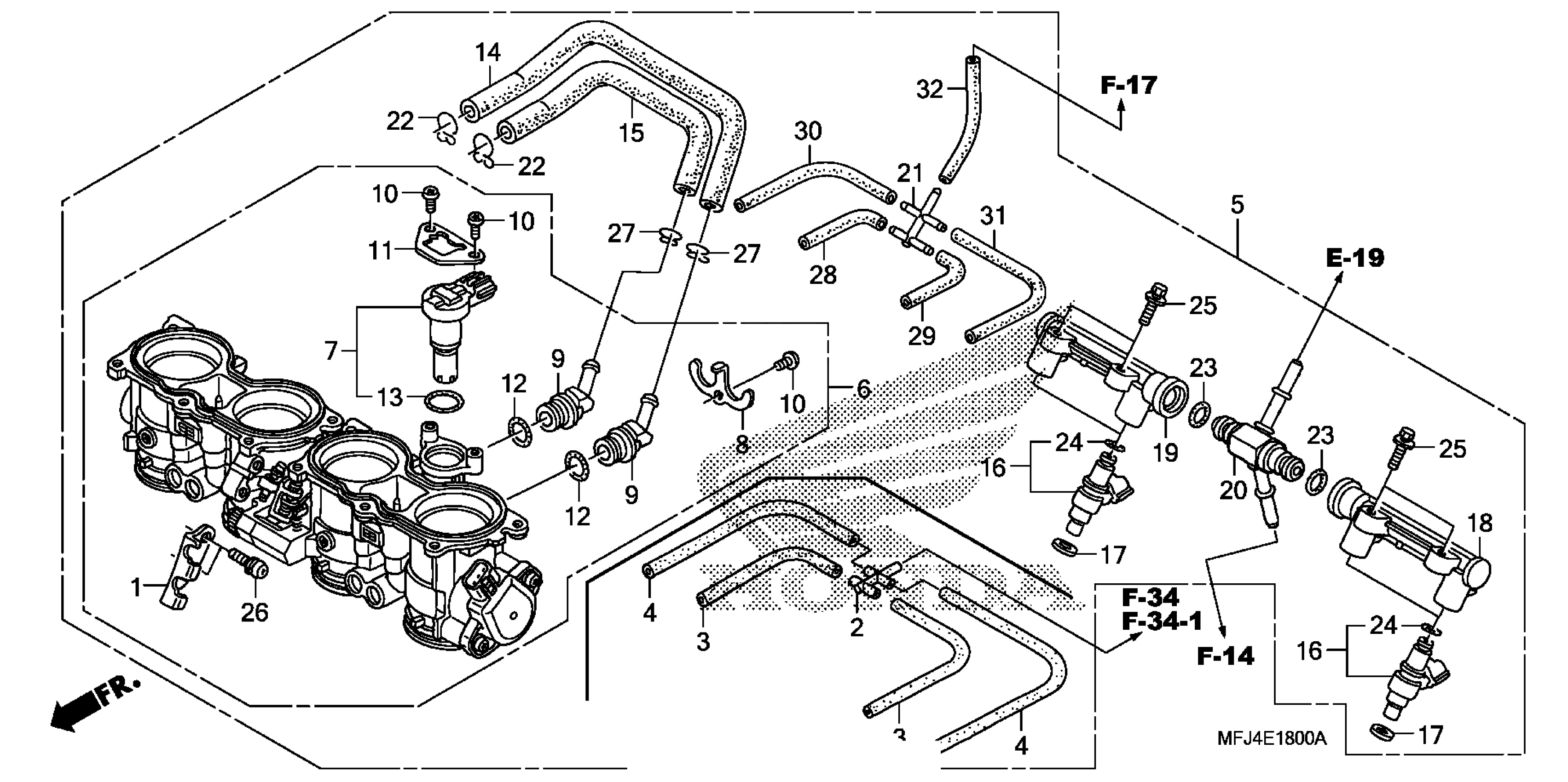

Honda CBR600RAAC (11) MOTORCYCLE, JPN, VIN# JH2PC408-BK400001 THROTTLE BODY Diagram

#

Description
Price

1

STAY, WIRE

16169-MEE-013

$14.67

2

T-JOINT

16180-ME5-761

$31.64

3

TUBE

16196-MBW-L11

$3.10

4

TUBE

16197-MFJ-L01

$6.51

5

BODY ASSY., THROTTLE (GQ64B A)

16400-MFJ-L01

$1,996.20

6

BODY ASSY., THROTTLE

16401-MFJ-L01

$1,224.31

7

MOTOR ASSY.

16430-MFJ-D01

$164.85

8

PLATE, JOINT

16431-MFJ-D01

$8.28

9

JOINT, IDLE AIR CONTROL VALVE

16432-MFJ-D01

$9.23

10

SCREW, TORX

16433-HN8-A61

$1.49

11

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

12

O-RING

16434-MFJ-D01

$3.03

13

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

14

TUBE (A)

16440-MFJ-D01

$12.20

15

TUBE (B)

16441-MFJ-D01

$12.20

16

INJECTOR ASSY., FUEL

16450-MFJ-D01

$187.28

17

SEAL RING, INJECTOR

16472-MCW-000

$2.39

18

PIPE A, FUEL

16610-MFA-D01

$66.85

19

PIPE B, FUEL

16620-MFA-D01

$66.85

20

JOINT, FUEL

16650-MFJ-D01

$74.49

21

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

22

CLIP, TUBE (13.3)

90661-MFL-003

$1.49

23

O-RING (7.47X3.6)

91301-PLC-000

$3.11

24

O-RING (7.8X1.9)

91301-P7A-004

$3.35

25

BOLT-WASHER (5X20)

93401-05020-00

$1.49

26

SCREW-WASHER (5X12)

93892-05012-00

$1.49

26

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

27

CLIP, TUBE (B12.5)

95002-02139

$1.49

28

BULK HOSE, VACUUM (3.5X1000) (3.5X55)

95005-35001-20M

$9.67

29

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-20M

$9.67

30

BULK HOSE, VACUUM (3.5X1000) (3.5X115)

95005-35001-20M

$9.67

31

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$9.67

32

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-20M

$9.67
