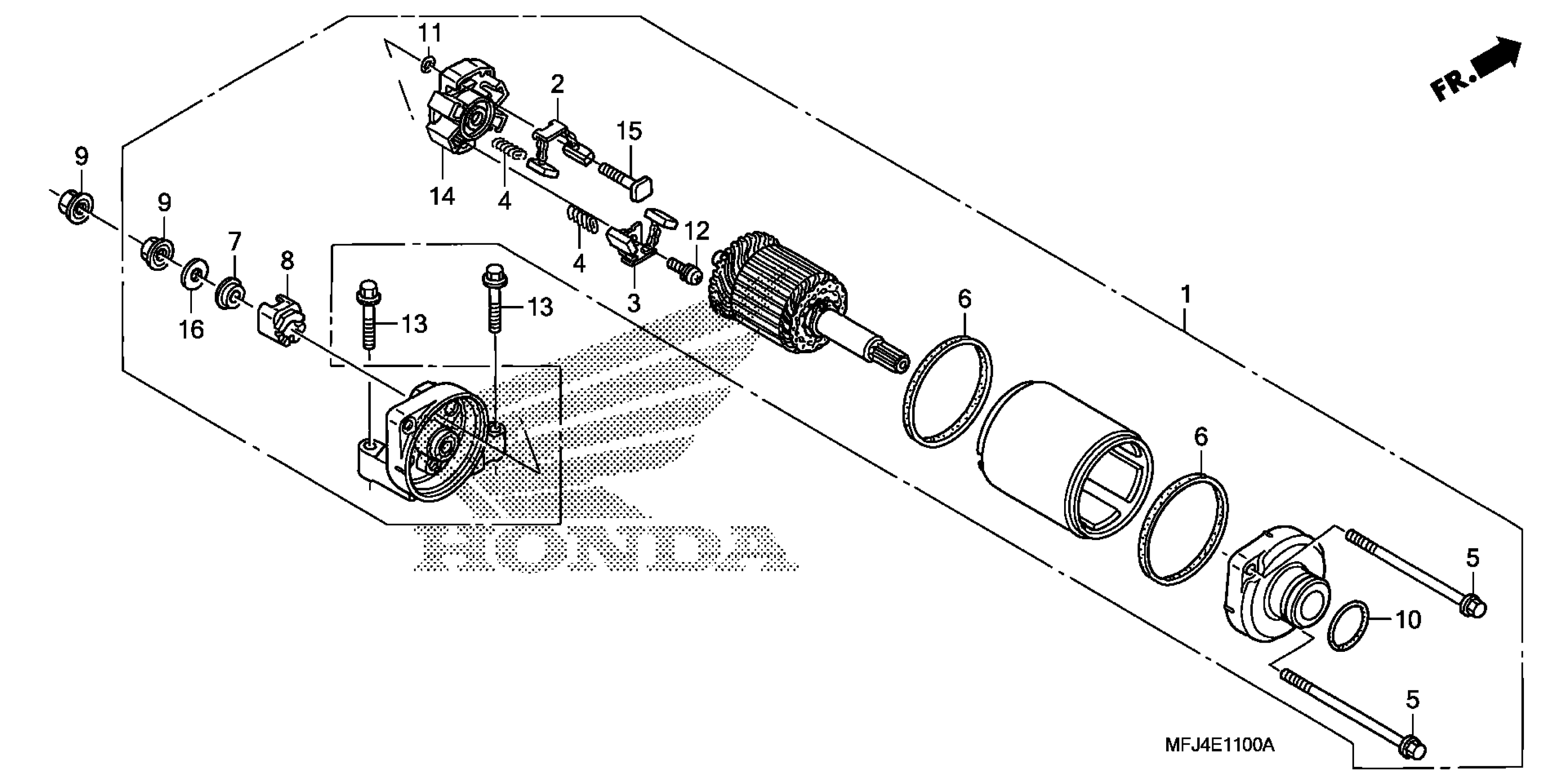

Honda CBR600RAAC (11) MOTORCYCLE, JPN, VIN# JH2PC408-BK400001 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MFJ-D01

$507.49

2

BRUSH SET A, CARBON

31201-MEW-921

$7.43

3

BRUSH SET B, CARBON

31202-MEW-921

$12.01

4

SPRING, CARBON BRUSH

31204-MEW-921

$11.58

5

BOLT, SETTING

31205-MFJ-D01

$3.41

6

RING

31207-HP5-601

$1.99

7

INSULATOR

31208-MEW-921

$7.07

8

STOPPER, TERMINAL

31209-MEW-921

$10.50

9

NUT-WASHER (6MM)

90071-MB0-000

$1.91

10

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

10

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

11

O-RING (4X2)

91320-MB0-000

$2.24

12

SCREW-WASHER (5X12)

93892-05012-08

$1.06

13

BOLT, FLANGE (6X30)

95801-06030-00

$0.87

14

HOLDER, BRUSH

31203-MEW-921

$7.14

15

BOLT, TERMINAL

31206-MEW-921

$2.71

16

WASHER

31210-MEW-921

$1.68
