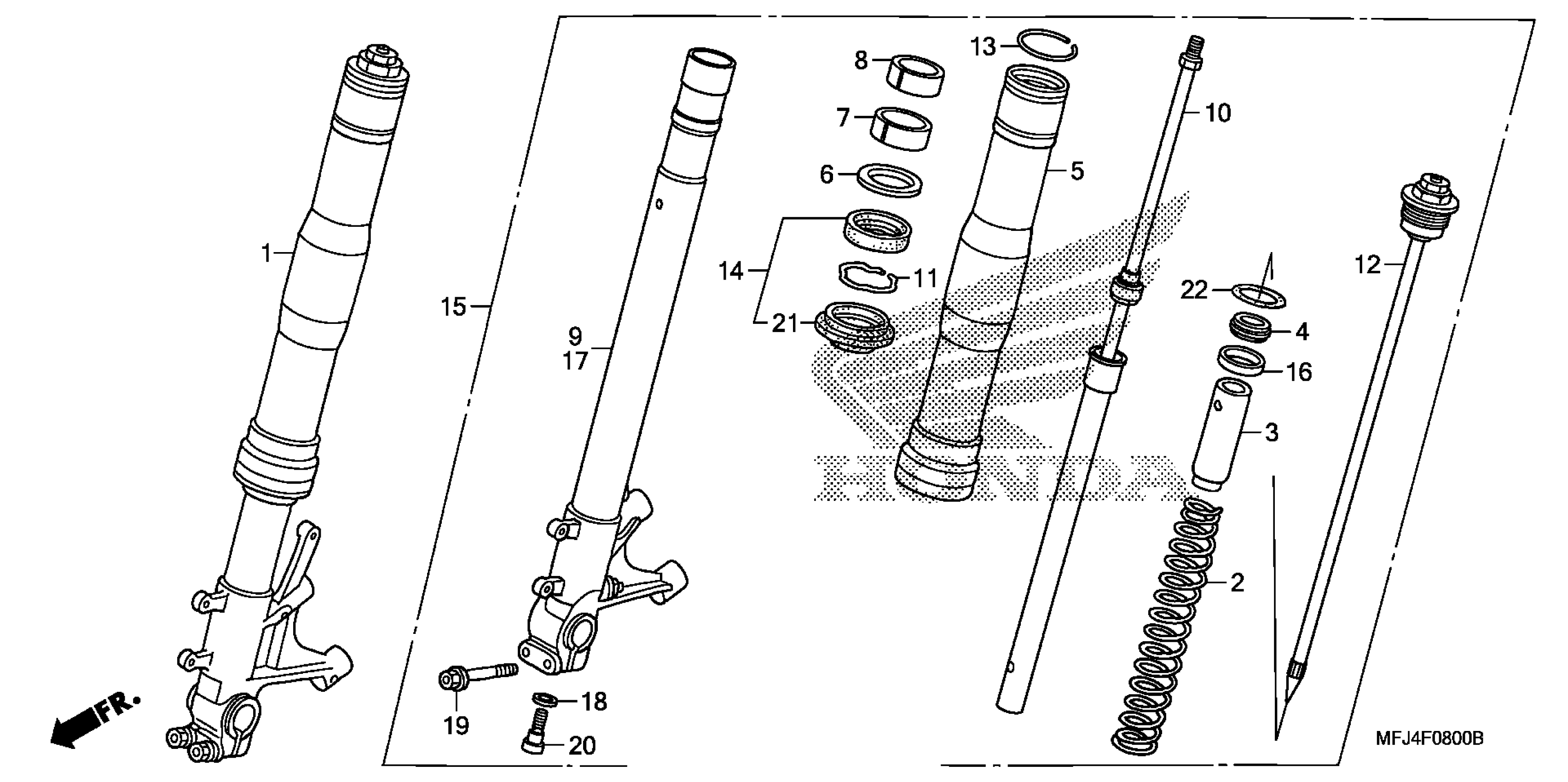

Honda CBR600RAAC (11) MOTORCYCLE, JPN, VIN# JH2PC408-BK400001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MFJ-A51

$954.63

1

FORK ASSY., R. FR. This part replaces 51400-MFJ-305.

51400-MFJ-A51

$954.63

2

SPRING, FR. FORK

51401-MFJ-A51

$56.66

3

COLLAR, SPRING

51403-MFJ-D01

$10.51

4

STOPPER, SPRING SEAT

51406-MW4-003

$7.54

5

TUBE (OUTER) (COO)

51410-MFJ-305

$413.37

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MFJ-A51

$6.93

9

PIPE, R. SLIDE

51425-MFJ-A51

$326.51

10

DAMPER, FR.

51430-MFJ-A51

$436.34

11

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

12

BOLT, FR. FORK

51450-MFJ-D01

$50.58

13

RING, STOPPER

51455-MEE-D01

$2.44

14

SEAL SET, FR. FORK This part replaces 51490-MEE-D01.

51490-MFF-D01

$25.71

15

FORK ASSY., L. FR.

51500-MFJ-A51

$954.63

15

FORK ASSY., L. FR. This part replaces 51500-MFJ-305.

51500-MFJ-A51

$954.63

16

RUBBER, STOPPER

51517-MFJ-D01

$6.79

17

PIPE, L. SLIDE

51525-MFJ-A51

$312.43

18

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.22

19

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

20

BOLT, SOCKET (10X35)

90126-MR7-003

$15.04

21

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

22

O-RING (39.7X2.4)

91258-MEE-D01

$1.96
