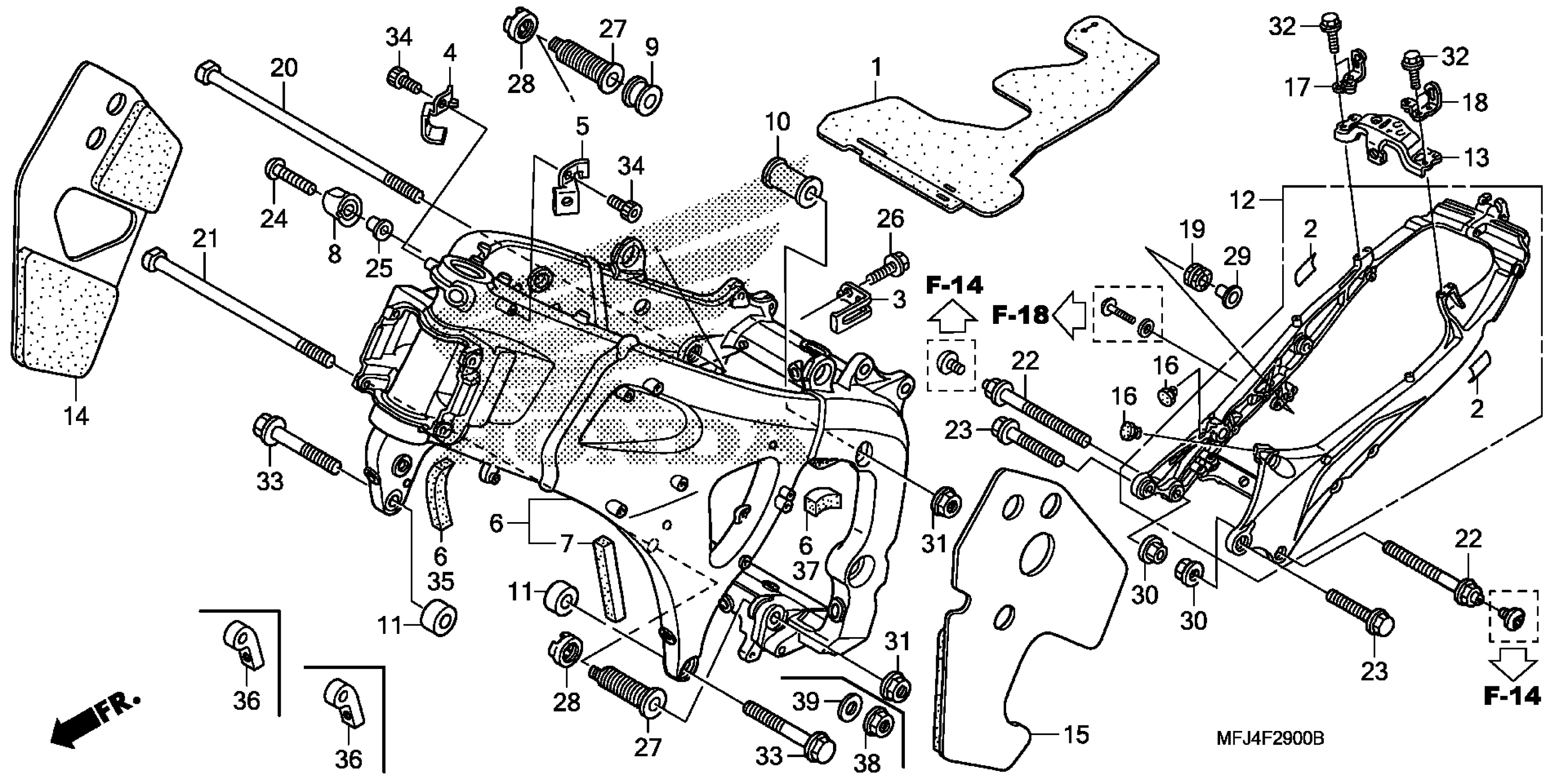

Honda CBR600RAAC (11) MOTORCYCLE, JPN, VIN# JH2PC408-BK400001 FRAME Diagram

#

Description
Price

1

MAT, ENGINE GUARD RUBBER

17285-MFJ-A01

$45.19

2

PROTECTOR

17518-MY9-690

$2.79

4

CLAMP, R. WIRE PROTECTOR

35107-MFJ-D00

$6.38

5

CLAMP, L. WIRE PROTECTOR

35108-MFJ-D00

$6.38

6

FRAME SET *NH461M* (TEMPLE BLACK METALLIC) | Graphite black NHB01;

50010-MFJ-A50ZA

$1,613.19

7

MAT, L. ENGINE HANGER

50131-MFJ-D00

$1.75

8

GUARD, WATER PIPE

50141-MFJ-D00

$5.46

9

COLLAR C, R. ENGINE HANGER

50192-MFJ-D00

$6.82

10

COLLAR C, L. ENGINE HANGER

50193-MFJ-D00

$10.69

12

RAIL ASSY., SEAT

50200-MFJ-A50

$518.72

13

PLATE, CENTER CROSS

50204-MFJ-D00

$28.90

14

MAT, R. FRAME GUARD

50315-MFJ-D00

$24.87

15

MAT, L. FRAME GUARD

50325-MFJ-D00

$24.87

16

RUBBER, LINK STOPPER

50352-GS6-000

$4.31

17

GUIDE, R. HOOK

77105-MFJ-D00

$6.09

18

GUIDE, L. HOOK

77106-MFJ-D00

$6.09

19

RUBBER A, MOUNTING

80119-MEL-000

$2.32

20

BOLT, SPECIAL (12X288)

90101-MFJ-D00

$18.42

21

BOLT, SPECIAL (12X220)

90103-MFJ-A40

$13.28

22

BOLT, FLANGE (10X45)

90112-MFJ-D00

$5.34

23

BOLT, FLANGE (10X32) (DR)

90113-MFJ-D00

$2.47

24

SCREW, PAN (6X20)

90118-MEJ-J00

$1.97

25

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.20

27

BOLT, ADJUSTING (20X48.5)

90152-MFJ-D00

$14.32

28

NUT, LOCK (20MM) (P=1.0)

90303-MFJ-D00

$6.91

29

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.96

30

NUT, FLANGE (10MM)

94050-10000

$1.43

31

NUT, FLANGE (12MM)

94050-12000

$0.96

32

BOLT, FLANGE (6X16)

96300-06016-00

Unavailable

33

BOLT, FLANGE (12X60)

96400-12060-00

$2.80

34

BOLT, SOCKET (6X10)

96600-06010-07

$1.19

34

BOLT, SOCKET (6X10) This part replaces 96700-06010-07.

96600-06010-07

$1.19

35

MAT, R. ENGINE HANGER

50134-MFJ-J00

$1.66

36

COLLAR A, FR. ENGINE MOUNT

50194-MFJ-A50

$16.12

37

MAT D, L. COWL (LOWER)

64468-MFJ-A50

$1.59

38

NUT, FLANGE (12MM)

90371-MFL-000

$1.60

39

WASHER, SPECIAL (24X12X2.3)

90439-SB2-010

$13.41
