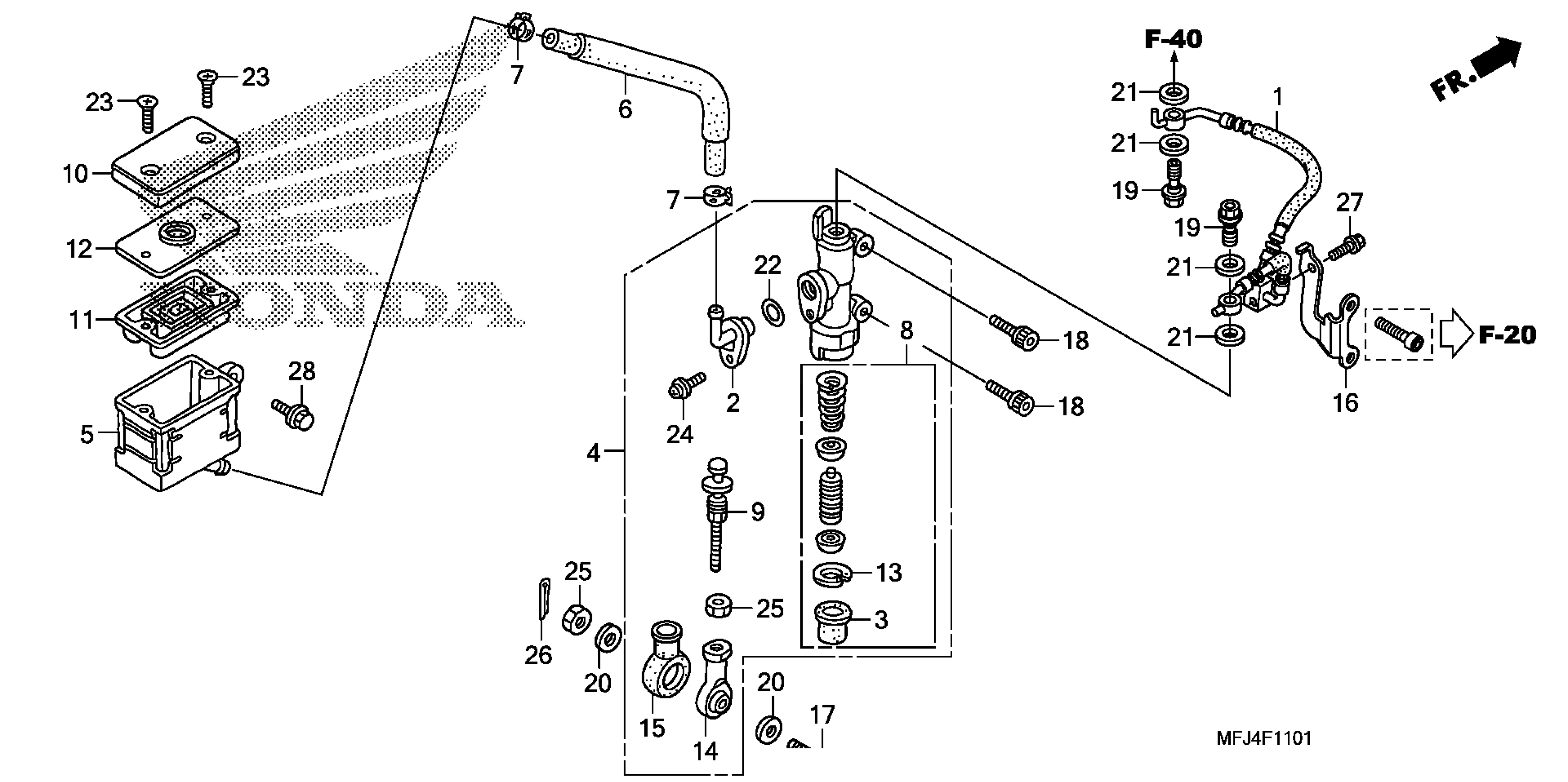

Honda CBR600RAA (09) MOTORCYCLE, JPN, VIN# JH2PC407-9K200001 TO JH2PC407-9K299999 REAR BRAKE MASTER CYLINDER (CBR600RA) Diagram

HOSE A, RR. BRAKE

43310-MFJ-A51

$62.87

CONNECTOR

43503-MEE-006

$6.56

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR.

43510-MFJ-D01

$131.51

CUP, OIL

43511-KV3-831

$21.29

HOSE, RR. MASTER CYLINDER

43512-MFJ-D01

$14.49

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH

43530-MCZ-006

$22.33

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-MEL-D21

$1.77

TIE ROD

46505-MFJ-D01

$57.91

COVER, DUST

46506-MFJ-D00

$7.07

STAY, RR. HOSE

57461-MFJ-A50

$10.30

BOLT, SOCKET (8X30)

90125-MCJ-750

$6.07

BOLT, SOCKET (6X20)

90135-MEL-000

$1.48

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.42

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, SPLIT (2.0X15)

94201-20150

$0.94

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

BOLT, FLANGE (6X16)

96300-06016-00

$0.86
