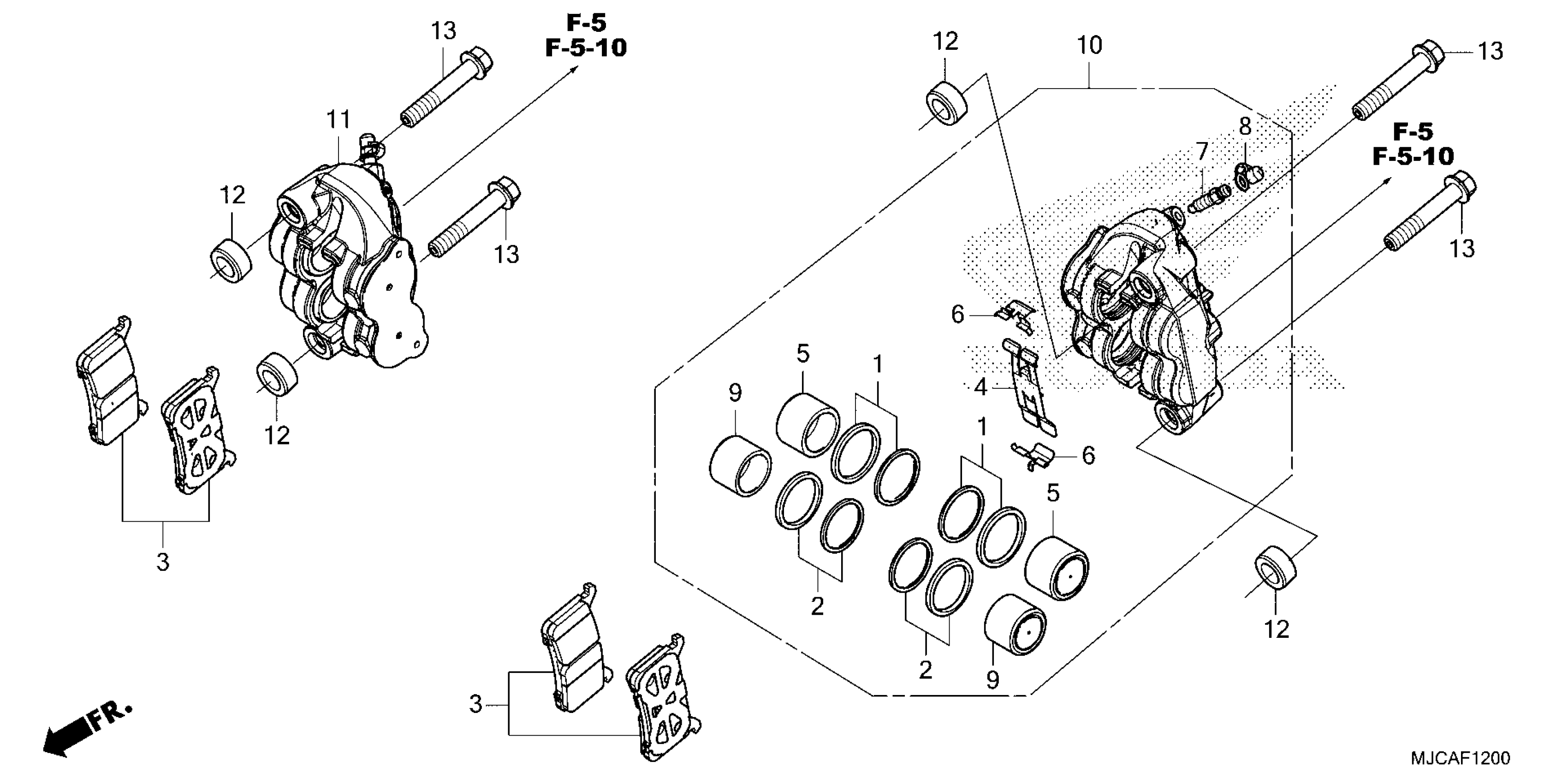

Honda CBR600RA7AC (24) MOTORCYCLE, JPN, VIN# JH2PC408-RK800001 TO JH2PC408-RK899999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (32)

06451-MEL-003

$4.80

2

SEAL SET, PISTON (30)

06452-MEL-003

$4.80

3

PAD SET, FR.

06455-MJM-D41

$56.32

4

SPRING, PAD

45106-MJM-D31

$9.51

5

PISTON (32)

45107-MFL-013

$40.91

6

RETAINER, PAD

45108-MJM-D31

$5.56

7

SCREW, BLEEDER

45111-MEL-013

$2.11

8

CAP, BLEEDER

45112-MEL-003

$1.49

9

PISTON (30)

45117-MFL-013

$39.45

10

CALIPER SUB-ASSY., L. FR.

45150-MJC-M61

$373.98

11

CALIPER SUB-ASSY., R. FR.

45250-MJC-M61

$373.98

12

SPACER, FR. FORK

51497-MEL-000

$5.12

13

BOLT, FLANGE (10X57)

90131-MEL-000

$17.49
