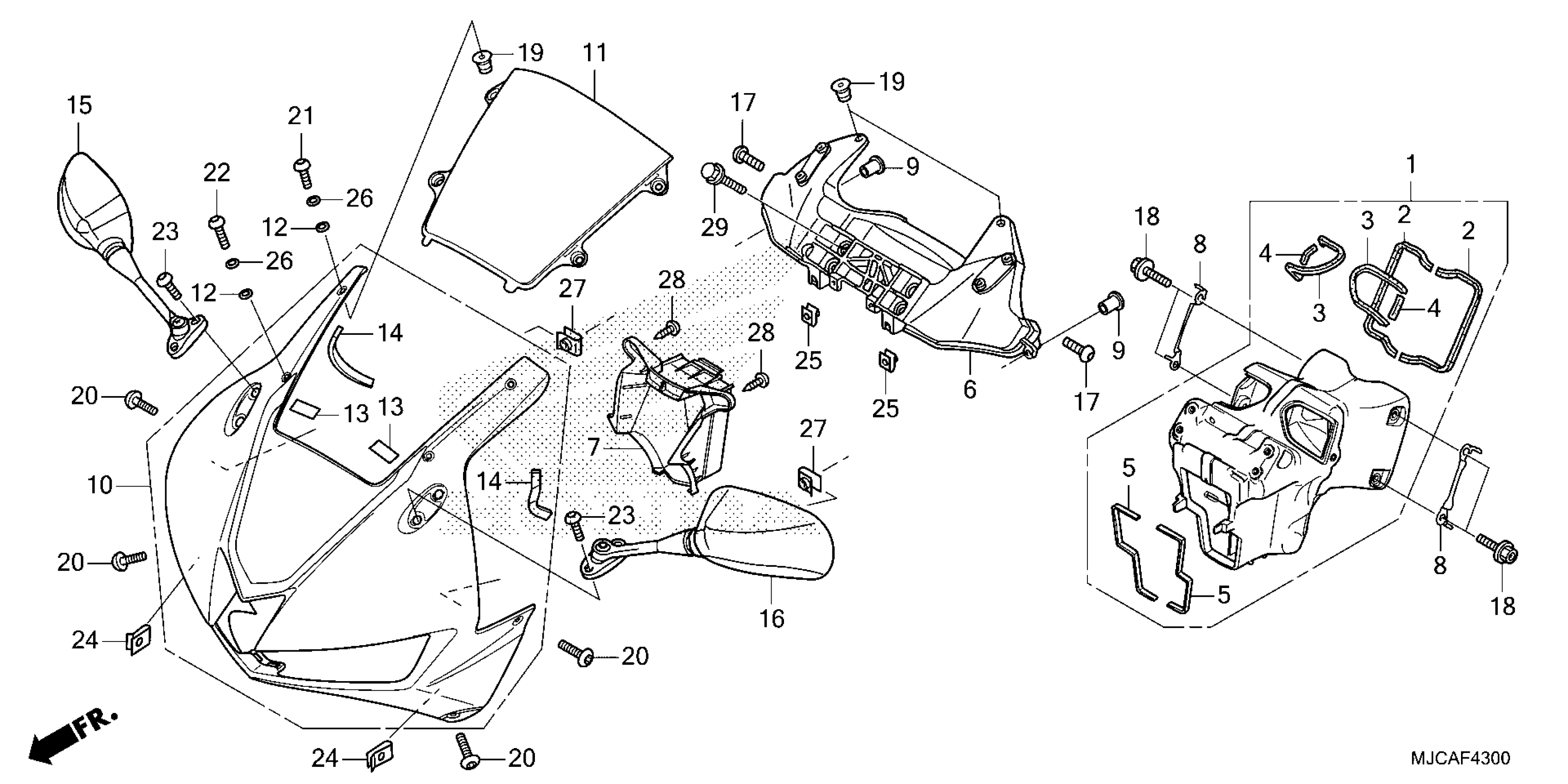

Honda CBR600RA7AC (23) MOTORCYCLE, JPN, VIN# JH2PC408-PK700001 TO JH2PC408-PK799999 UPPER COWL@MIRROR Diagram

DUCT, AIR IN.

17300-MJC-A00

$185.72

SEAL A, AIR IN. DUCT

17311-MJC-A00

$4.23

SEAL B, AIR IN. DUCT

17312-MJC-A00

$3.36

SEAL C, AIR IN. DUCT

17313-MJC-A00

$1.93

SEAL D, AIR IN. DUCT

17314-MJC-A00

$2.80

STAY, MIRROR & METER

17340-MFJ-A40

$102.83

COVER, IN.

17360-MJC-A00

$22.13

WASHER, TONGUED

17390-MFJ-D00

$3.58

COLLAR, FAN COVER

19619-ZM7-300

$2.07

COWL SET (UPPER) *R380* (WL) (GRAND PRIX RED)

64100-MJC-N80ZA

$661.63

WINDSCREEN

64200-MJC-A00

$176.49

WASHER, SCREEN SETTING

64205-166-610

$2.21

FILM, PROTECTOR

64215-MJC-A00

$3.57

MAT B, DUCT

64354-MFL-000

$1.90

MIRROR ASSY., R. BACK (COO) This part replaces 88110-MEL-013.

88110-MEL-305

$88.98

MIRROR ASSY., L. BACK (COO) This part replaces 88120-MEL-013.

88120-MEL-305

$76.21

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.67

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

BOLT, SPECIAL (5X16)

90119-MFL-D20

$2.31

BOLT, SPECIAL (5X23)

90119-MJC-A00

$5.73

BOLT, SOCKET (6X13)

90130-MEE-000

$1.90

NUT, SPRING (4MM)

90302-SA4-003

$5.44

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER, THRUST (5MM)

90504-964-000

$1.90

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
