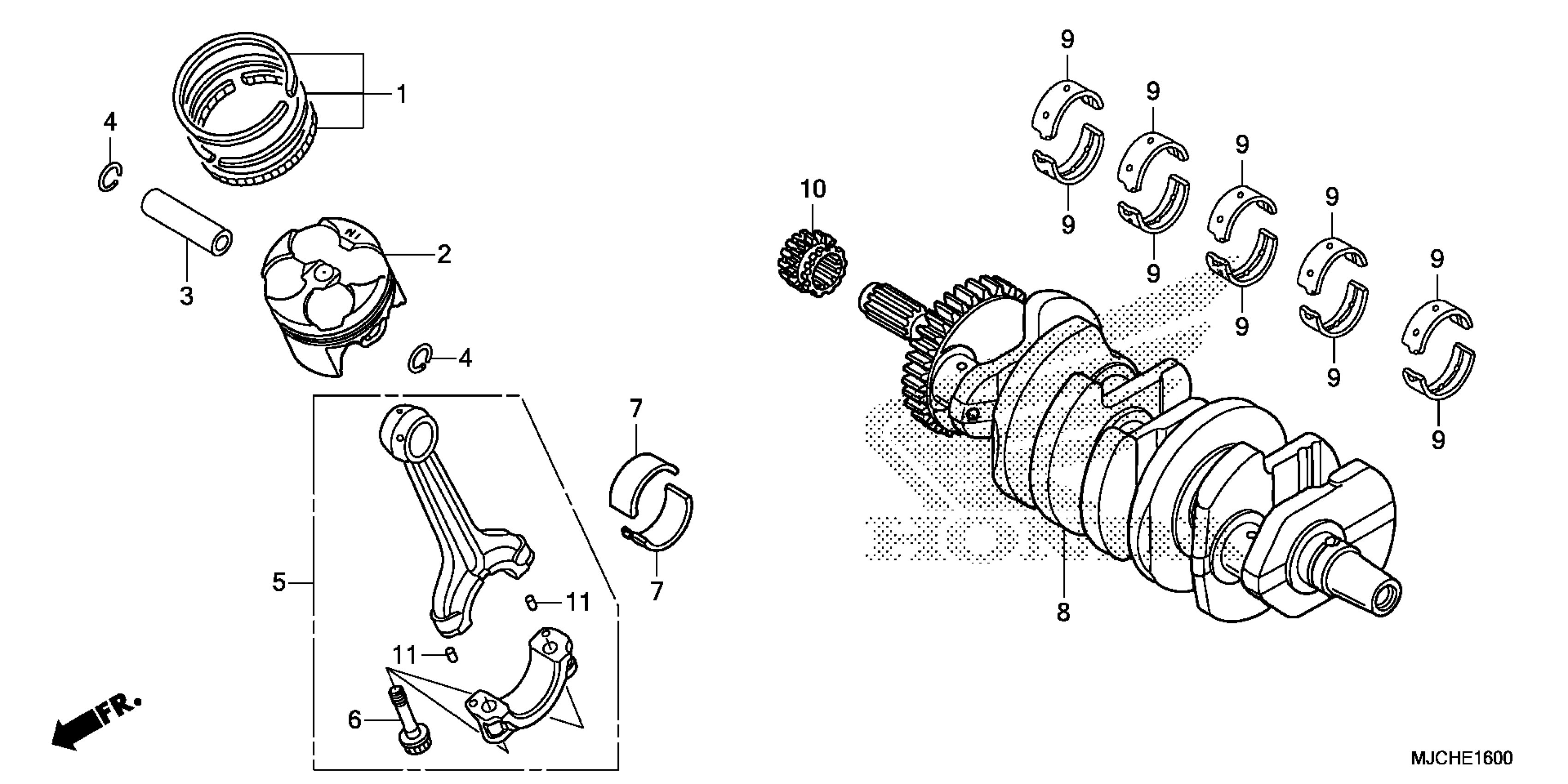

Honda CBR600RA7AC (20) MOTORCYCLE, JPN, VIN# JH2PC408-LK400001 TO JH2PC408-LK499999 CRANKSHAFT@PISTON Diagram

RING SET, PISTON (STD)

13011-MFJ-D00

$43.75

RING SET, PISTON (0.25) | (Optional).

13021-MFJ-D00

$51.33

PISTON (STD)

13101-MFJ-A40

$115.67

PISTON (0.25) | (Optional).

13102-MFJ-A40

$122.70

PIN, PISTON

13111-MFJ-A40

$20.34

CLIP, PISTON PIN (15MM)

13112-MFJ-D00

$2.61

ROD ASSY., CONNECTING

13210-MFJ-D00

$202.43

BOLT, CONNECTING ROD

13213-MEE-003

$6.12

BEARING A, CONNECTING ROD (BROWN)

13224-MFJ-D01

$11.87

BEARING B, CONNECTING ROD (GREEN)

13225-MFJ-D01

$11.87

BEARING C, CONNECTING ROD (YELLOW)

13226-MFJ-D01

$11.87

CRANKSHAFT

13310-MFJ-D01

$1,028.44

BEARING A, CRANKSHAFT (BLACK)

13313-MFJ-D01

$11.08

BEARING B, CRANKSHAFT (BROWN)

13314-MFJ-D01

$11.08

BEARING C, CRANKSHAFT (GREEN)

13315-MFJ-D01

$11.75

BEARING D, CRANKSHAFT (YELLOW)

13316-MFJ-D01

$11.08

BEARING E, CRANKSHAFT (PINK)

13317-MFJ-D01

$11.08

SPROCKET, TIMING (17T)

14312-MEL-000

$34.31

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
