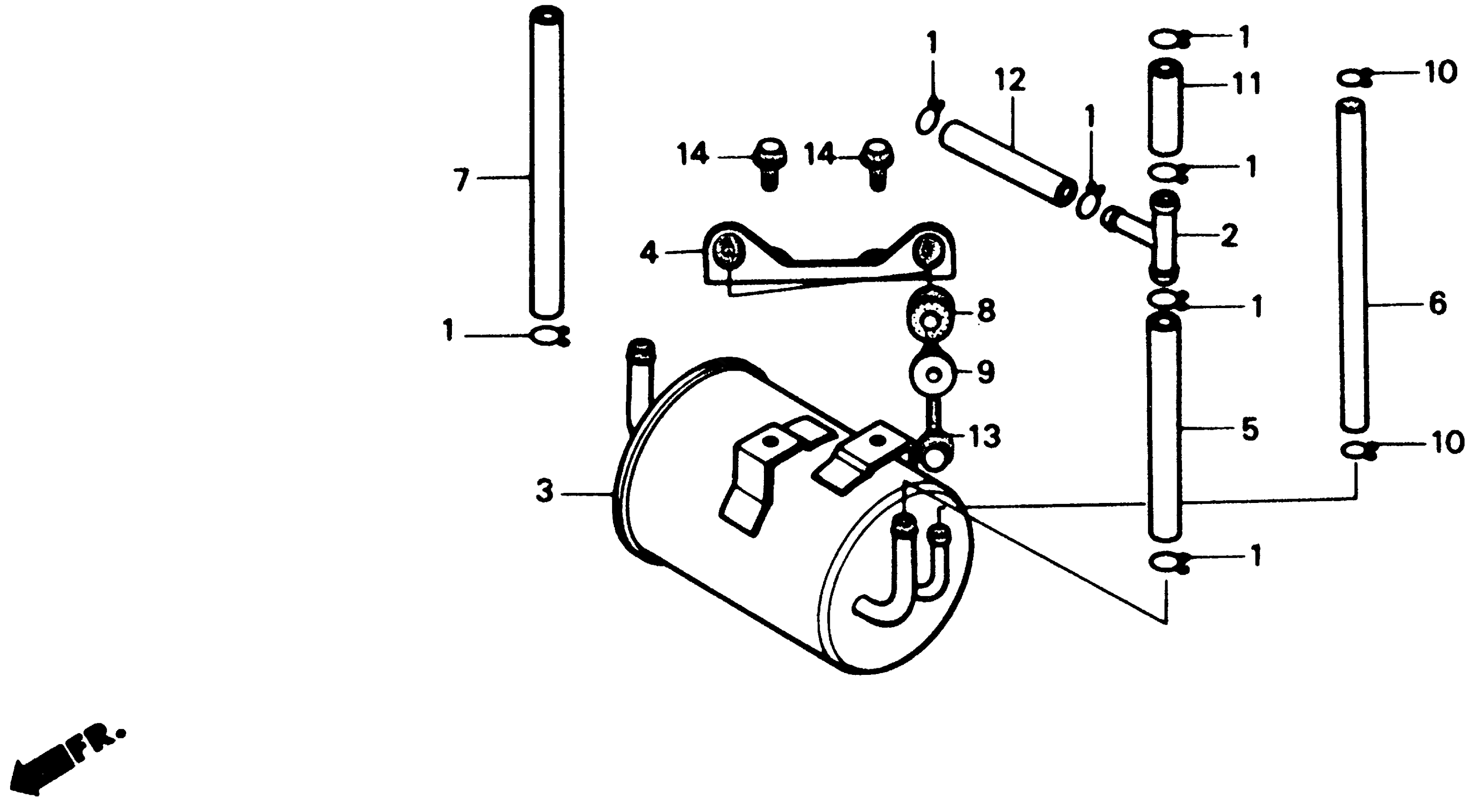

Honda CBR600FAC (89) HURRICANE 600, JPN, VIN# JH2PC191-KM200001 TO JH2PC191-KM201434 CANISTER (AC) Diagram

#

Description
Price

1

CLIP, PURGE CONTROL VALVE TUBE

15772-MB3-000

Unavailable

2

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

3

CANISTER (NOT AVAILABLE)

17410-MN4-741

Unavailable

4

BRACKET, CANISTER (NOT AVAILABLE)

17415-MN4-740

Unavailable

5

TUBE, CANISTER (THREE-WAY) (NOT AVAILABLE)

17421-MN4-740

Unavailable

6

TUBE, TANK CANISTER (NOT AVAILABLE)

17422-MN4-740

Unavailable

7

TUBE, AIR (NOT AVAILABLE)

17423-MN4-740

Unavailable

8

RUBBER, CANISTER MOUNTING

19051-MB4-880

$3.13

9

COLLAR, CANISTER MOUNTING

19052-MB4-880

$3.69

10

CLIP, TUBE (B8)

95002-02080

$1.80

11

BULK HOSE, VACUUM (8X8000) (8X50)

95005-80008-10M

Unavailable

12

BULK HOSE, VACUUM (8X8000) (8X100)

95005-80008-10M

Unavailable

13

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

13

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

14

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
