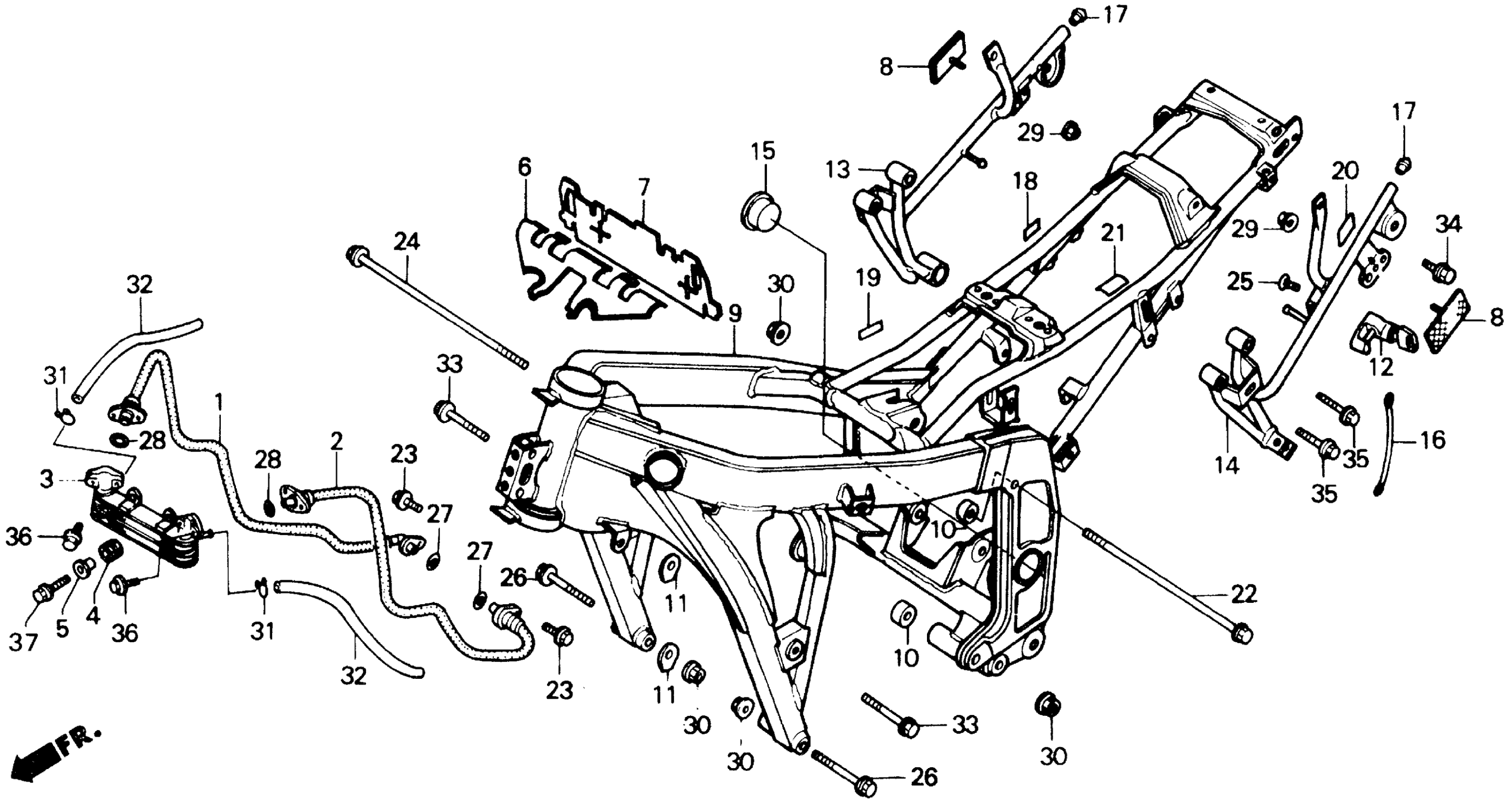

Honda CBR600FAC (87) HURRICANE 600, JPN, VIN# JH2PC191-HM000002 TO JH2PC191-HM002523 FRAME Diagram

#

Description
Price

1

PIPE, R. OIL (NOT AVAILABLE)

15510-KT8-710

Unavailable

2

PIPE, L. OIL (NOT AVAILABLE)

15515-KT8-710

Unavailable

3

COOLER, OIL (TOYO) (NOT AVAILABLE)

15600-ML0-701

Unavailable

4

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

5

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA3-830.

19052-MAC-680

$5.14

5

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

6

GUARD A, HEAT (NOT AVAILABLE)

19125-MN4-000

Unavailable

7

GUARD B, HEAT (NOT AVAILABLE)

19126-MN4-000

Unavailable

8

REFLECTOR, REFLEX

33741-MC7-612

$14.43

9

FRAME (NOT AVAILABLE)

50100-MN4-740

Unavailable

10

COLLAR, RR. ENGINE HANGER

50355-KT8-000

Unavailable

11

COLLAR, FR. ENGINE HANGER (NOT AVAILABLE)

50358-MN4-000

Unavailable

12

HOLDER ASSY., HELMET (HONDALOCK)

50710-GB4-007

$74.08

13

HOLDER, R. PILLION STEP (NOT AVAILABLE)

50750-MN4-000

Unavailable

14

HOLDER, L. PILLION STEP (NOT AVAILABLE)

50760-MN4-000

Unavailable

15

CAP, CROSSMEMBER SIDE

52161-051-000

$2.33

16

WIRE, HELMET SETTING

77236-KM4-000

$11.97

17

CAP, RR. BUMPER

84103-443-611

$4.23

19

LABEL, RESERVE TANK (NOT AVAILABLE)

87507-MB4-670

Unavailable

20

LABEL, HELMET HOLDER

87511-323-670

$2.72

22

BOLT, FLANGE (10X291) (SOURCE: VINTAGE PARTS INC.)

90100-KM4-000

Unavailable

23

BOLT, FLANGE (8X22) This part replaces 90103-MJ1-000.

90103-MJ1-010

$1.93

23

BOLT, FLANGE (8X22)

90103-MJ1-010

$1.93

24

BOLT, ENGINE HANGER (UPPER) (NOT AVAILABLE)

90106-MN4-000

Unavailable

25

BOLT, SPECIAL (6X10)

90107-KM9-000

$3.02

26

BOLT, FLANGE (10X85) | Use up to Frame SN HM001647 This part replaces 90108-KE5-000.

90111-KL8-710

Unavailable

26

BOLT, FLANGE (10X85) (NOT AVAILABLE) | Use from Frame SN HM001648

95801-10085-00

Unavailable

27

O-RING (11.1X3.5)

91255-MJ1-000

$2.92

28

O-RING (10X2.6) (ARAI)

91314-ME5-003

$3.54

29

NUT, FLANGE (5MM)

94050-05000

$1.49

30

NUT, FLANGE (10MM)

94050-10000

$1.59

31

CLIP, TUBE (C11)

95002-70000

$1.56

32

BULK HOSE, VINYL (7X11X8000) (7X11X120)

95003-19008-60M

Unavailable

33

BOLT, FLANGE (10X60) This part replaces 95700-10060-00.

95701-10060-00

$2.03

33

BOLT, FLANGE (10X60)

95701-10060-00

$2.03

34

BOLT, FLANGE (8X14)

95800-08014-00

$1.49

34

BOLT, FLANGE (8X14)

95900-08014-00

Unavailable

34

BOLT, FLANGE (8X14) This part replaces 95801-08014-00.

95701-08014-00

$1.49

34

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

35

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

35

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

35

BOLT, FLANGE (8X35) This part replaces 95900-08035-00.

95701-08035-00

$2.30

36

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

36

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

37

BOLT, FLANGE (6X22) | Use from Frame SN HM001648 This part replaces 96000-06022-00.

96001-06022-00

$1.49

37

BOLT, FLANGE (6X25) | Use up to Frame SN HM001647 This part replaces 96000-06025-07.

96001-06025-07

$1.49

37

BOLT, FLANGE (6X22) | Use from Frame SN HM001648

96001-06022-00

$1.49

37

BOLT, FLANGE (6X25) | Use up to Frame SN HM001647

96001-06025-07

$1.49
