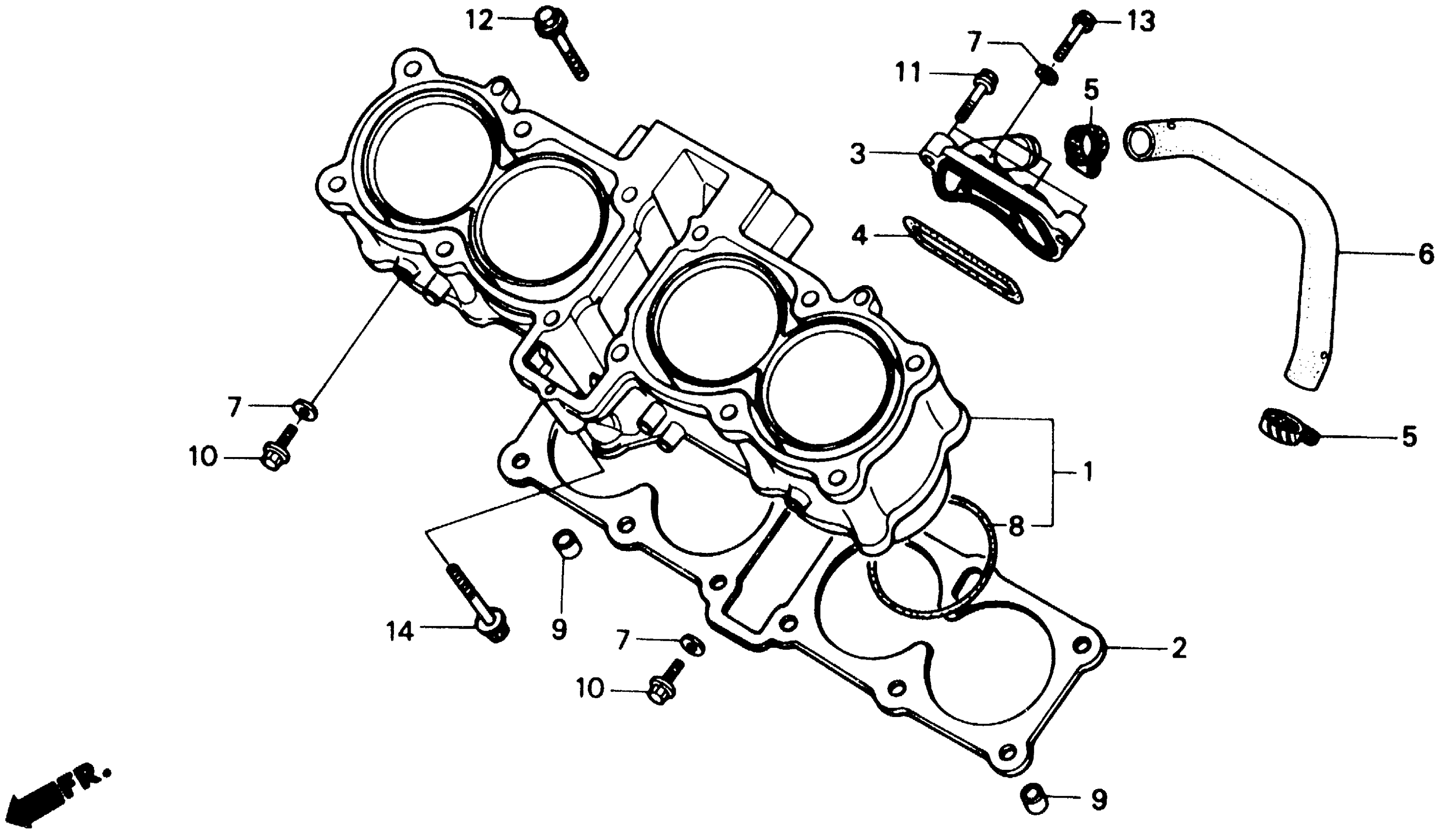

Honda CBR600FAC (87) HURRICANE 600, JPN, VIN# JH2PC191-HM000002 TO JH2PC191-HM002523 CYLINDER Diagram

CYLINDER (NOT AVAILABLE)

12100-MN4-740

Unavailable

GASKET, CYLINDER (NIPPON LEAKLESS) (NOT AVAILABLE)

12191-MN4-004

Unavailable

JOINT, WATER HOSE (NOT AVAILABLE)

19063-MN4-000

Unavailable

GASKET, WATER JOINT (ARAI) (NOT AVAILABLE)

19064-MN4-003

Unavailable

CLAMP, WATER HOSE

19503-MB1-870

$12.56

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$12.56

HOSE A, WATER (NOT AVAILABLE)

19525-MN4-000

Unavailable

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (68X2) (NOT AVAILABLE) This part replaces 91304-MN4-003.

91304-MN4-004

Unavailable

PIN, DOWEL (12X20)

94301-12200

$2.29

PIN, DOWEL (12X20) | Use up to Engine SN 2007089

94304-12200

Unavailable

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
