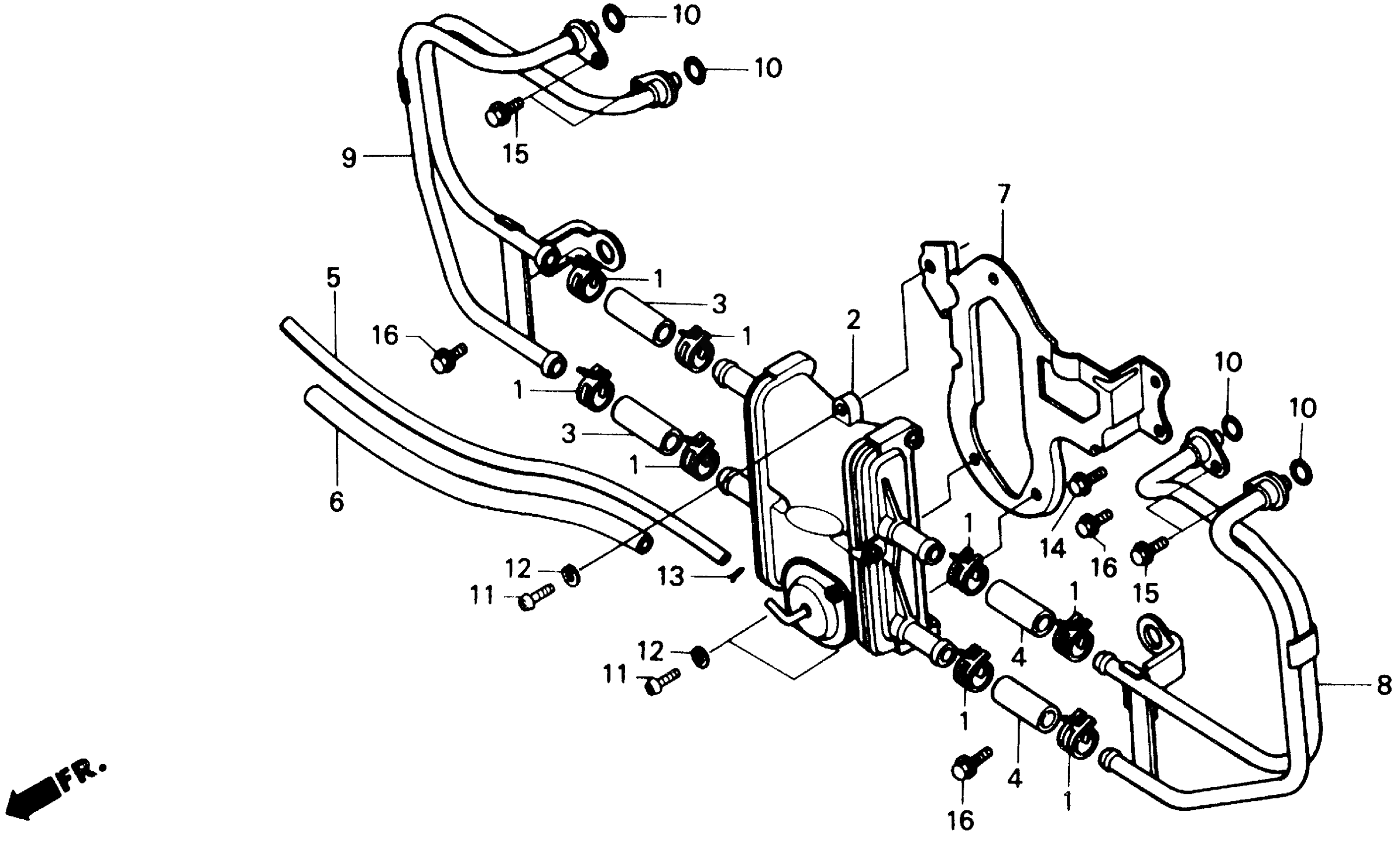

Honda CBR600FAC (87) HURRICANE 600, JPN, VIN# JH2PC191-HM000002 TO JH2PC191-HM002523 AIR SUCTION VALVE (AC) Diagram

#

Description
Price

1

CLIP B, FUEL HOSE

16968-MC7-000

$6.89

2

VALVE ASSY., AIR SUCTION (NOT AVAILABLE)

18600-MN4-741

Unavailable

3

TUBE, R. AIR PIPE (NOT AVAILABLE) | Use from Engine SN 2004057

18610-MN4-740

Unavailable

3

TUBE, R. AIR PIPE (NOT AVAILABLE) | Use up to Engine SN 2004056 This part replaces 18614-MN4-740.

18610-MN4-740

Unavailable

4

TUBE, L. AIR PIPE (NOT AVAILABLE) | Use up to Engine SN 2004056 This part replaces 18615-MN4-740.

18620-MN4-740

Unavailable

4

TUBE, L. AIR PIPE (NOT AVAILABLE) | Use from Engine SN 2004057

18620-MN4-740

Unavailable

5

TUBE, AIR (NOT AVAILABLE)

18616-MN4-740

Unavailable

7

BRACKET, AIR SUCTION VALVE (NOT AVAILABLE)

18625-MN4-740

Unavailable

8

PIPE, L. AIR (NOT AVAILABLE) This part replaces 18641-MN4-740.

18641-MN4-742

Unavailable

9

PIPE, R. AIR (NOT AVAILABLE)

18642-MN4-740

Unavailable

10

O-RING (9.8X1.9)

91305-PE2-003

$2.45

11

SCREW, PAN (5X16)

93500-05016-0A

$1.49

12

WASHER, SPRING (5MM)

94111-05000

$1.49

13

CLIP, TUBE (B6.5)

95002-02650

$1.49

14

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

15

BOLT, FLANGE (6X16)

95701-06016-02

$1.49

16

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
