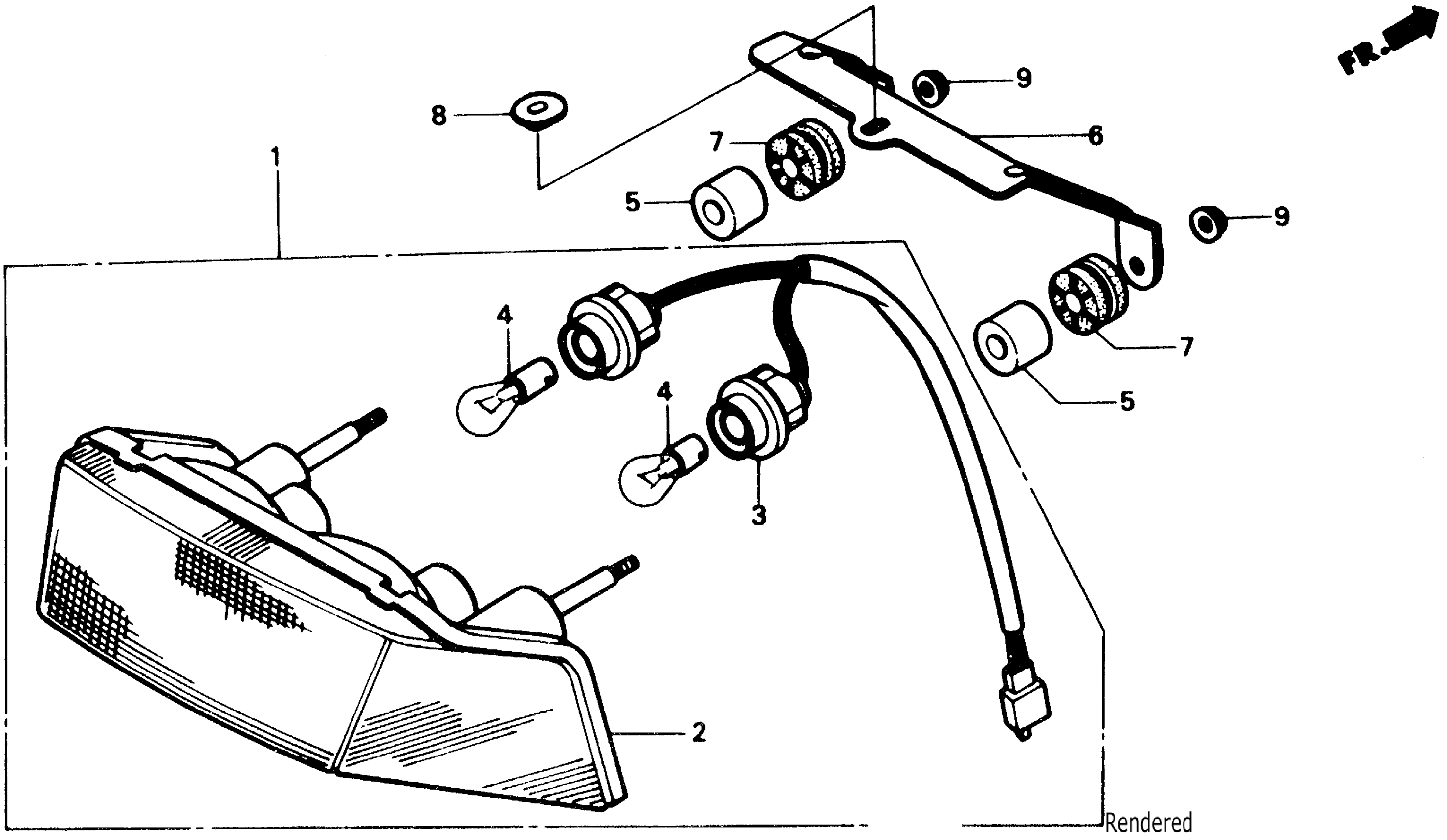

Honda CBR600FA (90) HURRICANE 600, JPN, VIN# JH2PC230-LM000004 TO JH2PC230-LM003202 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT (SOURCE: VINTAGE PARTS INC.)

33701-MN4-671

Unavailable

2

TAILLIGHT SUB-ASSY. (NOT AVAILABLE)

33706-MN4-671

Unavailable

3

SOCKET, TAILLIGHT (NOT AVAILABLE)

33708-MN4-003

Unavailable

4

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.09

5

BUSH, DUMMY (SOURCE: VINTAGE PARTS INC.)

52109-GF8-000

Unavailable

6

STAY, SEAT COWL (NOT AVAILABLE)

64505-MN4-000

Unavailable

7

CUSHION, TAILLIGHT

80112-MA6-000

$3.66

8

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

9

NUT, FLANGE (6MM)

94050-06000

$0.59
