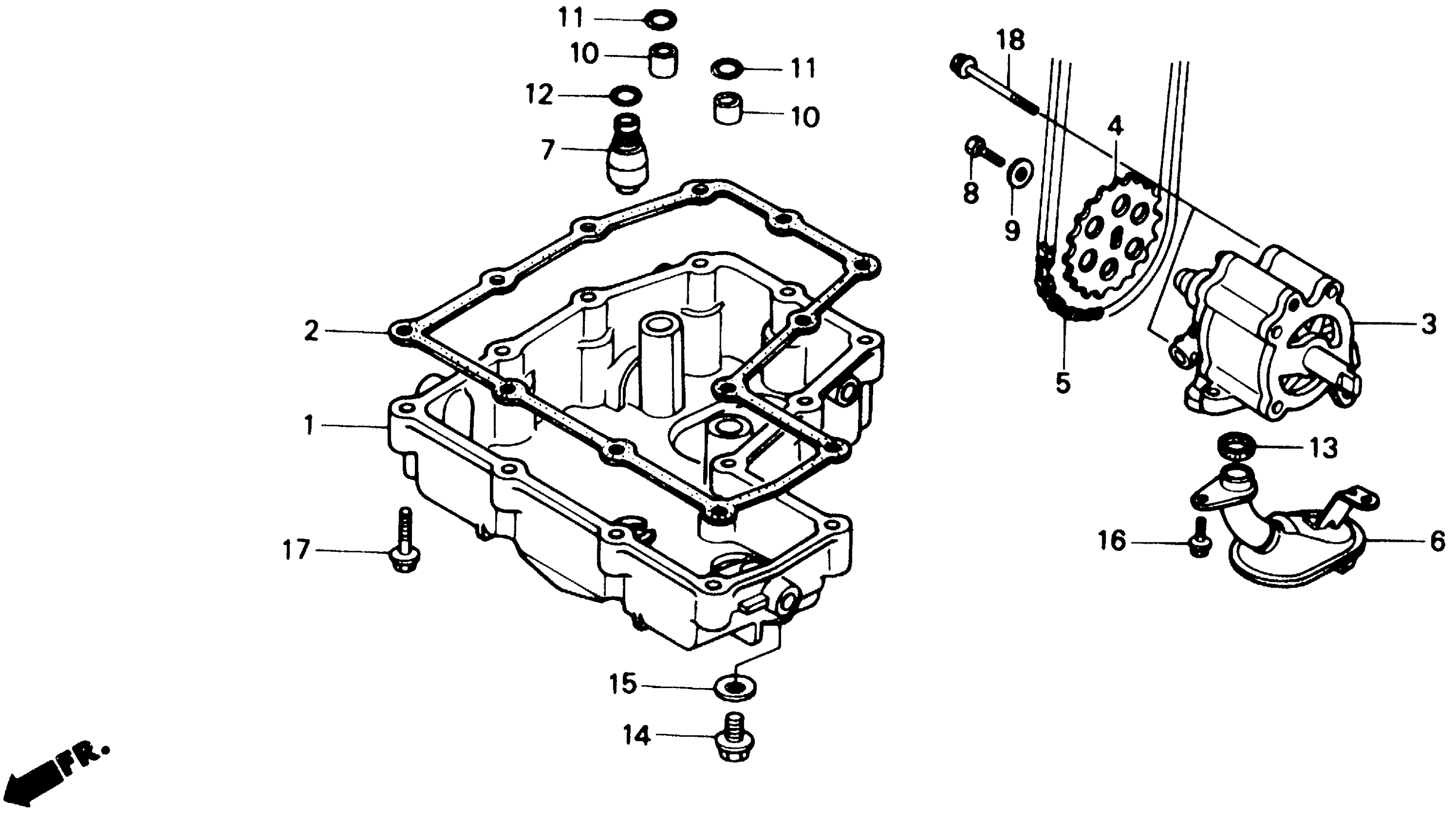

Honda CBR600FA (89) HURRICANE 600, JPN, VIN# JH2PC190-KM200001 TO JH2PC190-KM204860 OIL PUMP Diagram

PAN, OIL This part replaces 11210-MN4-000.

11210-MN4-010

Unavailable

GASKET, OIL PAN This part replaces 11398-MN4-000.

11398-MN4-920

Unavailable

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MN4-000

Unavailable

SPROCKET, OIL PUMP DRIVEN (23T) (NOT AVAILABLE)

15134-KT8-000

Unavailable

CHAIN, OIL PUMP DRIVE (25H-62) (NOT AVAILABLE)

15141-KT8-003

Unavailable

STRAINER, OIL (NOT AVAILABLE)

15153-KT8-000

Unavailable

VALVE ASSY., RELIEF (NOT AVAILABLE)

15220-KT8-000

Unavailable

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

WASHER (6X2.3)

90488-MB0-000

$4.37

PIN, GUIDE (11.5X9) (NOT AVAILABLE) PIN, GUIDE (13X8.5)

91106-MA6-000

Unavailable

O-RING (13X3.0)

91302-MB6-830

$1.95

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

O-RING (17X3) (ARAI) (NOT AVAILABLE)

91315-KT8-003

Unavailable

O-RING (17X3) (ARAI) (NOT AVAILABLE) This part replaces 91315-KT8-004.

91315-KT8-003

Unavailable

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X85)

95701-06085-00

$1.64
