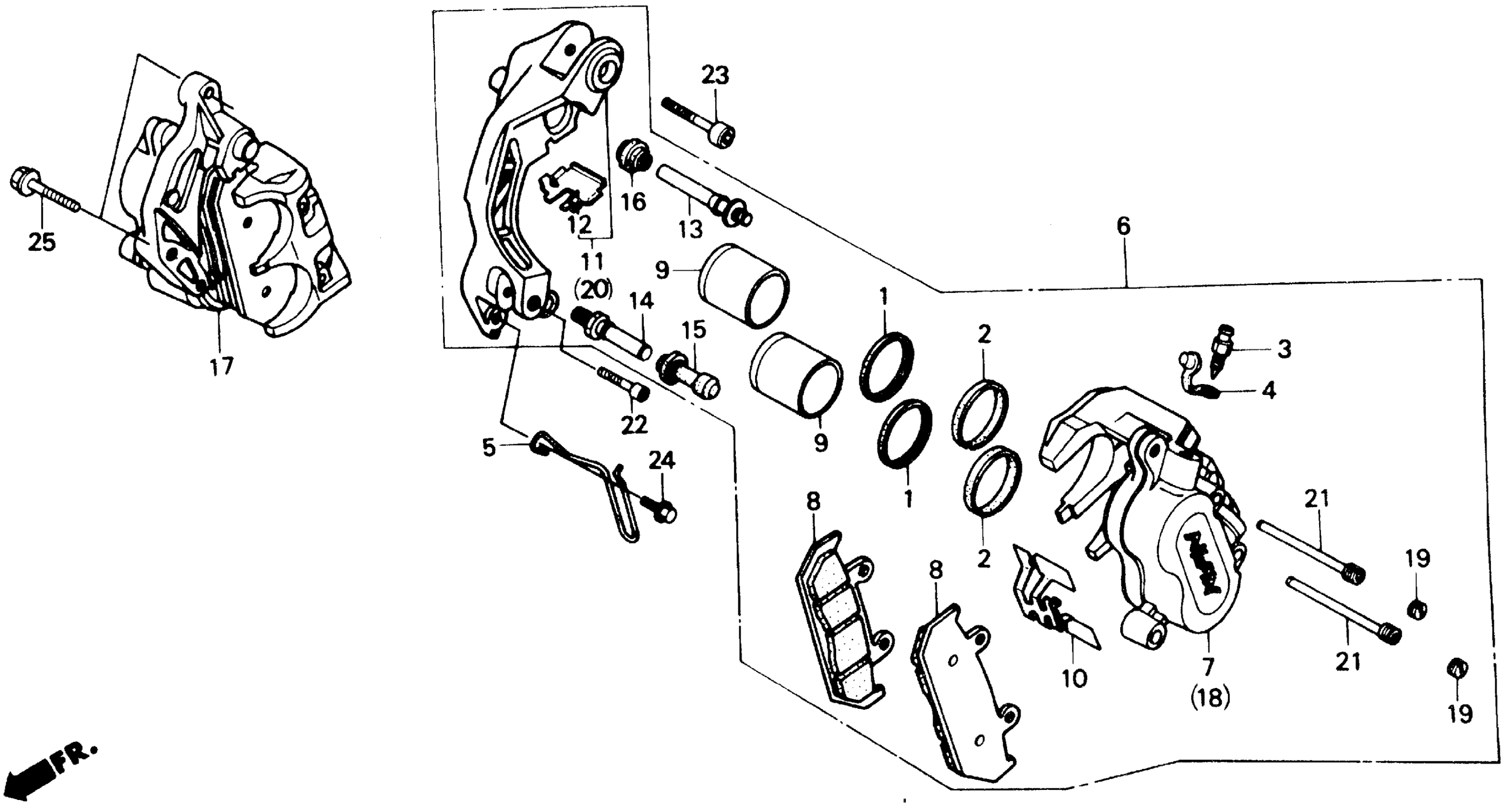

Honda CBR600FA (89) HURRICANE 600, JPN, VIN# JH2PC190-KM200001 TO JH2PC190-KM204860 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT (SOURCE: VINTAGE PARTS INC.)

451A0-MN4-670

Unavailable

1

DUST SEAL

43109-MA3-006

$5.73

2

SEAL, PISTON

43209-MA3-006

$7.04

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

6

CALIPER ASSY., L. FR. (NISSIN) (NOT AVAILABLE)

45100-MN4-831

Unavailable

7

BODY, L. CALIPER (NOT AVAILABLE)

45101-KT8-006

Unavailable

8

PAD, FR. (SEE KIT P/N--END OF BLOCK) (SOURCE: VINTAGE PARTS INC.) This part replaces 45105-MN4-007.

45105-MN4-008

$33.05

8

PAD, FR. (SEE KIT P/N--END OF BLOCK) (SOURCE: VINTAGE PARTS INC.)

45105-MN4-008

$33.05

9

PISTON This part replaces 45107-MN4-006.

45107-MN4-016

$35.53

9

PISTON

45107-MN4-016

$35.53

10

SPRING, PAD

45108-ML4-006

$10.84

11

BRACKET, L. (NISSIN) (NOT AVAILABLE)

45110-MN4-831

Unavailable

12

RETAINER

45112-MG3-006

$7.27

13

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$15.44

13

BOLT A, PIN

45131-HA5-672

$15.44

14

BOLT, PIN

45131-166-016

$7.63

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

16

BOOT B

45133-MA3-006

$5.46

17

CALIPER ASSY., R. FR. (NISSIN) (NOT AVAILABLE)

45200-MN4-831

Unavailable

18

BODY, R. CALIPER (NOT AVAILABLE)

45201-KT8-006

Unavailable

19

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

19

PLUG, PIN

45203-MG3-016

$5.12

20

BRACKET, R. (NISSIN) (NOT AVAILABLE)

45210-ML4-006

Unavailable

21

PIN, HANGER This part replaces 45215-KA3-731.

45215-KA3-732

$11.52

21

PIN, HANGER

45215-KA3-732

$11.52

22

BOLT, SOCKET (6X25)

90105-MJ1-000

$6.31

23

BOLT, SOCKET (8X36)

90131-ML7-000

$5.44

24

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

24

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

25

BOLT, FLANGE (8X32)

96400-08032-07

$1.79
