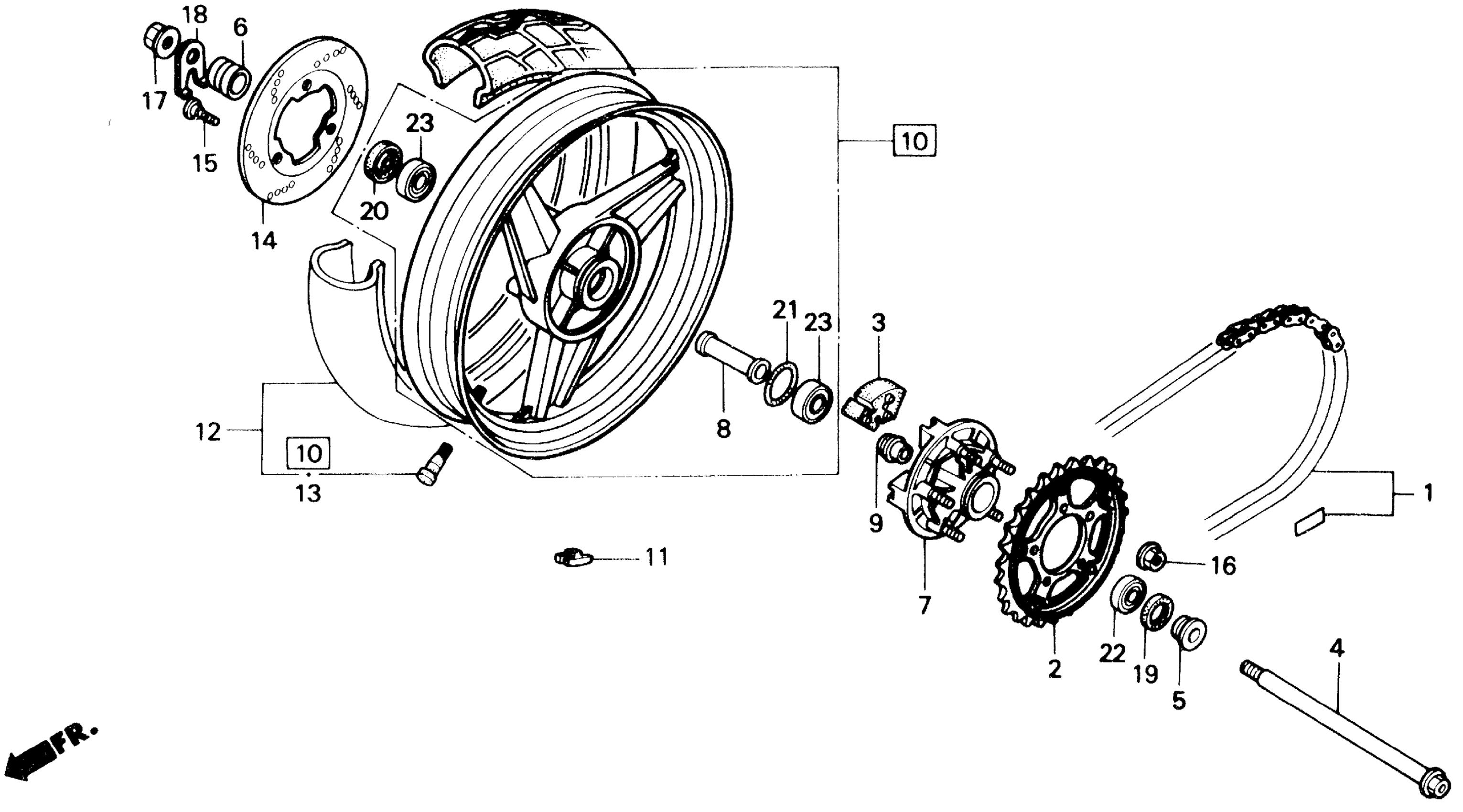

Honda CBR600FA (88) HURRICANE 600, JPN, VIN# JH2PC190-JM100004 TO JH2PC190-JM105415 REAR WHEEL Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK50MFO-Z1 110L) (TAKASAGO) (NOT AVAILABLE)

405A3-MN4-005

Unavailable

2

SPROCKET, FINAL DRIVEN (44T) (NOT AVAILABLE)

41200-MN4-000

Unavailable

3

DAMPER, RR. WHEEL

41241-KT8-000

$14.01

4

AXLE, RR. WHEEL This part replaces 42301-MJ8-000.

42301-MR3-920

Unavailable

5

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-KT8-000

$17.14

6

COLLAR, RR. BRAKE SIDE (NOT AVAILABLE)

42313-MJ6-000

Unavailable

7

FLANGE ASSY., DRIVEN (NOT AVAILABLE)

42610-MN4-000

Unavailable

8

COLLAR, RR. WHEEL DISTANCE (A) (NOT AVAILABLE) This part replaces 42620-KT8-000.

42620-MT6-830

Unavailable

9

COLLAR B, RR. WHEEL DISTANCE

42625-KT8-000

Unavailable

10

WHEEL SET, RR. *R134* (FIGHTING RED) (NOT AVAILABLE)

42650-MN4-305ZB

Unavailable

11

WEIGHT, BALANCE (10G) (NOT AVAILABLE)

42704-KT7-000

Unavailable

11

WEIGHT, BALANCE (20G) (NOT AVAILABLE)

42705-KT7-000

Unavailable

11

WEIGHT, BALANCE (30G) (SOURCE: VINTAGE PARTS INC.)

42706-KT7-000

Unavailable

12

TIRE (130/80V17) This part replaces 42710-MN4-003.

42711-MN4-004

Unavailable

12

TIRE (130/80V17) This part replaces 42710-MN4-004.

42711-MN4-004

Unavailable

13

VALVE, RIM (BS)

42753-ML7-003

$11.44

13

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

14

DISK, RR. BRAKE This part replaces 43351-KT8-000.

43351-KM4-000

Unavailable

15

BOLT, FR. DISK (8X24)

90105-KR3-000

$5.64

16

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

17

NUT, AXLE (16MM)

90305-KE8-003

$7.76

18

WASHER, RR. AXLE

90559-KV0-000

$10.48

19

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.49

19

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.49

19

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.49

20

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$10.89

20

DUST SEAL (30X47X8) (NOK)

91253-443-762

$10.89

21

O-RING (61X2)

91302-MA6-003

$4.81

22

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$16.56

23

BEARING, RADIAL BALL (6303UU) BEARING, RADIAL BALL (6303)

96150-63030-10

$24.99
