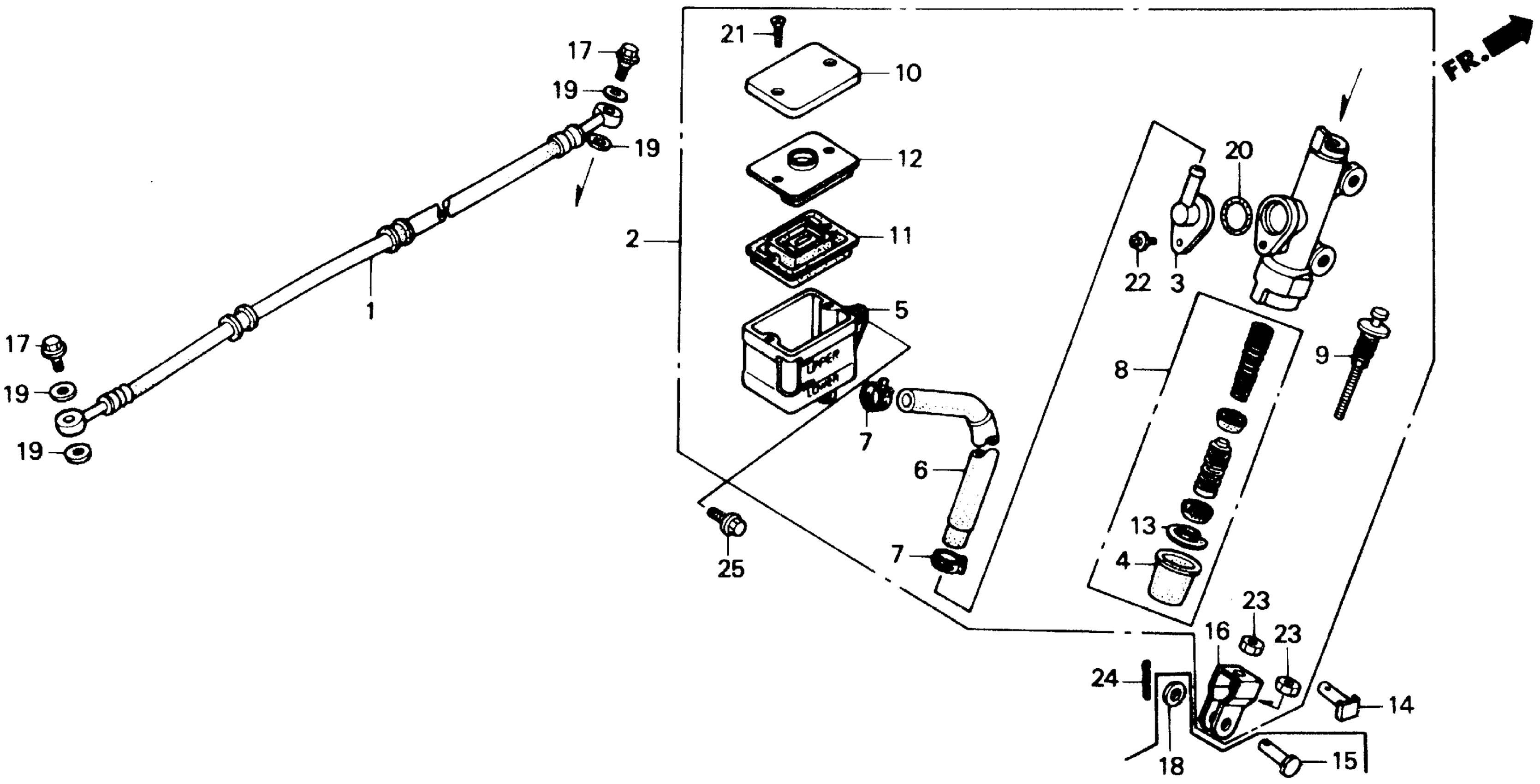

Honda CBR600FA (88) HURRICANE 600, JPN, VIN# JH2PC190-JM100004 TO JH2PC190-JM105415 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NOT AVAILABLE) This part replaces 43310-MN4-003.

43310-MT6-871

Unavailable

MASTER CYLINDER ASSY., RR. (NISSIN) (NOT AVAILABLE)

43500-MN4-006

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

BOOT

43504-MB2-006

$10.04

CUP, OIL

43511-KT8-006

$35.77

HOSE, MASTER CYLINDER OIL

43512-KT8-006

$20.23

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

ROD, PUSH

43530-MN4-006

Unavailable

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-500-013

$4.90

PIN, BRAKE ROD

46503-371-000

Unavailable

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-MB2-006

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

WASHER (7X12)

90501-310-000

$1.74

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
