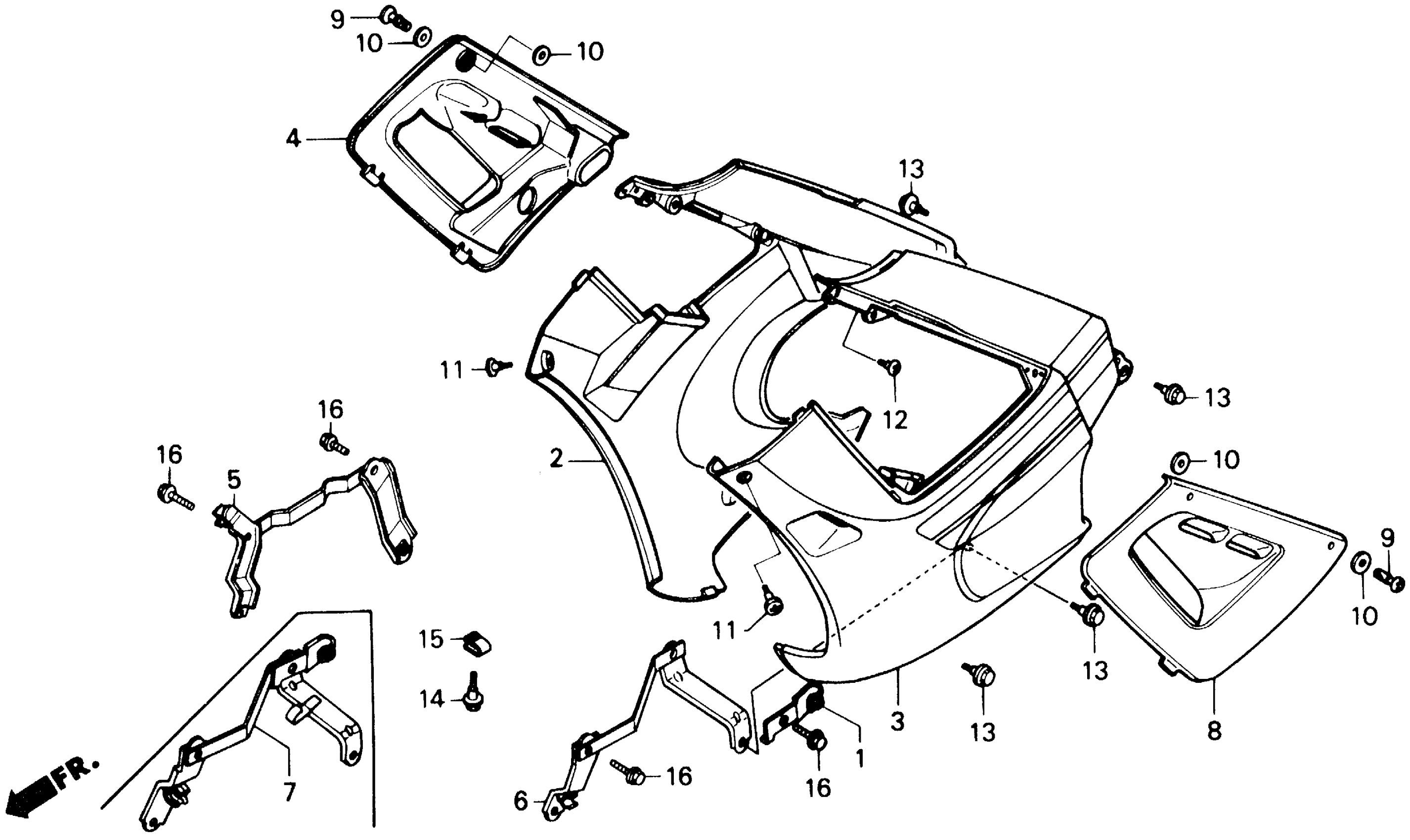

Honda CBR600FA (88) HURRICANE 600, JPN, VIN# JH2PC190-JM100004 TO JH2PC190-JM105415 LOWER COWL Diagram

#

Description
Price

2

COWL SET, R. (LOWER) *R134* (WL) (FIGHTING RED) (NOT AVAILABLE) | Fighting red R134;

643A0-MN4-770ZA

Unavailable

2

COWL SET, R. (LOWER) *NH206M* (WL) (MEDIUM GRAY) (NOT AVAILABLE) | Medium gray NH206M;

643A0-MN4-770ZB

Unavailable

3

COWL SET, L. (LOWER) *R134* (WL) (FIGHTING RED) (NOT AVAILABLE) | Fighting red R134;

643A5-MN4-770ZA

Unavailable

3

COWL SET, L. (LOWER) *NH206M* (WL) (MEDIUM GRAY) (NOT AVAILABLE) | Medium gray NH206M;

643A5-MN4-770ZB

Unavailable

4

LID, R. COWL (LOWER) *R134* (FIGHTING RED) (NOT AVAILABLE) | Fighting red R134;

64305-MN4-000ZA

Unavailable

4

LID, R. COWL (LOWER) *NH206M* (MEDIUM GRAY) (NOT AVAILABLE) | Medium gray NH206M;

64305-MN4-000ZE

Unavailable

5

STAY, R. COWL (LOWER) (NOT AVAILABLE) This part replaces 64340-MN4-770.

64340-MT6-600

Unavailable

6

STAY, L. COWL (LOWER) (SOURCE: VINTAGE PARTS INC.) This part replaces 64345-MN4-770.

64345-MT6-600

Unavailable

6

STAY, L. COWL (LOWER) (SOURCE: VINTAGE PARTS INC.) This part replaces 64345-MT6-000.

64345-MT6-600

Unavailable

6

STAY, L. COWL (LOWER) (SOURCE: VINTAGE PARTS INC.)

64345-MT6-600

Unavailable

8

LID, L. COWL (LOWER) *R134* (FIGHTING RED) (NOT AVAILABLE) | Fighting red R134;

64355-MN4-000ZA

Unavailable

8

LID, L. COWL (LOWER) *NH206M* (MEDIUM GRAY) (NOT AVAILABLE) | Medium gray NH206M;

64355-MN4-000ZE

Unavailable

9

STUD (6X14) This part replaces 64507-MN4-000.

64508-ML7-921

$13.52

10

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.46

10

RETAINER (6MM)

64509-KE8-701

$2.46

11

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.78

12

BOLT, FLANGE (6MM)

90111-187-000

$5.59

13

BOLT, FLANGE (6MM)

90111-187-000

$5.59

14

BOLT, SPECIAL (5MM) (SOURCE: VINTAGE PARTS INC.)

90112-MN4-000

Unavailable

15

NUT, FLOATING (5MM)

90306-SA0-000

$9.11

16

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

16

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
