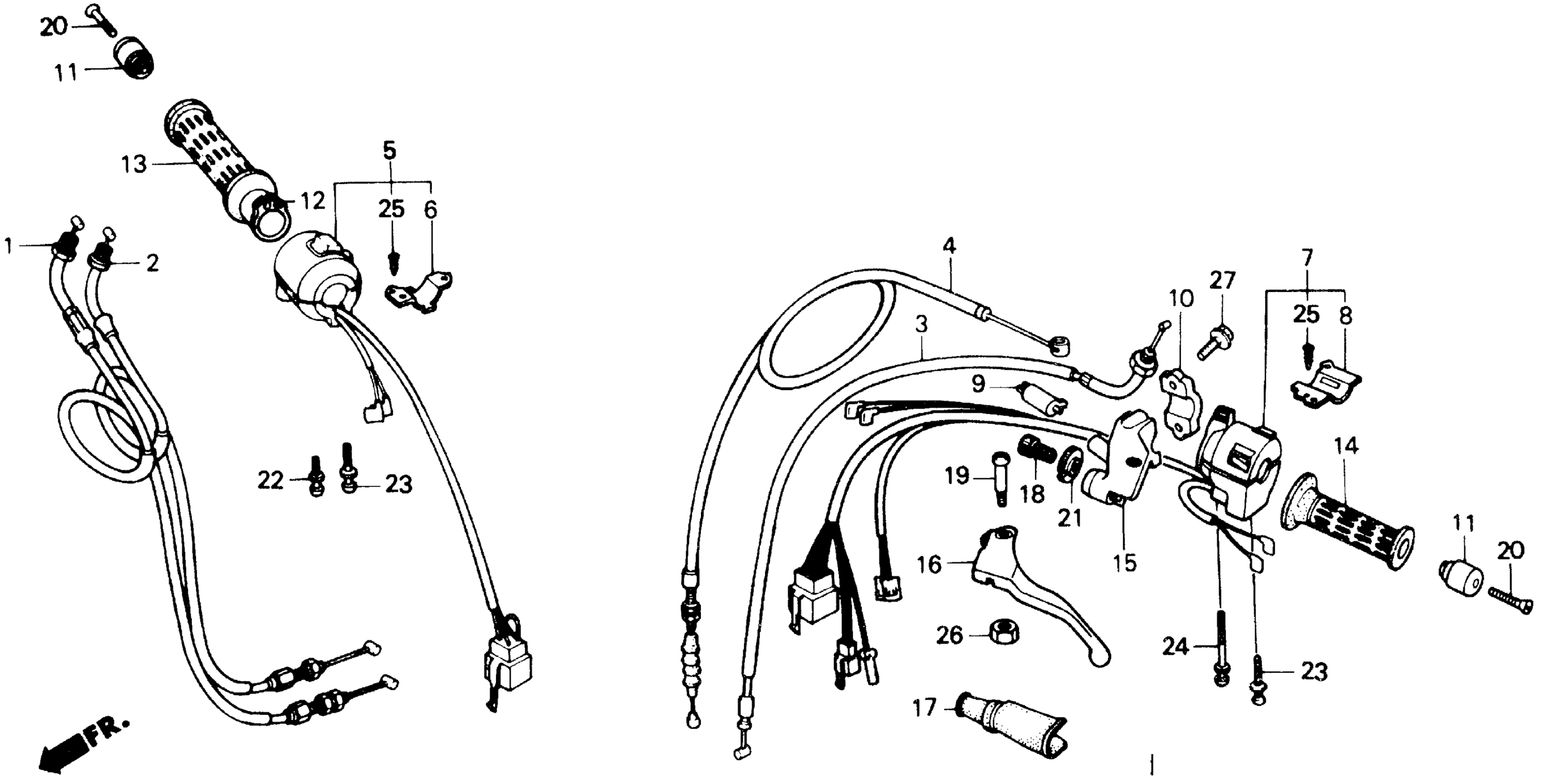

Honda CBR600FA (88) HURRICANE 600, JPN, VIN# JH2PC190-JM100004 TO JH2PC190-JM105415 HANDLE SWITCH Diagram

CABLE A, THROTTLE (NOT AVAILABLE) This part replaces 17910-MN4-000.

17910-MN4-010

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MN4-000

Unavailable

CABLE, CHOKE (NOT AVAILABLE)

17950-MN4-000

Unavailable

CABLE, CLUTCH This part replaces 22870-MN4-000.

22870-MR3-920

Unavailable

SWITCH ASSY., STARTER STOP This part replaces 35130-MN4-670.

35130-MF2-P00

Unavailable

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.61

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-MN4-670.

35200-MT6-670

Unavailable

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.79

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

WEIGHT, HANDLEBAR This part replaces 53105-MN4-000.

53105-MN4-010

$21.73

WEIGHT, HANDLEBAR

53105-MN4-010

$21.73

PIPE, THROTTLE GRIP

53141-ML7-000

$19.15

GRIP, R. HANDLE This part replaces 53165-ML7-000.

53165-ML7-010

$16.09

GRIP, R. HANDLE

53165-ML7-010

$16.09

GRIP, L. HANDLE

53166-ML7-000

$16.09

BRACKET, HANDLEBAR

53172-KT8-710

$34.54

LEVER, L. HANDLE

53178-KV3-000

$20.30

BOOT, HANDLE LEVER

53180-425-010

$18.53

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

SCREW, OVAL (6X50)

90191-MJ0-000

$3.42

NUT, FIXING

90321-MA6-750

$10.45

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X28)

93892-05028-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

SCREW, TAPPING (4X16)

93901-34420

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
